Product Overview of Tablet Press Machine​

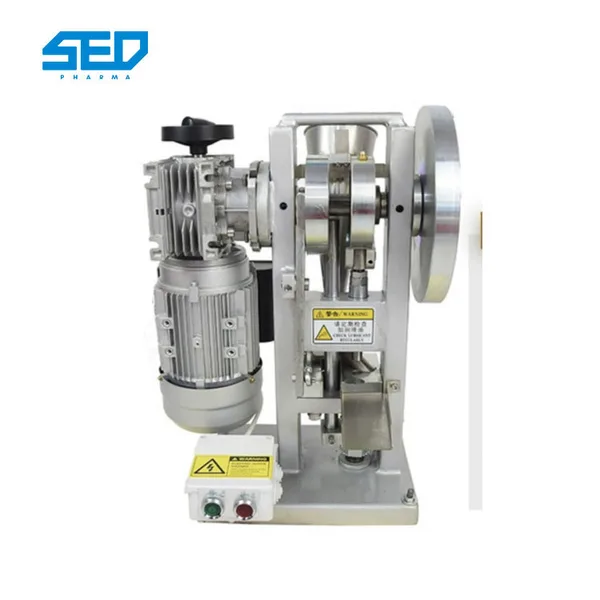

SED-6DY-E Single Punch Tablet Pressing Machine is a special tablet press machine for milk tablets produced by our company. The pressure is high and the output is high. It can press 1 can of milk powder in about 9 minutes, and can press 7 cans of milk powder in 1 hour. The main frame of the machine body is made of steel, which is stronger and will not crack after long-term high-intensity use.

With high pressure, it is easy to press the tablet and is not easy to jam; there are few wearing parts and it is not easy to break down; the machine is light and easy to move. The worm gear rotates with low noise. The part that adjusts the pressure is a new knurled screw, which can be adjusted without a wrench. It is easy to use and easy to adjust. SED-6DY-E is a small desktop electric continuous tablet pressing machine. Only one pair of dies can be installed on the machine. By changing the molds, tablets of different shapes and sizes can be pressed. The filling depth of materials and the thickness of the tablets can be adjusted.



Product Parameters of Tablet Press Machine​

Model	SED-6DY-E
Number of Dies	1
Max. Production Capacity	4000 pcs/h
Max. Diameter of Tablet	20mm
Max. Thickness of Tablet	7mm
Max. Filling Depth	18mm
Max. Pressure	60KN
Motor Power	1.5KW
Weight	85kg
Overall Dimension	500*410*680mm



Working Principle

1. Hopper: After powdered material is fed into the hopper, it falls by gravity from the hopper into the die.

2. Die: The die provides the mold that gives the compressed material the desired shape form. The base of the die is formed by the lower punch, and it is the upper punch that descends onto the loose powder and compresses it.

3. Upper and lower punches: The upper punch provides the compressive force to bind the powder granules into a tablet. The lower punch acts as a base for the die and is raised at the end of the compression phase to eject the tablet from the die.



Product Show of Tablet Press Machine

Rotary tablet press is a new generation product of our factory. It is a continuous and automatic rotary tablet press, which is suitable for pressing tablets of various shapes and ordinary tablets. Mainly used in pharmaceutical, chemical, food and other industries. , plastics, powder, metallurgy and electronics industries.
