Tablet Press Machine
Double Press Automatic Rotary Salt Tablet Press Machine
Product Overview of Tablet Press Machine This machine is a double press automatic rotation for shape-pressing equipment, which have the function of press the grain material or powders to be round or irregular shape tablets, such as candy, calcium tablets double-sides with letter printing and etc. which widely suitable for the Industries of pharmaceutical, Chemical, Foodstuff, Plastic Electronic, Powder Metallurgy and so on. Product Parameters of Tablet Press Machine Stations (unit) 29 Maximum compression (KN) 100 Max. Diameter of tablet to be produced (mm) 25 Max. Fill
| Place of Origin: | China |
|---|---|
| Brand Name: | SED Pharma |
| Certification: | CE |
| Model Number: | SED420-29Y |
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden Case |
| Delivery Time: | 30 Days after receiving the deposit |
| Payment Terms: | T/T,L/C, ,Cash |
| Supply Ability: | 30 Sets Per Month |
Configuration and product details
Technical overview- Name
- Double Press Automatic Rotary Salt Tablet Press Machine
- Capacity
- 87000 Tablets per hour
- Power of the motor
- 4 KW
- Maximum compression
- 100KN
- Max. Diameter of tablet to be produced
- 25mm
- Max. Thickness of tablet
- 17mm
- Rotary speed of the turret
- 20-25rpm
- Weight
- 1950kgs
- Material
- stainless steel
- key word
- Tablet Press Machine
Product Overview of Tablet Press Machine
This machine is a double press automatic rotation for shape-pressing equipment, which have the function of press the grain material or powders to be round or irregular shape tablets, such as candy, calcium tablets double-sides with letter printing and etc.
which widely suitable for the Industries of pharmaceutical, Chemical, Foodstuff, Plastic Electronic, Powder Metallurgy and so on.
Product Parameters of Tablet Press Machine
| Stations (unit) | 29 |
| Maximum compression (KN) | 100 |
| Max. Diameter of tablet to be produced (mm) | 25 |
| Max. Filling depth (mm) | 36 |
| Max. Thickness of tablet (mm) | 17 |
| Power of the motor | 4 kw |
| Weight | 1950kgs |
| Rotary speed of the turret (rpm) | 20-25 |
| Capacity of the tablets | 87000 Tablets per hour |
| Dimension | 1240×980×1650 mm |
Feature of Tablet Press Machine
1. It is adopts the import Frequency Timing with Electromagnetism Clutch.
2. The system of Hydraulic Pressure keep the working pressure under steady, when the pressure over-loading, it will be stopped the machine automatically.
3. Driving system is equipped with oil box and running under oil, easy for heat dissipation and wear-resistance.
4. It is equipped with Dust Collector as well, which avoid the dust emission, and recycle to save dust.

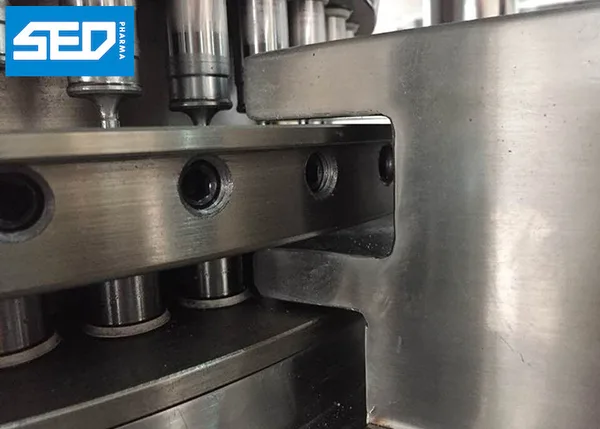

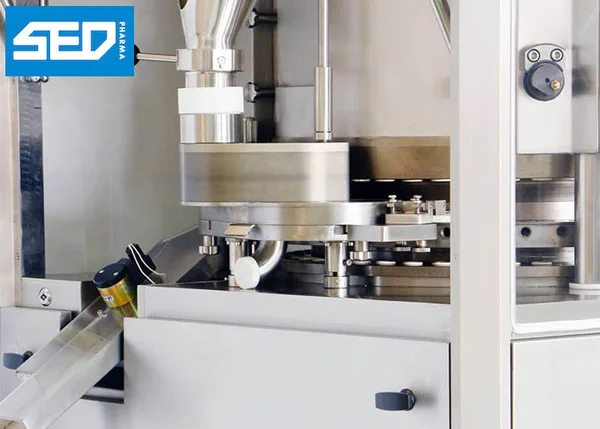

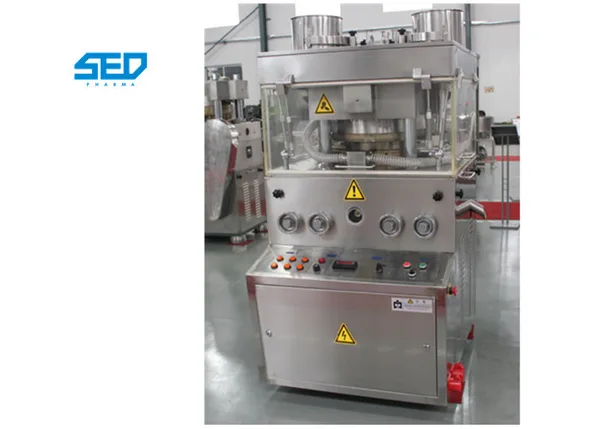

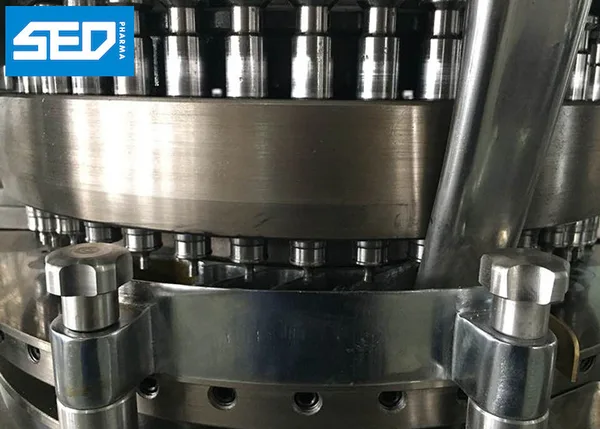

Show of Tablet Press Machine
Application of Tablet Press Machine
