Tablet Press Machine
15 Punch Stations Rotary Tablet Press Machine with 27,000 Tablets Per Hour Capacity and 50mm Max. Tablet Diameter

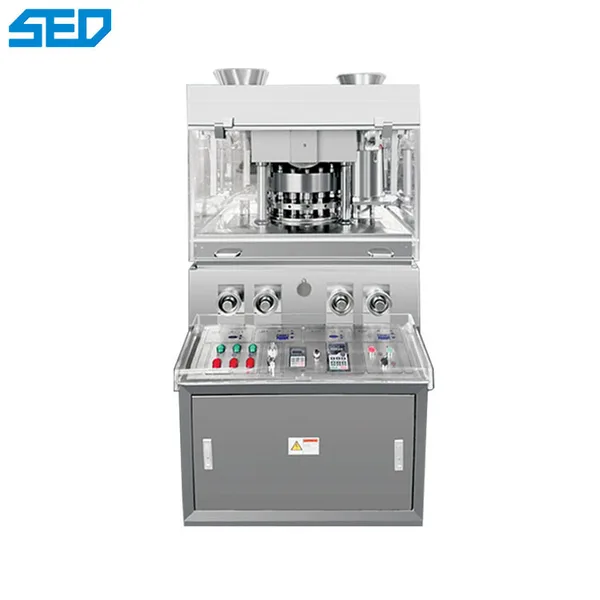

15 Punch Stations Tablet Pressing Machine SED-420-15Y-B Rotary Tablet Press - Product Overview The SED-420-15Y-B is a high-performance, fully automatic double-sided rotary tablet press designed for pharmaceutical, chemical, food, and electronics industries. Featuring a fully enclosed stainless steel structure compliant with GMP standards, it supports the production of various tablet shapes, including irregular, double-layer, and ring-shaped tablets. It is the ideal choice for efficient, clean, and stable output. Product Parameters Model SED-420-15Y-B Stations (unit) 15 Maxi
| Place of Origin: | China |
|---|---|
| Brand Name: | SED Pharma |
| Certification: | CE |
| Model Number: | SED-420-15Y-B |
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden Case |
| Delivery Time: | 30 Days after receiving the deposit |
| Payment Terms: | T/T,L/C,,Cash |
| Supply Ability: | 30 Sets Per Month |
Configuration and product details
Technical overview- Name
- 15 Punch Stations Tablet Pressing Machine
- Station
- 15 Punch Stations
- Capacity for Single Layer Tablet
- 27,000 Tablets Per Hour
- Max. Tablet Diameter
- 50mm
- Max. Filling depth
- 30mm
- Turret Speed
- 10-25rpm
- Weight
- 2100kgs
- material
- stainless steel
- key word
- Tablet Pressing Machine
- Size
- 1300*1500*1850mm
The SED-420-15Y-B is a high-performance, fully automatic double-sided rotary tablet press designed for pharmaceutical, chemical, food, and electronics industries. Featuring a fully enclosed stainless steel structure compliant with GMP standards, it supports the production of various tablet shapes, including irregular, double-layer, and ring-shaped tablets. It is the ideal choice for efficient, clean, and stable output.
| Model | SED-420-15Y-B |
|---|---|
| Stations (unit) | 15 |
| Maximum compression (KN) | 130 |
| Max. Diameter of tablet to be produced (mm) | 50 |
| Max. Filling depth (mm) | 30 |
| Max. Thickness of tablet (mm) | 12-16 |
| Rotary speed of the turret (rpm) | 10-25rpm |
| Capacity of the tablets (max ten thousand tablets/hour) | 27,000 Tablets |
| Overall Dimension | 1300*1500*1850 |
- Fully Enclosed Stainless Steel Structure: Aesthetic appearance, prevents cross-contamination, fully GMP-compliant.
- Transparent Operation: Equipped with a fully openable transparent guard for clear visibility and easy cleaning.
- Variable Speed Control: Adjustable rotation speed from 10-25 rpm to suit different production needs.
- Intelligent Control System: Supports PLC touch screen operation for user-friendly, stable, and safe performance.
- Independent Lubrication System: Sealed transmission system reduces noise and wear, extending service life.
- Built-in Dust Removal: Effectively collects dust generated during compression for a clean working environment.
Industries: Pharmaceutical, Chemical, Food, Electronics, etc.
Tablet Types: Round, irregular, double-layer, ring-shaped, and other complex tablets
