Tablet Press Machine

Rotary Tablet Press Machine with 25mm Max Filling Depth 18mm Max Pressing Diameter and 8mm Max Thickness of Tablet

Name: Rotary Tablet Press Machine with 25mm Max Filling Depth 18mm Max Pressing Diameter and 8mm Max Thickness of Tablet
Brand: SED Pharma

Rotary Salt Tablet Press Machine With Hydraulic Pressing System Performance of Tablet Press Machine The SED-420-27Y-D tablet press machine is an automatic double-sided rotary tablet press designed for pharmaceuticals, chemicals, food, and electronics industries. It features a fully enclosed stainless steel body compliant with GMP standards, capable of producing round, irregular, and double-layer tablets with high efficiency and ease of operation. Main Technical Data of Tablet Press Machine Item SED-420-27Y-D SED-420-29Y-D SED-420-31Y-D Number of Dies 27 29 31 Max. Pressure

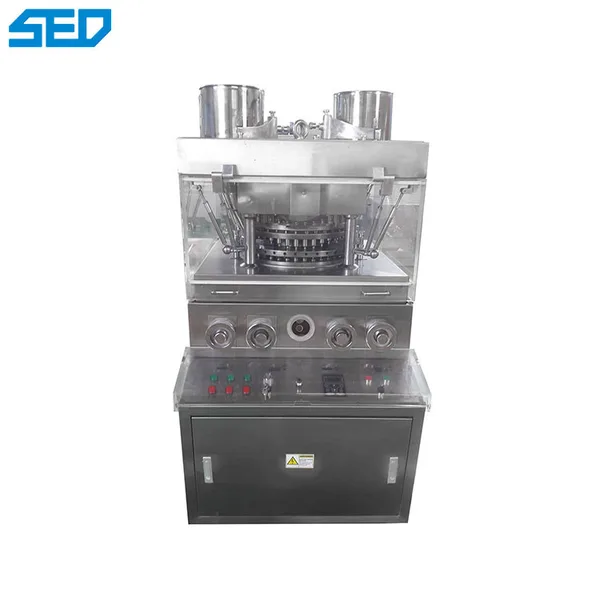

Rotary Tablet Press Machine with 25mm Max Filling Depth 18mm Max Pressing Diameter and 8mm Max Thickness of Tablet, view 1

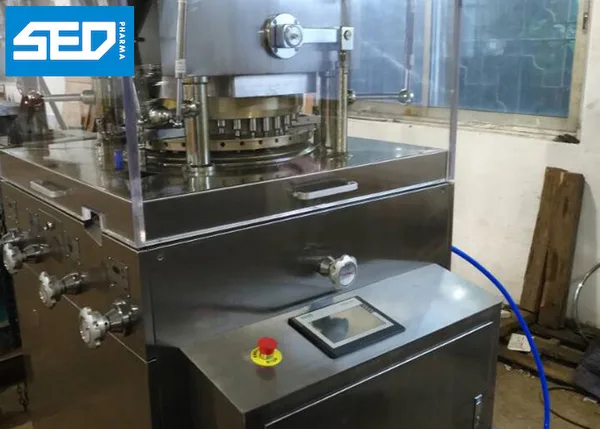

Rotary Tablet Press Machine with 25mm Max Filling Depth 18mm Max Pressing Diameter and 8mm Max Thickness of Tablet, view 2

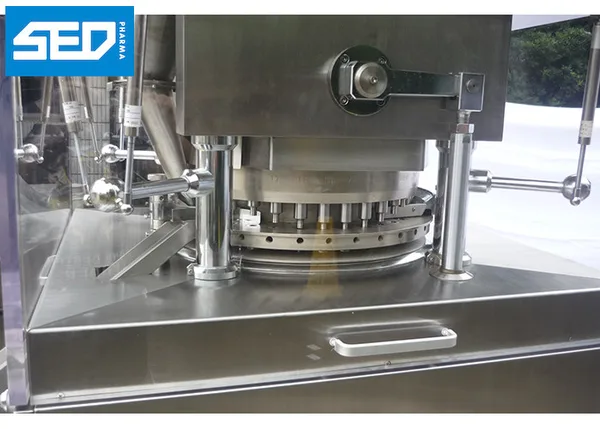

Rotary Tablet Press Machine with 25mm Max Filling Depth 18mm Max Pressing Diameter and 8mm Max Thickness of Tablet, view 3

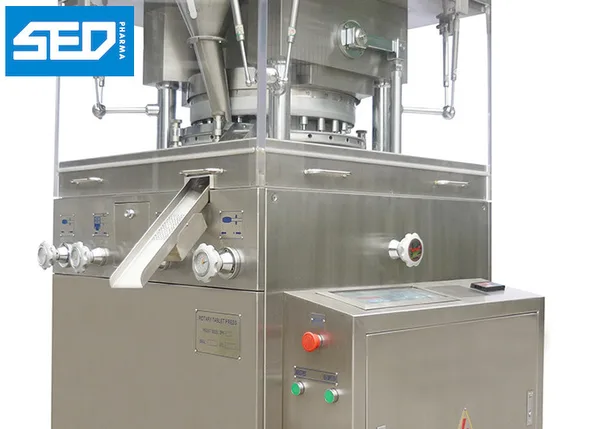

Rotary Tablet Press Machine with 25mm Max Filling Depth 18mm Max Pressing Diameter and 8mm Max Thickness of Tablet, view 4

Product Details:

Place of Origin:	China
Brand Name:	SED Pharma
Certification:	CE
Model Number:	SED-420-27Y-D

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	Negotiable
Packaging Details:	Wooden Case
Delivery Time:	30 Days after receiving the deposit
Payment Terms:	T/T,L/C,,Cash
Supply Ability:	30 Sets Per Month

Request configuration

Configuration and product details

Technical overview

Name: Rotary Salt Tablet Press Machine With Hydraulic Pressing System
Working Capacity: 58000 Pcs Per Hour
Max.Pressure: 80KN
Max.Filling Depth: 25mm
Max.Pressing Diameter: 18mm
Max.Thickness of Tablet: 8mm
Turret Speed: 0-18rpm
Power Supply: 380V 50HZ Three Phase
material: stainless steel
key word: Tablet Press Machine

Rotary Salt Tablet Press Machine With Hydraulic Pressing System

Performance of Tablet Press Machine

The SED-420-27Y-D tablet press machine is an automatic double-sided rotary tablet press designed for pharmaceuticals, chemicals, food, and electronics industries. It features a fully enclosed stainless steel body compliant with GMP standards, capable of producing round, irregular, and double-layer tablets with high efficiency and ease of operation.

Main Technical Data of Tablet Press Machine

Item	SED-420-27Y-D	SED-420-29Y-D	SED-420-31Y-D
Number of Dies	27	29	31
Max. Pressure (kN)	80	80	80
Max. Tablet Diameter (mm)	25	24	22
Max. Fill Depth (mm)	18	15	15
Max. Tablet Thickness (mm)	8	7	6
Turret Speed (rpm)	0-18	0-30	0-30
Production Capacity (pcs/h)	58,000	104,400	111,600
Motor Power (kW)	5.5	3	3
Dimensions (mm)	1230×950×1670	1230×950×1670	1230×950×1670
Net Weight (kg)	1700	1700	1700

Main Features of Tablet Press Machine

Fully Enclosed Stainless Steel Body: 304 stainless steel structure prevents cross-contamination and allows easy cleaning.
Transparent Operation: High-visibility organic glass door enables real-time monitoring and can be fully opened for cleaning.
Variable Speed Control: Turret speed is adjustable from 0 to 18 rpm to match production needs.
Intelligent Control Panel: Equipped with touch keys and a digital display for monitoring speed, output, and operational status.
Sealed Transmission System: Enclosed in an oil tank for effective lubrication, reducing noise and wear.
Built-in Dust Collector: Captures dust during compression for a cleaner working environment.
Double-Layer Tablet Capability: Easily configured for two-layer tablets (note: output is halved in this mode).
