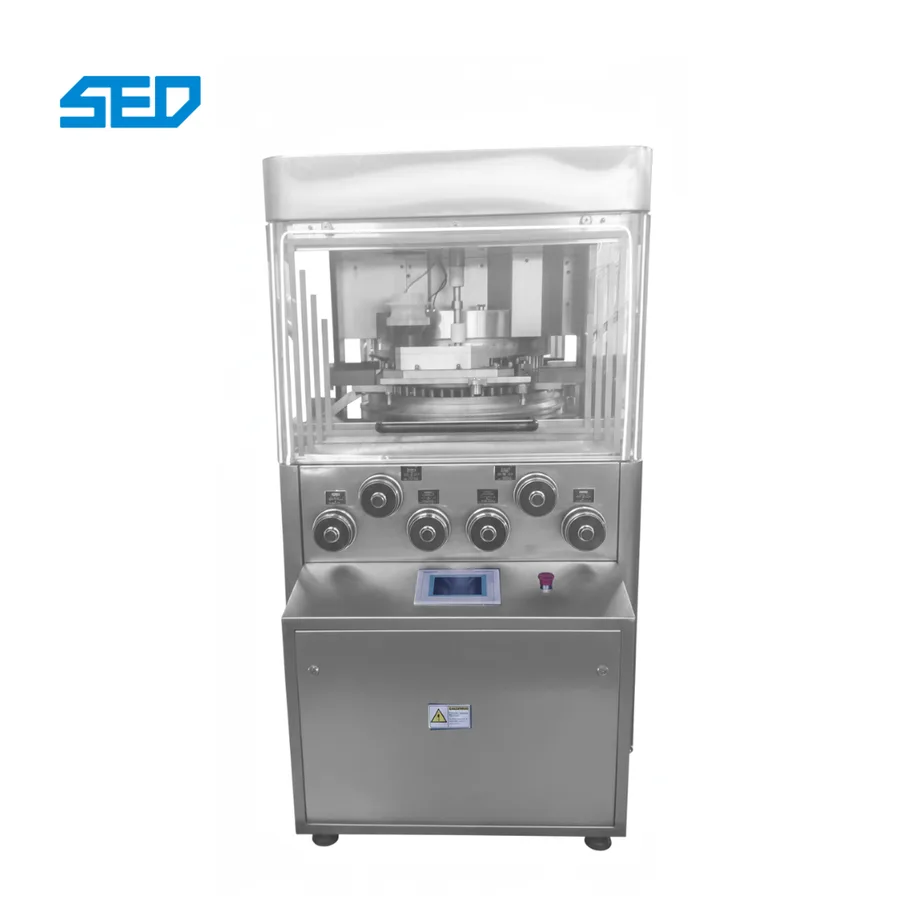

Tablet Press Machine

High-Capacity Rotary Tablet Press Machine with 300,000 Pieces per Hour Output GMP-Compliant and Stainless Steel Construction

Name: High-Capacity Rotary Tablet Press Machine with 300,000 Pieces per Hour Output GMP-Compliant and Stainless Steel Construction
Brand: SED Pharma

Rotary Tablet Press for Pharmaceutical & Food Industry Product Overview The Rotary Tablet Press is a high-performance, continuous automatic machine engineered for pharmaceutical, food, chemical, and electronic industries. Designed to compress granular raw materials into various tablet forms, this equipment delivers maximum output of 300,000 pieces per hour. Whether you require standard round tablets, complex geometric shapes, or double-sided engraved tablets, the SED series delivers exceptional stability and precision. The equipment is fully GMP-compliant, making it the ide

High-Capacity Rotary Tablet Press Machine with 300,000 Pieces per Hour Output GMP-Compliant and Stainless Steel Construction, view 1

High-Capacity Rotary Tablet Press Machine with 300,000 Pieces per Hour Output GMP-Compliant and Stainless Steel Construction, view 2

Product Details:

Place of Origin:	China
Brand Name:	SED Pharma
Certification:	CE
Model Number:	SED-600-Y-D

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	Negotiable
Packaging Details:	Wooden Case
Delivery Time:	50-60 Days after receiving the deposit
Payment Terms:	T/T,L/C,,Cash
Supply Ability:	30 Sets per month

Request configuration

Configuration and product details

Technical overview

Name: Rotary Tablet Press for Pharmaceutical & Food Industry
Production Capacity:: 266,200-307,800pcs/h
Max. Tablet Diameter: 11-13mm
Max. Pre-Pressure: 20 KN
Max. Main Pressure: 80 KN
Max. Turret Speed: 45 rpm
Floor Area: 1170×1290 mm
Power: 7.5 KW
Weight: 2800 kg
material: stainless steel
key word: Tablet Press Machine

Rotary Tablet Press for Pharmaceutical & Food Industry

Product Overview

The Rotary Tablet Press is a high-performance, continuous automatic machine engineered for pharmaceutical, food, chemical, and electronic industries. Designed to compress granular raw materials into various tablet forms, this equipment delivers maximum output of 300,000 pieces per hour.

Whether you require standard round tablets, complex geometric shapes, or double-sided engraved tablets, the SED series delivers exceptional stability and precision. The equipment is fully GMP-compliant, making it the ideal choice for large-scale pharmaceutical manufacturing and high-capacity production lines.

Technical Specifications

Model	SED-600-51Y-D	SED-600-57Y-D
Number of Stations	51	57
Max. Main Pressure	80 KN
Max. Pre-Pressure	20 KN
Max. Filling Depth	18 mm
Max. Tablet Diameter	13 mm	11 mm
Max. Capacity	26.62 (10⁴ pcs/h)	30.78 (10⁴ pcs/h)
Max. Turret Speed	45 rpm
Main Motor Power	7.5 KW
Machine Weight	2800 kg
Floor Area	1170×1290 mm

Key Features

Complies with GMP requirements for pharmaceutical manufacturing
High production efficiency meeting large-scale production needs
Equipped with forced feeding device and various impeller types for different materials
High pressure with continuously adjustable pre-pressure and extended pressing time
360° tablet pressing chamber design with no dead corners for easy cleaning
Special oil-proof and dust-proof system with damping structure
High-definition, isolated viewing window design
PLC and human-machine interface control for intuitive operation

Product Gallery
