Double Press Automatic Rotation Shape Pressing Equipment For Pharmaceutical Industry

Product Overview of Tablet Press

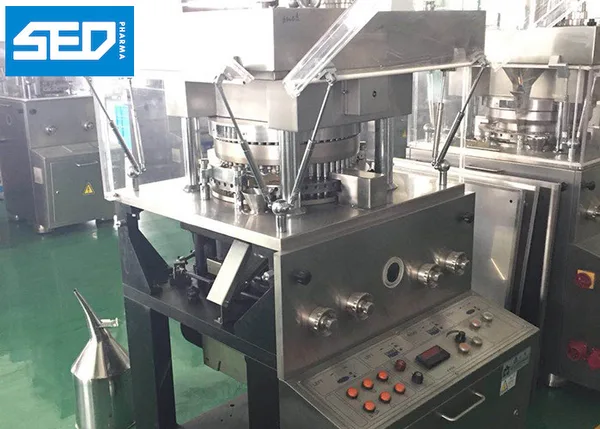

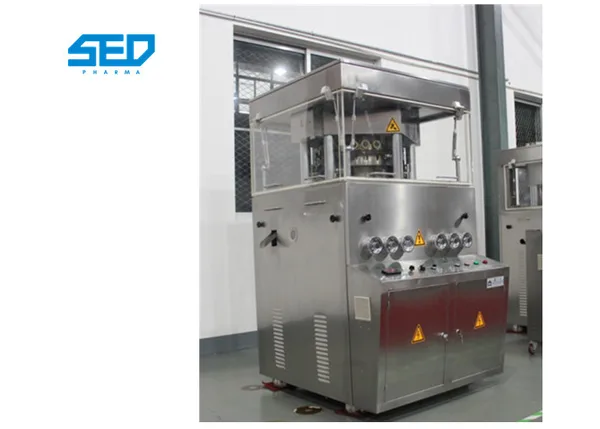

This machine is a double press automatic rotation for shape-pressing equipment, which have the function of press the grain material or powders to be round or irregular shape tablets, such as candy, calcium tablets double-sides with letter printing and etc.



which widely suitable for the Industries of pharmaceutical, Chemical, Foodstuff, Plastic Electronic, Powder Metallurgy and so on.



Product Parameters of Tablet Compression Machine

Punch Station	15 Punches
Max Compression	60 KN
Max Diameter of Tablet	30mm
Max Filling Depth	15mm
Max Thickness of Tablet	6mm
Rotary Speed	30rpm
Max Capacity	20000pcs/hour
Motor	3kw Power:380V/50HZ
Dimension	890×620×1500 mm
Weight	1000 KGS



Feature of Tablet Making Machine



1. The material of the machine is made of stainless steel with totally closed, the surface of turntable deal with polished and prevent cross pollution which meet the GMP standard.

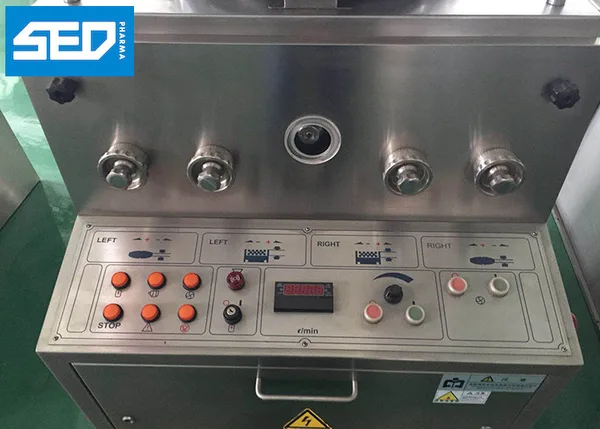

2. It is equipped with Organic-glass perspective window for tablet producing observation. Each perspective window could be fully opened and easy for cleaning and maintenance.



3. It is adopts the import Frequency Timing with Electromagnetism Clutch.



4. Driving system is equipped with oil box and running under oil, easy for heat dissipation and wear-resistance.



5. It is equipped with Dust Collector as well, which avoid the dust emission, and recycle to save dust



Application



Mainly used in chemical, food, electronics and other pharmaceutical industry enterprises.
