Tablet Press Machine

Manual Single Punch Pharmaceutical Powder Tablet Press Machine

Name: Manual Single Punch Pharmaceutical Powder Tablet Press Machine
Brand: SED Pharma

Manual Single Punch Pharmaceutical Powder Tablet Press Machine Product Description of Tablet Press Machine The machine is suitable for the industries of Chemical, Foodstuff, Electronic and etc. It is used of pressing medicinal tablets, catalysts, sugar tablets, Calcium tablets, Coffee tablets, Powder Metallurgical, Electronic elements and various tablets of pesticide and fertilizer. etc. in such small-batch production, laboratory and hospital fields. Meanwhile, that machine also can press various abnormity and normal tablet, and press the tablets in two sides with pr

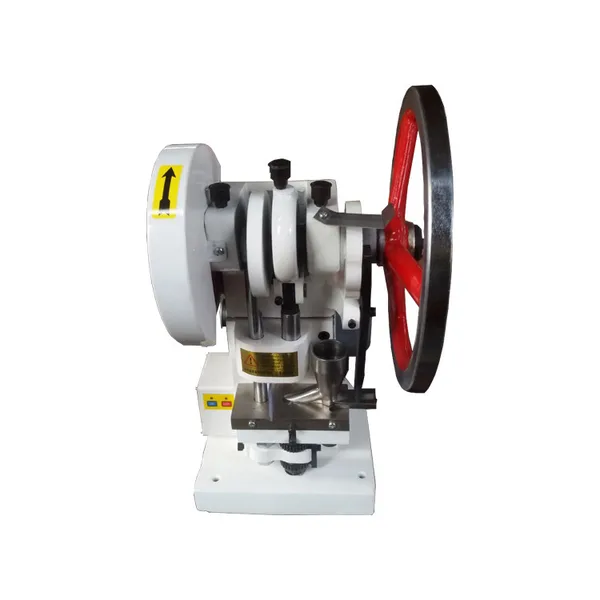

Manual Single Punch Pharmaceutical Powder Tablet Press Machine, view 1

Product Details:

Place of Origin:	China
Brand Name:	SED Pharma
Certification:	CE
Model Number:	SED-1.5DY

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	Negotiable
Packaging Details:	Wooden Case
Delivery Time:	35 Days after receiving the deposit
Payment Terms:	T/T,L/C, ,Cash
Supply Ability:	30 Sets per month

Request configuration

Configuration and product details

Technical overview

Name: Manual Single Punch Pharmaceutical Powder Tablet Press Machine
Model: SED-1.5DY
Number of Dies: 1
Max. Tablet Diameter(mm):: 12mm
Max. Filling Depth: 12mm
Max. Thickness: 6mm
Capacity: 5000pcs/hour
Motor Power(w):: 550W
Weight: 90kg
Dimension(L*W*H): 700*370*800mm
material: stainless steel
key word: Tablet Press Machine

Manual Single Punch Pharmaceutical Powder Tablet Press Machine

Product Description of Tablet Press Machine

The machine is suitable for the industries of Chemical, Foodstuff, Electronic and etc. It is used of pressing medicinal tablets, catalysts, sugar tablets, Calcium tablets, Coffee tablets, Powder Metallurgical, Electronic elements and various tablets of

pesticide and fertilizer. etc. in such small-batch production, laboratory and hospital fields. Meanwhile, that machine also can press various abnormity and normal tablet, and press the tablets in two sides with printing as well.

Detailed Parameters of Tablet Press Machine

Model	SED-1.5DY-D
Number of Dies	1
Max. Production Capacity	5000 pcs/h
Max. Diameter of Tablet	12mm
Max. Thickness of Tablet	6mm
Max. Filling Depth	12mm
Max. Pressure	15KN
Motor Power	0.55KW
Weight	90kg
Overall Dimension	700370800mm

Working Principle of Tablet Press Machine

The working principle of the single punch tablet machine is that the punch of the lower punch enters the middle die hole from the lower end of the middle die hole, seals the bottom of the middle die hole, and uses the feeder to fill the middle die hole with medicine, and the upper punch is from the upper end of the middle die hole.

Enter the middle die hole, and go down for a certain distance to limit the powder into tablets; then the upper punch rises and exits the hole, and the lower punch rises to push the tablet out of the middle die hole, completing a tableting process; the lower punch descends to the original position, ready for another filling.

Feature of Tablet Press Machine

1) The material of the machine is made of stainless steel with totally closed, the surface of turntable deal with polished and prevent cross pollution which meet the GMP standard.

2) It is equipped with Organic-glass perspective window for tablet producing observation. Each perspective window could be fully opened and easy for cleaning and maintenance.

3) It is adopts the import Frequency Timing with Electromagnetism Clutch.

4) The system of Hydraulic Pressure keep the working pressure under steady, when the pressure over-loading, it will be stopped the machine automatically.

5) Driving system is equipped with oil box and running under oil, easy for heat dissipation and wear-resistance.

6) It is equipped with Dust Collector as well, which avoid the dust emission, and recycle to save dust.

Product Show of Tablet Press Machine

Manual Single Punch Pharmaceutical Powder Tablet Press Machine product detail
