Tablet Press Machine
Small Single Punch Effervescent Tablet Press Machine
Product Overview of Tablet Press Machine The machine is suitable for the industries of Chemical, Foodstuff, Electronic and etc. It is used of pressing medicinal tablets, catalysts, sugar tablets, Calcium tablets, Coffee tablets, Powder Metallurgical, Electronic elements and various tablets of pesticide and fertilizer. etc. In such small-batch production, laboratory and hospital fields. Meanwhile, that machine also can press various abnormity and normal tablet, and press the tablets in two sides with printing as well. Product Parameters of Tablet Press Machine Model
| Place of Origin: | China |
|---|---|
| Brand Name: | SED Pharma |
| Certification: | CE |
| Model Number: | SED-1.5DY |
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden Case |
| Delivery Time: | 50-60 Days after receiving the deposit |
| Payment Terms: | T/T,L/C, ,Cash |
| Supply Ability: | 30 Sets per month |
Configuration and product details
Technical overview- Name
- Small Single Punch Effervescent Tablet Press Machine
- Max. Pressure
- 1.5T
- Weight
- 100kg
- Max. Filling Depth
- 11mm
- Max. Thickness
- 6mm
- Capacity
- 5000pcs/hour
- Motor Power
- 550W
- Overall Dimension
- 580×450×625 mm
- material
- stainless steel
- key word
- Tablet Press Machine
Product Overview of Tablet Press Machine
The machine is suitable for the industries of Chemical, Foodstuff, Electronic and etc. It is used of pressing medicinal tablets, catalysts, sugar tablets, Calcium tablets, Coffee tablets, Powder Metallurgical, Electronic elements and various tablets of pesticide and fertilizer. etc.
In such small-batch production, laboratory and hospital fields. Meanwhile, that machine also can press various abnormity and normal tablet, and press the tablets in two sides with printing as well.
Product Parameters of Tablet Press Machine
Model | SED-1.5DY |
| Max. Pressure | 1.5T |
| Max. Dia. | Round: Φ12 |
| Max. Filling Depth | 11mm |
| Max. Thickness | 6mm |
| Capacity | 5000pcs/hour |
| Motor Power | 550W |
| Overall Dimension | 580×450×625 mm |
| Weight | 100kg |

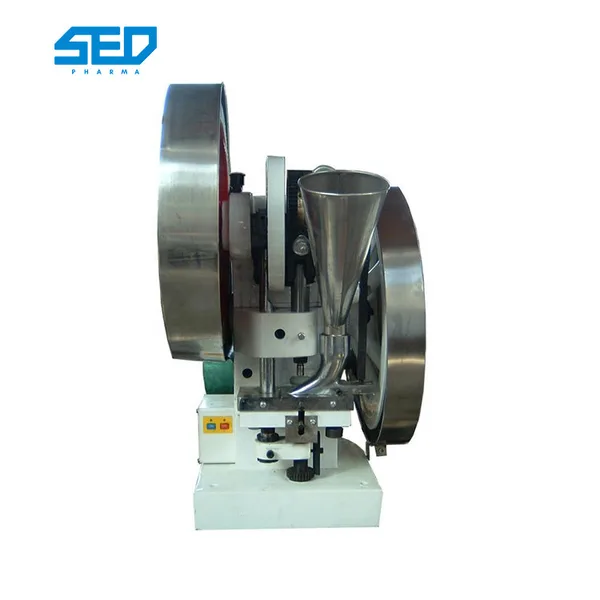

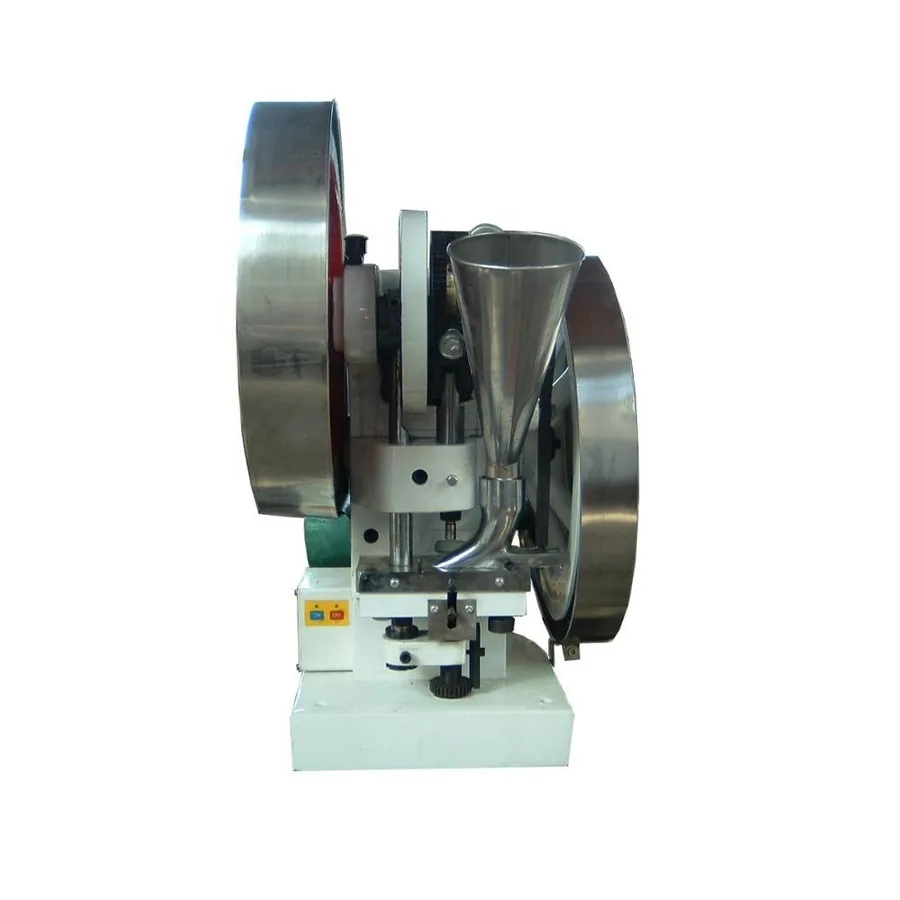

Show of Tablet Press Machine
Application of Tablet Press Machine
It can be widely used in pharmaceutical, chemical, food, hospital, scientific research unit, laboratory trial production and small batch production. Suitable for small batch production of tablets.
Feature
The machine is suitable for the industries of Chemical, Foodstuff, Electronic and etc. It is used of pressing medicinal tablets, catalysts, sugar tablets, Calcium tablets, Coffee tablets, Powder Metallurgical, Electronic elements and various tablets of pesticide and fertilizer. etc. in such small-batch production, laboratory and hospital fields. Meanwhile, that machine also can press various abnormity and normal tablet, and press the tablets in two sides with printing as well.
