Tablet Press Machine
Medicine Closed Double Mixing Powder Tablet Press Machine With CE Certification
Medicine Closed Double Mixing Powder Tablet Press Machine With CE Certification Product Overview of Tablet Press Machine SED-420-27Y-D Automatic Rotary Tablet Press is a double-pressing automatically revolving tablet-pressing machine which could press granular into round tablets, special-shaped tablets, double-color tablets and engraving tablets. It is mainly used in manufacturing pressed tablets for pharmaceutical industry like chemical industry, foods, and electronics. (Note: when manufacturing double color piece, it only need replacing components and adding powder ab
| Place of Origin: | China |
|---|---|
| Brand Name: | SED Pharma |
| Certification: | CE |
| Model Number: | SED-420-27Y-D |
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden Case |
| Delivery Time: | 30 Days after receiving the deposit |
| Payment Terms: | T/T,L/C, ,Cash |
| Supply Ability: | 30 Sets Per Month |
Configuration and product details
Technical overview- Name
- Medicine Closed Double Mixing Powder Tablet Press Machine With CE Certification
- Model
- SED-420-27Y-D
- Max Main Pressure (KN)
- 80KN
- Max. Tablet Diameter
- 25mm
- Max Production Capacity (pcs/h)
- 58000
- Overall Size (mm)
- 1230*950*1670
- material
- stainless steel
- key word
- Tablet Press Machine
Medicine Closed Double Mixing Powder Tablet Press Machine With CE Certification
Product Overview of Tablet Press Machine
SED-420-27Y-D Automatic Rotary Tablet Press is a double-pressing automatically revolving tablet-pressing machine which could press granular into round tablets, special-shaped tablets, double-color tablets and engraving tablets. It is mainly used in manufacturing pressed tablets for pharmaceutical industry like chemical industry, foods, and electronics. (Note: when manufacturing double color piece, it only need replacing components and adding powder absorbing apparatus which greatly lowers the cost and raises profit.)
Technique Parameters
| Model | SED-420-27Y-D |
| Number of Punch Die | 27 |
| Capacity | 58000 pcs/h |
| Max. Pressure | 80KN |
| Max. Tablet Diameter | 25mm |
| Max. Filling Depth | 18mm |
| Max. Tablet Thickness | 8mm |
| Turret Speed | 0-18rpm |
| Motor Power | 5.5KW |
| Weight | 1700kg |
| Overall Dimension | 1230*950*1670mm |
Features
1.The cover is made of stainless steel with enclosed type. The inner tablet surface is also made of stainless steel which could keep surface clean and prevent from being polluted, comply with GMP requirement.
2.Equipped with plexiglass perspective window which could help to observe the status of pressing tablet. Side blank could be fully opened, easy to clean and maintain.
3.All monitors and operating components are in good order.
4.Applying with frequency changing, speed regulating apparatus to do electricity regulation. The convenient operation and smooth revolving are safe and correct.
5.Equipped with over-load protection apparatus. When pressure overloads, the machine will stop automatically.
6.The machine is provided with a dust collector to thoroughly collect the dust in the tablet pressing chamber.
7.When it makes double-layer tablets, the output will be reduced by half.

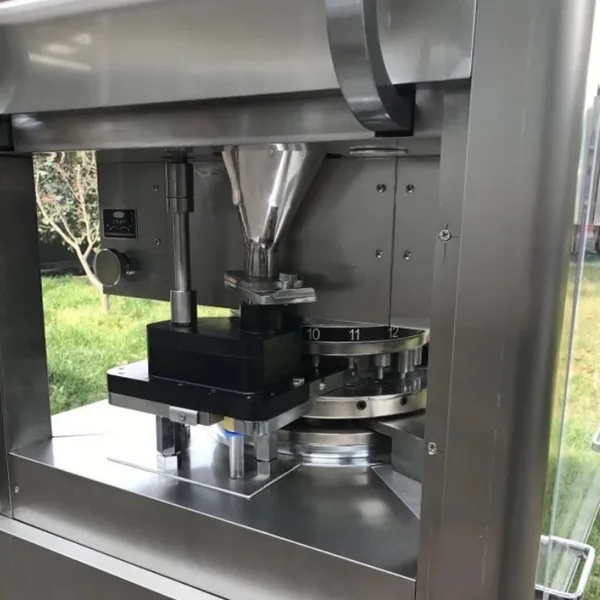

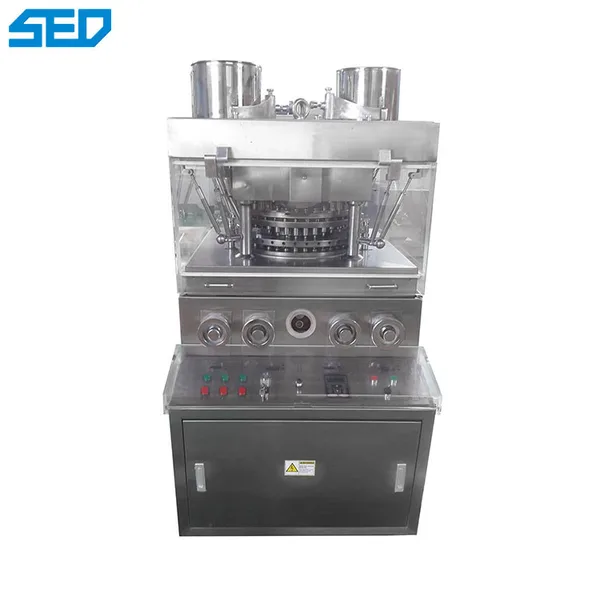

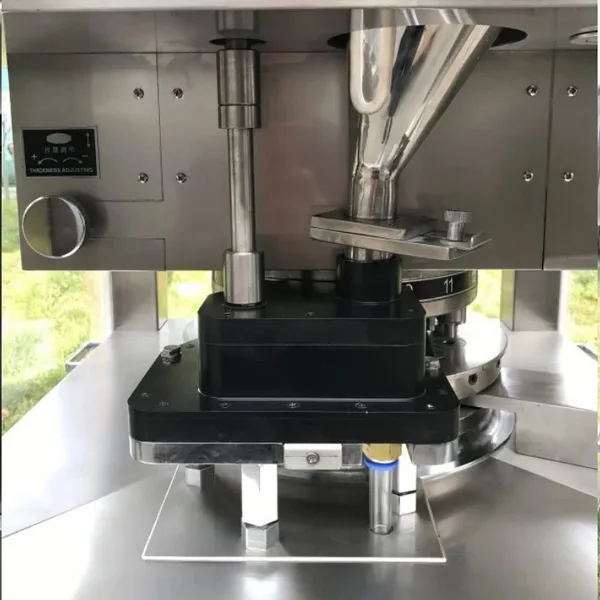

Show of Tablet Press Machine
Application of Tablet Press Machine
This machine is a continuous automatic tablet press for compressing granular raw materials into tablets. Mainly used
Pharmaceutical industry, can also be used in chemical, food, electronics, plastics, metallurgy and other industries.
