Tablet Press Machine
Laboratory Use Single Punch Tablet Press Equipment For Small Batch Production
Laboratory Use Single Punch Tablet Press Equipment For Small Batch Production Performance of Tablet Press Machine Single Punch Tablet Pressing Machine is a simple mechanical machine that can be used to compress powder into tablets that are uniform in size, shape and weight. The machine is used for a wide range of applications from cosmetics and pharmaceuticals to cleaning products. There is one upper and lower punch and die set, and filling depth of material and thickness of pressed tablet can be adjusted. Different products can be pressed by changing different molds.
| Place of Origin: | China |
|---|---|
| Brand Name: | SED Pharma |
| Certification: | CE |
| Model Number: | SED-5DY |
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden Case |
| Delivery Time: | 30 Days after receiving the deposit |
| Payment Terms: | T/T,L/C, ,Cash |
| Supply Ability: | 30 Sets Per Month |
Configuration and product details
Technical overview- Name
- Laboratory Use Single Punch Tablet Press Equipment For Small Batch Production
- Max Compression
- 50KN
- Power
- 750W
- Weight
- 125kg
- Condition
- New
- Dimension
- 700*400*800mm
- Capacity
- 4500 Tablets Per Hour
- Max Diameter
- 20mm
- material
- stainless steel
- key word
- Tablet Press Machine
Laboratory Use Single Punch Tablet Press Equipment For Small Batch Production
Performance of Tablet Press Machine
Single Punch Tablet Pressing Machine is a simple mechanical machine that can be used to compress powder into tablets that are uniform in size, shape and weight. The machine is used for a wide range of applications from cosmetics and pharmaceuticals to cleaning products. There is one upper and lower punch and die set, and filling depth of material and thickness of pressed tablet can be adjusted. Different products can be pressed by changing different molds.
Product Parameters of Tablet Press Machine
| Model | SED-5DY |
| Max. Pressure | 50KN |
| Max. Dia. | Round: Φ20 |
| Max. Filling Depth | 18mm |
| Max. Thickness | 7.5mm |
| Capacity | 4500pcs/hour |
| Motor Power | 750W.1400r/min 110V 50Hz |
| Overall Dimension |
700*400*800mm |
| Weight | 125kg |

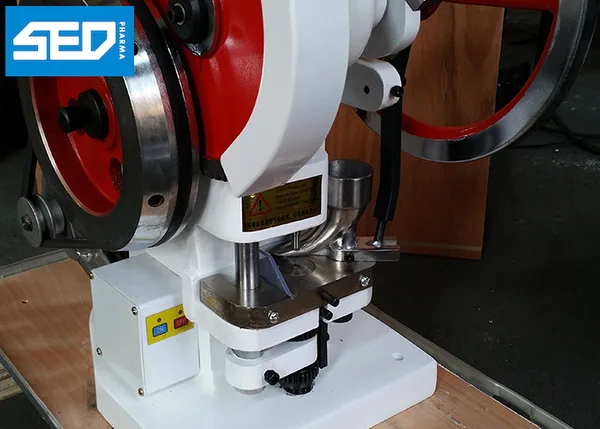

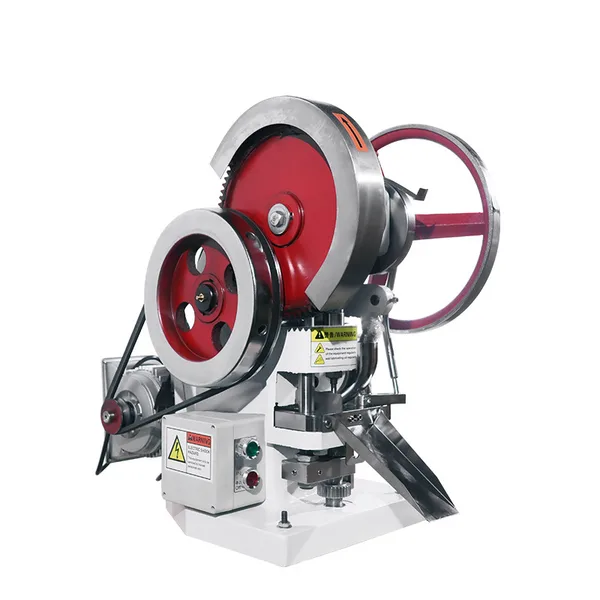

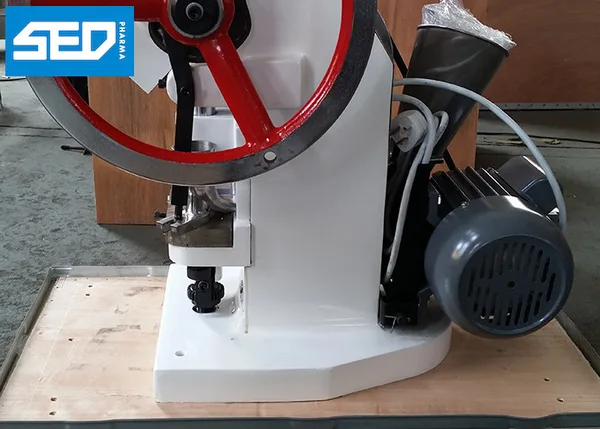

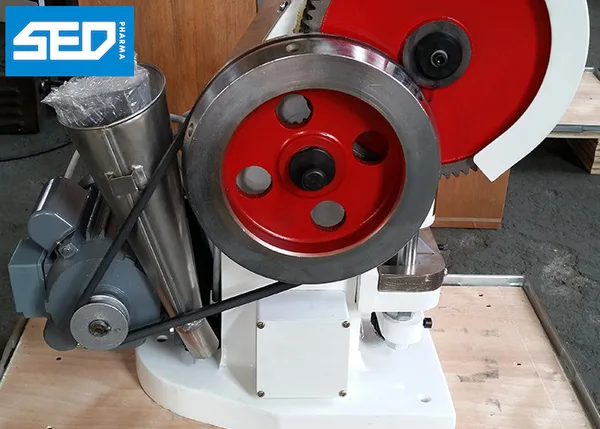

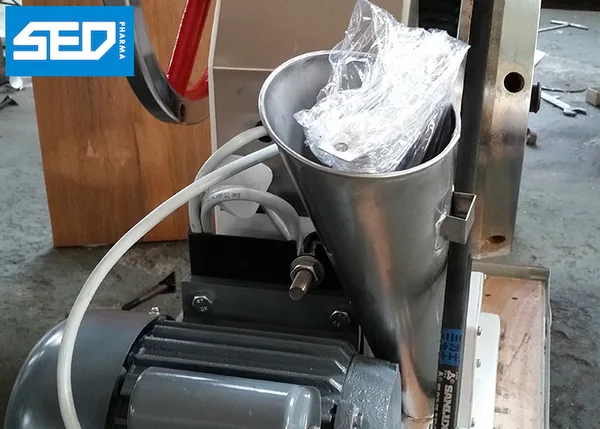

Show of Tablet Press Machine
Application of Tablet Press Machine
Suitable for laboratories and small tablet production and processing industries. It is a small desktop micro-motion continuous press. The machine comes with a die, and by changing the die, tablets of different shapes and sizes can be pressed. Material filling depth and tablet thickness can be adjusted.
