Tablet Press Machine

High Speed Rotary Tablet Press Machine Low Noise GMP Standard With 31 Punch Stations

Name: High Speed Rotary Tablet Press Machine Low Noise GMP Standard With 31 Punch Stations
Brand: SED Pharma

High Speed Rotary Tablet Press Machine Low Noise GMP Standard With 31 Punch Stations Performance of Rotary Tablet Press Machine This machine is a double press automatic rotation for shape-pressing equipment, which have the function of press the grain material or powders to be round or irregular shape tablets, such as candy, calcium tablets double-sides with letter printing and etc. which widely suitable for the Industries of pharmaceutical, Chemical, Foodstuff, Plastic Electronic, Powder Metallurgy and so on. Product Parameters of Rotary Tablet Press Machine Model:

High Speed Rotary Tablet Press Machine Low Noise GMP Standard With 31 Punch Stations, view 1

High Speed Rotary Tablet Press Machine Low Noise GMP Standard With 31 Punch Stations, view 2

High Speed Rotary Tablet Press Machine Low Noise GMP Standard With 31 Punch Stations, view 3

High Speed Rotary Tablet Press Machine Low Noise GMP Standard With 31 Punch Stations, view 4

Product Details:

Place of Origin:	China
Brand Name:	SED Pharma
Certification:	CE
Model Number:	SED420-31Y

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	Negotiable
Packaging Details:	Wooden Case
Delivery Time:	30 Days after receiving the deposit
Payment Terms:	T/T,L/C, ,Cash
Supply Ability:	30 Sets Per Month

Request configuration

Configuration and product details

Technical overview

Name: High Speed Rotary Tablet Press Machine Low Noise GMP Standard With 31 Punch Stations
Motor power: 4kw
Power supply: 380V 50HZ Three Phase
Dimension: 1240×980×1650mm
Weight: 1850kgs
Rotary speed of the turret: 3-30rpm
Max. diameter of the pressed tablet: 20mm
Capacity: 100,000 tablets per hour
Material: stainless steel
key word: Tablet Press Machine

High Speed Rotary Tablet Press Machine Low Noise GMP Standard With 31 Punch Stations

Performance of Rotary Tablet Press Machine

This machine is a double press automatic rotation for shape-pressing equipment, which have the function of press the grain material or powders to be round or irregular shape tablets, such as candy, calcium tablets double-sides with letter printing and etc.

which widely suitable for the Industries of pharmaceutical, Chemical, Foodstuff, Plastic Electronic, Powder Metallurgy and so on.

Product Parameters of Rotary Tablet Press Machine

Model:	SED-420/31Y
Max. compression	80KN
Max. diameter of the pressed tablet	20mm
Max. filling depth	15mm
Max. Thickness of the pressed tablet	6mm
Rotary speed of the turret	3-30rpm
Capacity	100,000 tablets per hour
Motor power	4kw
Power supply	380V 50HZ Three Phase
Dimension	1240×980×1650mm
Weight	1850kgs

Main Features of Rotary Tablet Press Machine

1. The material of the machine is made of stainless steel with totally closed, the surface of turntable deal with polished and prevent cross pollution which meet the GMP standard.

2. It is equipped with Organic-glass perspective window for tablet producing observation. Each perspective window could be fully opened and easy for cleaning and maintenance.

3. It is adopts the import Frequency Timing with Electromagnetism Clutch.

4. The system of Hydraulic Pressure keep the working pressure under steady, when the pressure over-loading, it will be stopped the machine automatically.

Show of Rotary Tablet Press Machine

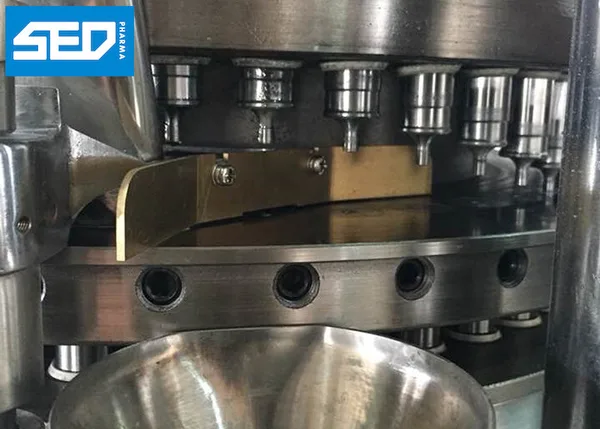

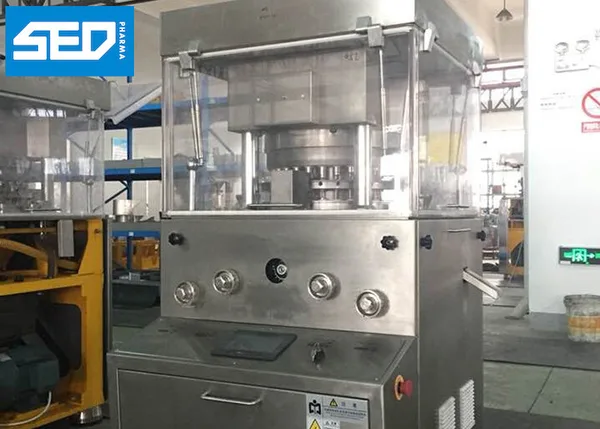

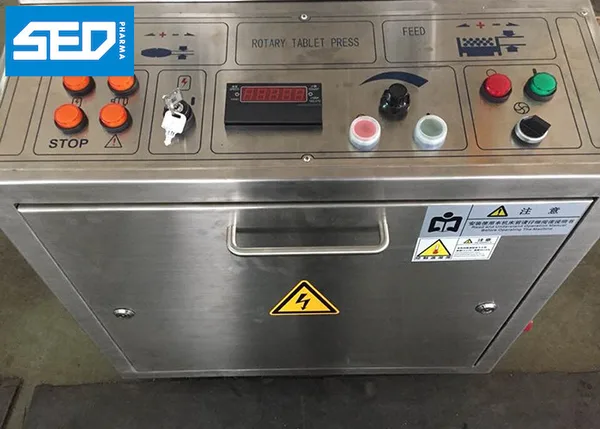

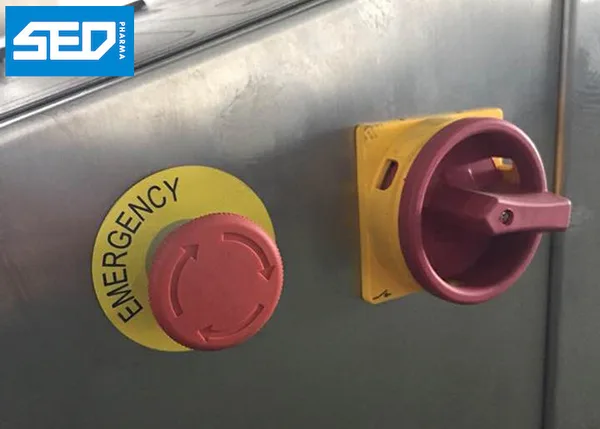

High Speed Rotary Tablet Press Machine Low Noise GMP Standard With 31 Punch Stations product detail

Application of Rotary Tablet Press Machine

This machine is a single-compression/double-compression continuous automatic tablet press, which is used to compress granular raw materials into tablets. Mainly used in the pharmaceutical industry, but also in chemical, food, electronics, plastics, metallurgy and other industries.

High Speed Rotary Tablet Press Machine Low Noise GMP Standard With 31 Punch Stations product detail
