Tablet Press Machine

High Production Efficiency Candy Tablet Press Machine

Name: High Production Efficiency Candy Tablet Press Machine
Brand: SED Pharma

High Production Efficiency Candy Tablet Press Machine Product Description of Tablet Compression Machine SED-520-29GY-B automatic high-speed rotary tablet press is widely used in pharmaceutical industry, food, chemical, electronic and other industries. Can press all kinds of granular materials that meeting the requirements. It can also press special shaped tablets and double-sided engraving tablet. Product Parameters of Tablet Compression Machine Model SED-520-29GY-B Number of Punch Die 29 P unch Type IPT’D tooling Max. Pressure 100KN Max. Tablet Diameter 25mm Max. Tab

Product Details:

Place of Origin:	China
Brand Name:	SED Pharma
Certification:	CE
Model Number:	SED-520-29GY-B

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	Negotiable
Packaging Details:	Wooden Case
Delivery Time:	50-60 Days after receiving the deposit
Payment Terms:	T/T,L/C, ,Cash
Supply Ability:	30 Sets per month

Request configuration

Configuration and product details

Technical overview

Name: High Production Efficiency Candy Tablet Press Machine
Model: SED-520-29GY-B
Thickness of the die (mm): 6
Maximum compression (KN): 100
Rotary speed of the turret (rpm): 40
Max. Capacity: 121800 pcs/h
material: stainless steel
key word: Tablet Press Machine

High Production Efficiency Candy Tablet Press Machine

Product Description of Tablet Compression Machine

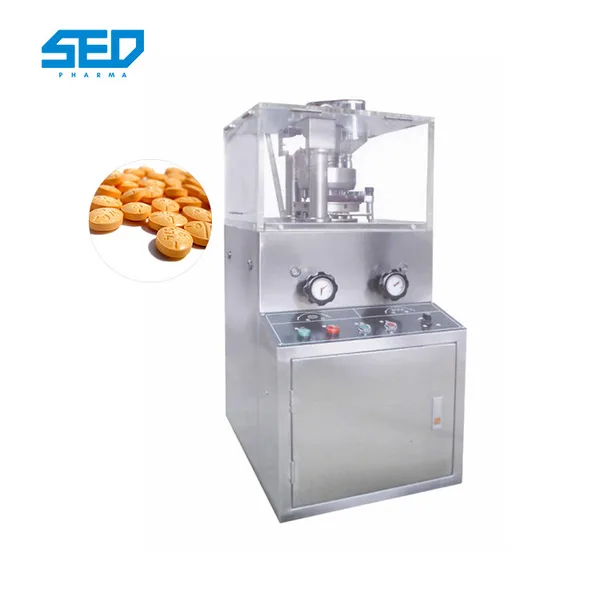

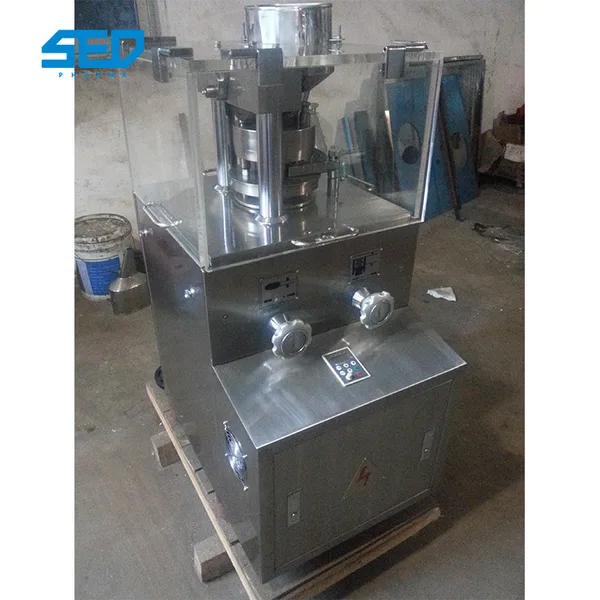

SED-520-29GY-B automatic high-speed rotary tablet press is widely used in pharmaceutical industry, food, chemical, electronic and other industries. Can press all kinds of granular materials that meeting the requirements. It can also press special shaped tablets and double-sided engraving tablet.

Product Parameters of Tablet Compression Machine

Model	SED-520-29GY-B
Number of Punch Die	29
Punch Type	IPT’D tooling
Max. Pressure	100KN
Max. Tablet Diameter	25mm
Max. Tablet Thickness	6mm
Max. Filling Depth	18mm
Max. Turret Speed	40 rpm
Max. Capacity	121800 pcs/h
Main Motor Power	7.5KW
Net Weight	2380kg
Overall Dimension	12009001800mm

Feature of Tablet Compression Machine

The pressure is high enough to meet the better quality of the tablet.

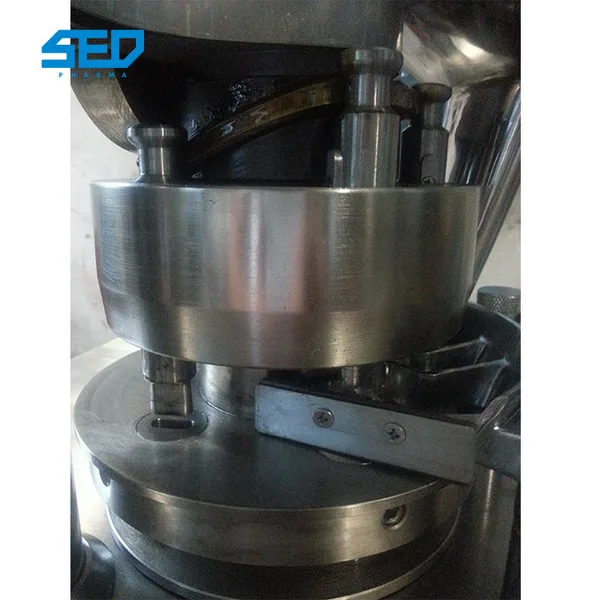

Use IPT punch, double pressure double side output, high production efficiency.

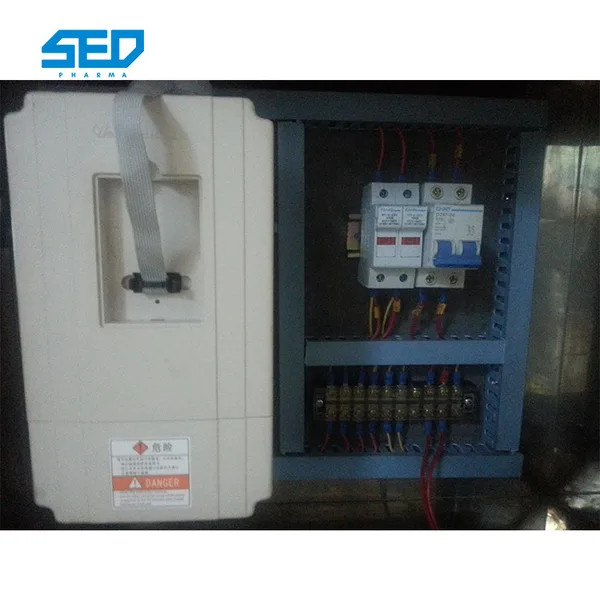

The control part adopts PLC, and the operation panel uses color touch display screen, easy to operate.
Equipped with closed forced feeder. When the equipment runs at high speed, it fills the material forcibly, shortens the filling time and ensures the stability of tablet weight.
Equipped with main pressure display, pressure overload protection device, when the pressure overload, machine can automatically stop. There are overpressure protection, emergency stop, frequency converter fault alarm protection, strong exhaust heat dissipation device.

The working area adopts fully closed transparent windows with less dust pollution and excellent sealing. Components are made of stainless steel or special surface treatment, which can prevent cross pollution and meet GMP requirements.

Application of Tablet Compression Machine
