Tablet Press Machine

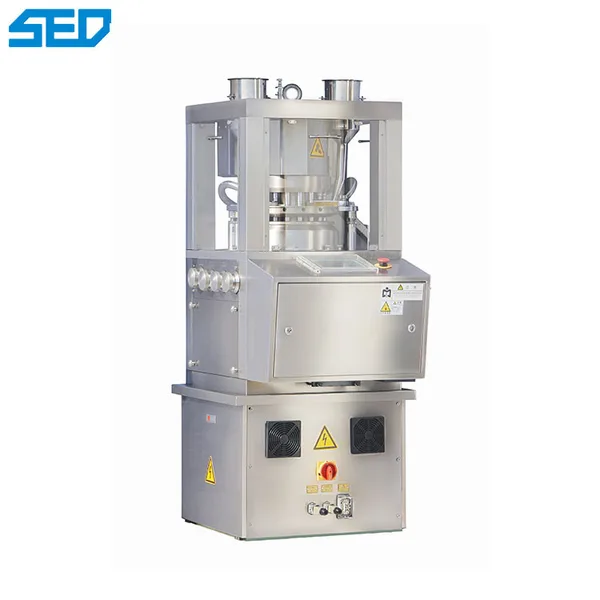

GMP Standards Rotary Tablet Press Machine Pill Press Machine

Name: GMP Standards Rotary Tablet Press Machine Pill Press Machine
Brand: SED Pharma

GMP Standards Rotary Tablet Press Machine Pill Press Machine Product Overview of Tablet Press Machine This machine is a two-color tablet press. It compresses granular raw materials into various tablets. It is mainly used in the production of tablets in the pharmaceutical industry. It is also suitable for chemical, food, electronics, plastics, powder metallurgy and other industries. Product Parameters of Tablet Press Machine Model SED226-10Y-A Number of stations 10 Maximum main pressing force (kn) 60 Maximum preload pressure (kn) 10 Maximum tablet diameter (mm) 25 Max

GMP Standards Rotary Tablet Press Machine Pill Press Machine, view 1

Product Details:

Place of Origin:	China
Brand Name:	SED Pharma
Certification:	CE
Model Number:	SED-226-10Y-A

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	Negotiable
Packaging Details:	Wooden Case
Delivery Time:	35 Days after receiving the deposit
Payment Terms:	T/T,L/C, ,Cash
Supply Ability:	30 Sets per month

Request configuration

Configuration and product details

Technical overview

Name: GMP Standards Rotary Tablet Press Machine Pill Press Machine
Model: SED-226-10Y-A
Dies: 10
Max.Pressure(KN): 60
Max.dia.of table(mm): 25
Motor(KW): 2.2
Max.filling depth(mm): 15
Max.tablet thickness(mm): 8
Rotation speed(r/min): 40
Capacity(Pcs/h): 24000
size(mm): 615×890×1415
weight(kg): 1000
material: stainless steel
key word: Tablet Press Machine

GMP Standards Rotary Tablet Press Machine Pill Press Machine

Product Overview of Tablet Press Machine

This machine is a two-color tablet press. It compresses granular raw materials into various tablets. It is mainly used in the production of tablets in the pharmaceutical industry. It is also suitable for chemical, food, electronics, plastics, powder metallurgy and other industries.

Product Parameters of Tablet Press Machine

Model	SED226-10Y-A
Number of stations	10
Maximum main pressing force (kn)	60
Maximum preload pressure (kn)	10
Maximum tablet diameter (mm)	25
Maximum tablet thickness (mm)	8
Maximum filling depth (mm)	15
Turntable speed (rev/min)	40
Production capacity (pieces/hour)	24000
Main motor power (kw)	2.2
Machine shape (LWH mm)	615×890×1415
Machine weight (kg)	1000

Feature of Tablet Press Machine

1: The outer enclosure is fully enclosed, made of stainless steel, and conforms to GMP standards
2: Equipped with a transparent glass observation window, which can clearly see the working conditions of the machine and can be fully opened, which is easy for internal cleaning and maintenance
3: This machine has high pressure and large tablet diameter, which can compress ordinary, special-shaped and ring-shaped tablets. It is especially suitable for multi-variety and small-batch production.
4: Mechatronics, all controllers and adjusting devices are concentrated on one side of the body, easy to operate
5: Equipped with pressure overload protection device to avoid machine damage
6: The transmission mechanism adopts oil-immersed lubrication, which is sealed under the body to extend the service life and avoid cross-contamination.

Application of Tablet Press Machine

This machine is a single-compression/double-compression continuous automatic tablet press, which is used to compress granular raw materials into tablets. Mainly used in the pharmaceutical industry, but also in chemical, food, electronics, plastics, metallurgy and other industries.

GMP Standards Rotary Tablet Press Machine Pill Press Machine product detail
