Tablet Press Machine
GMP Standard Type 304 Stainless Steel Material Single Punch Tablet Press Machine
Performance of Tablet Press Machine This machine is a single press automatic for shape-pressing equipment, which have the function of press the grains material to be round or irregular shape tablets, such as candy, calcium tablets double-sides with letter printing and etc. which widely suitable for the Lab, Industries of pharmaceutical, Chemical, Foodstuff, Plastic Electronic, Powder Metallurgy and so on. It is a small desktop machine, can pressing the tablet electronically and continuously, also can pressing the tablet manually. The machine can be installed on one s
| Place of Origin: | China |
|---|---|
| Brand Name: | SED Pharma |
| Certification: | CE |
| Model Number: | SED-5DY |
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden Case |
| Delivery Time: | 30 Days after receiving the deposit |
| Payment Terms: | T/T,L/C, ,Cash |
| Supply Ability: | 30 Sets Per Month |
Configuration and product details
Technical overview- Name
- GMP Standard Type 304 Stainless Steel Material Single Punch Tablet Press Machine
- Standard
- EU GMP
- Tooling Type
- European B,D Type Tooling
- Max Pressure
- 5 Ton
- Max Diameter
- 25mm
- Max Filling Depth
- 20mm
- Material
- Stainless Steel
- Max Thickness
- 10mm
- key word
- Tablet Press Machine
Performance of Tablet Press Machine
This machine is a single press automatic for shape-pressing equipment, which have the function of press the grains material to be round or irregular shape tablets, such as candy, calcium tablets double-sides with letter printing and etc.
which widely suitable for the Lab, Industries of pharmaceutical, Chemical, Foodstuff, Plastic Electronic, Powder Metallurgy and so on.
It is a small desktop machine, can pressing the tablet electronically and continuously, also can pressing the tablet manually. The machine can be installed on one set of punch mould, the depth of filling material and the thickness of the tablets can be adjustable.
Product Parameters of Tablet Press Machine
| Type No. | SED-5DY |
| The max pressure | 50KN |
| The max diameter of the pressed tablet | 25mm |
| The max filling depth | 20mm |
| The thickness of the pressed tablet | 10mm |
| Capacity | 3600 tablets per hour |
| power | 1.5kw |
| Dimension | 580*500*830mm |
| Weight | 150kg |

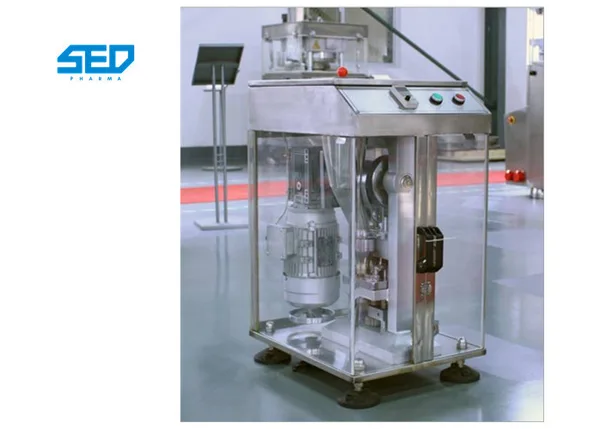

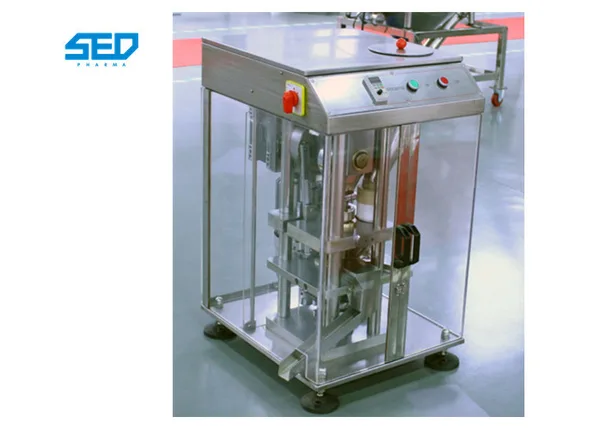

Show of Tablet Press Machine
Application of Tablet Press Machine
It is the first choice for pharmaceutical, chemical, electronic, food and other enterprises. It is also suitable for pressing materials that are difficult to tablet, and meets GMP production requirements.
