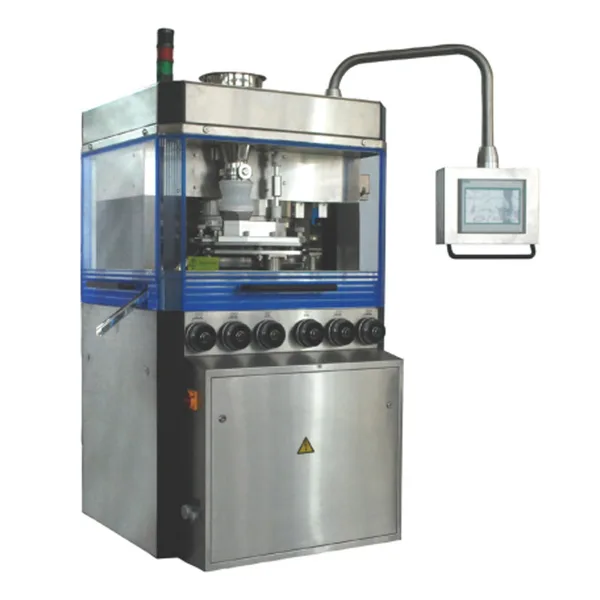

GMP Standard Durable Automatic Rotary Tablet Making Machine



GMP Standard Durable Automatic Rotary Tablet Making Machine



Product Description of Tablet Compression Machine



This tablet press is suitable for the pharmaceutical industry (except for explosive, flammable, and corrosive items). It can press granular materials that meet the tablet pressing requirements into tablets, and can also press circular, irregular, and double-sided engraved tablets. It is also possible to replace some parts and press double-layer sheets. Not suitable for pressing semi-solid, moist particles, low melting point, easily damp raw materials, and powder without particles



Product Parameters of Tablet Compression Machine​

Model		SED-525-39Y-G	SED-525-47Y-G	SED-525-57Y-G	SED-525-61Y-G
Dies		39	47	57	61
Max.Diameter of Tablet	mm	25	16	13	11
Turret Speed	min-1	16
Max.Filling Depth	mm	18
Capacity	tablets/h	74,880	90,240	109,440	117,120
Max.Working Pressure	kN	100
Max.Pre-pressure	kN	30
Voltage	V/Hz	AC 380/50
Motor Power	kW	7.5
Overall Dimension	mm	1300×1100*2160
Weight	kg	3000



Features



1. The material of the machine is made of stainless steel with totally closed, the surface of turntable deal with polished and prevent cross pollution which meet the GMP standard.



2. It is equipped with Organic-glass perspective window for tablet producing observation. Each perspective window could be fully opened and easy for cleaning and maintenance.



3. It is adopts the import Frequency Timing with Electromagnetism Clutch.



4. Driving system is equipped with oil box and running under oil, easy for heat dissipation and wear-resistance.



5. It is equipped with Dust Collector as well, which avoid the dust emission, and recycle to save dust.



Application of Tablet Compression Machine

Mainly used for tablet production in the pharmaceutical industry, but also for chemical, food, electronics and other industrial sectors.
