Fully Enclosed Automatic Effervescent Tablet Press Machine

Fully Enclosed Automatic Effervescent Tablet Press Machine



Product description of Tablet Press Machine

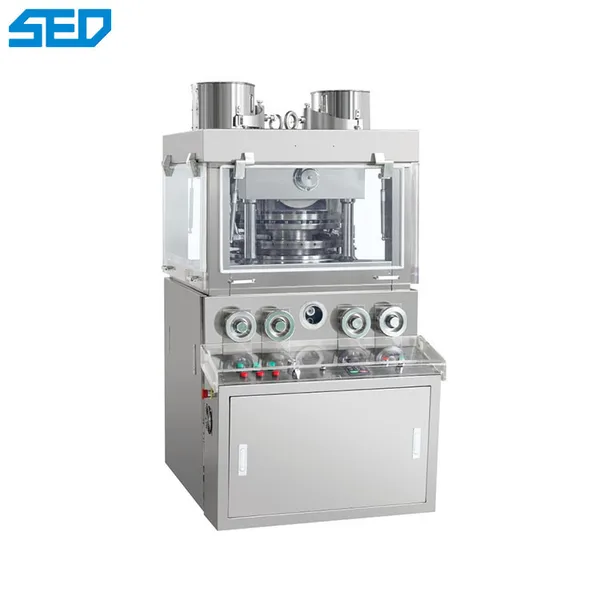

SED-420-31Y1-B Automatic Rotary Tablet Press is a double-press multifunctional automatic rotary continuous tablet press machine, which presses granular raw materials into tablets. It is mainly used in the production of the pharmaceutical industry, and is also used in chemical, food, electronics and other industrial sectors. It can press special-shaped tablets, double-layer tablets, effervescent tablets, etc.



Technique Parameters

Number of Punch Die	31
Capacity	50000-70000 pcs/h
Max. Working Pressure	80KN
Max. Diameter of Tablet	24mm
Max. Thickness of Tablet	6mm
Max. Filling Depth	15mm
Turret Speed	10-20rpm
Motor Power	5.5KW
Weight	1700kg
Overall Dimension	1230*950*1670mm

Features

• The outer casing is fully enclosed, and the material is made of stainless steel, and the inner table is also made of stainless steel, which can maintain the surface gloss and prevent cross-contamination, in line with GMP requirements.
• Equipped with plexiglass perspective window which could help to observe the status of tablet pressing. The transparent protective cover could be fully opened, easy to clean and maintain.
• The rotating speed can be adjusted freely.
• The touch screen can display parameters such as speed, output, faults, etc.
• The transmission system is sealed in the oil tank under the main body of the machine. It is an independent component that is safely separated and will not pollute each other. The transmission shaft is infiltrated into the oil pool to be fully lubricated, reducing noise and wear.

• The machine is equipped with a dust collection device, which can absorb the flying dust in the pressing room.



Application of Tablet Press Machine

This machine is a new generation product developed by our company's tablet press. It is a double-press, continuous automatic rotary tablet press, which is widely used in pharmaceutical, chemical, food, electronics, etc. to press granular materials into various Round Tablets, Irregular Tablets, Ring Tablets.
