Flower Basket Type Continuous Automatic Tablet Press Equipment

Flower Basket Type Continuous Automatic Tablet Press Equipment

Product Overview of Tablet Press Machine

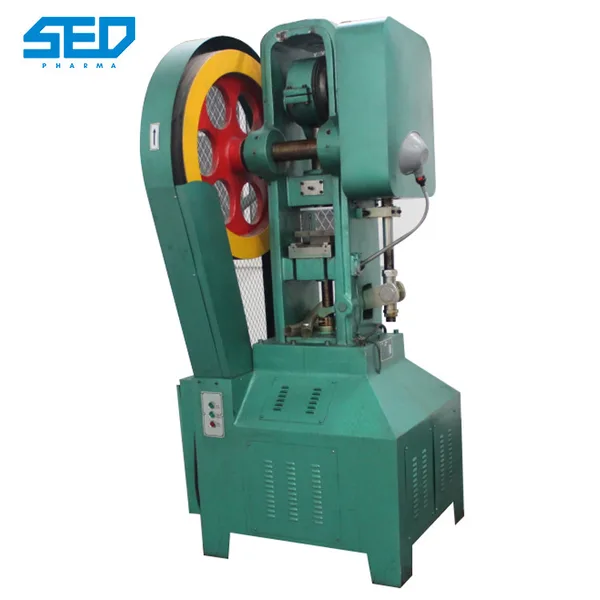

SED-15HY-D Flower Basket Tablet Press Machine is a flower basket type continuous automatic tablet press. It is one of the fundamental equipment for pressing granular raw materials into tablets in such industries as medicine, chemical industry, food and electronics. It is suitable for making medicine tablets, coffee tablets, powder metallurgy, electronic parts and all kinds of fertilizer and pesticide tablets in small batch production, laboratories, hospitals and other sectors. It can be used to make various special-shaped and ring-shaped tablets, as well as tablets with trademarks, words and simple images carved on both sides. Thanks to its high pressure and high strength, it is especially suitable for making powder tablets difficult to form, such as ceramic powder, metal powder, etc.



Product Parameters of Tablet Press Machine​



Model	SED-15HY-D
Working Pressure	15T
Max. Stroke of Upper Punch	100mm
Loading Height	60mm
Diameter of Lower mold	115mm
Capacity	20-25 times/min
Product Error	±0.05
Motor Power	4000W
Weight	800kg
Overall Dimension	900*800*2100mm



Product Show of Tablet Press Machine​

Feature of Tablet Press Machine​

1.The machine is made of totally enclosed type and stainless still. The table board is made of stainless still too. It can keep shining and cleaning. It can prove the powder splashing.
2.The cover is transparent. We can see the all work process and open it.
3.The mold is installed convenient. The machine is cleaned easily.
4.All actions can control by the Micro-computer. The work time can adjust. The machines can two-way press. The all hydraulic parts are import. The import parts use mechanical and hydraulic two-way control. It handles convenient, performance steady, safe and exact.
5.Touch Screen operating system can be required by you.
6.Very Easy to operate the machine, very easy to adjust the machine, simple machine with large pressure.



Application of Tablet Press Machine

Rotary tablet press is a new generation product of our factory. It is a continuous and automatic rotary tablet press, which is suitable for pressing tablets of various shapes and ordinary tablets. Mainly used in pharmaceutical, chemical, food and other industries. , plastics, powder, metallurgy and electronics industries.
