Tablet Press Machine

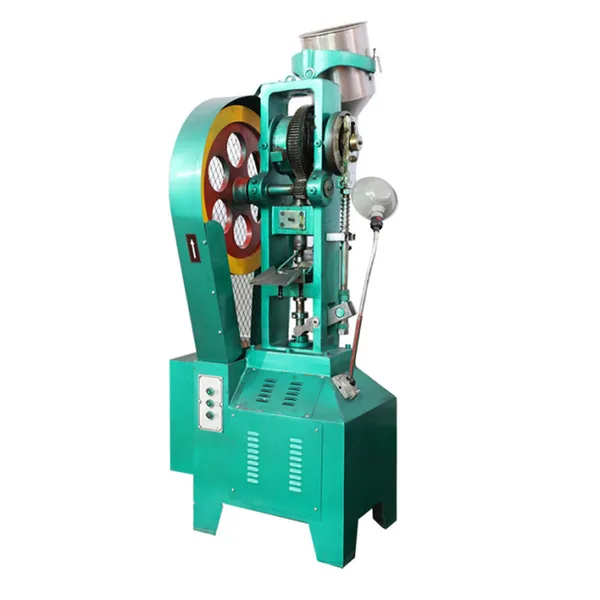

Flower Basket Tablet Press Equipment Single Punch Tablet Compression Machine
Flower Basket Tablet Press Equipment Single Punch Tablet Compression Machine Product Description of Tablet Compression Machine SED-100HY1-D Flower Basket Tablet Press Machine is a medium continuous automatic tablet press which is one of essential equipment for pressing granular raw materials into tablets and medicines taken with water in pharmaceutical, chemical, food and electronic industries. It can be used to press Medicinal tablets, coffee pills, powder metallurgical parts, electronic components, various tablets of pesticide and fertilizer, in small-batch productio
| Place of Origin: | China |
|---|---|
| Brand Name: | SED Pharma |
| Certification: | CE |
| Model Number: | SED-16 |
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden Case |
| Delivery Time: | 35 Days after receiving the deposit |
| Payment Terms: | T/T,L/C, ,Cash |
| Supply Ability: | 30 Sets per month |
Configuration and product details
Technical overview- Name
- Flower Basket Tablet Press Equipment Single Punch Tablet Compression Machine
- Model
- SED-16
- Max. Pressure(kn):
- 15
- Max. Tablet Diameter(mm):
- 4-12
- Max. Tablet Thickness(mm):
- 6
- Production Capacity(pcs/min)
- 6000
- Motor Speed(r/min):
- 1400
- Motor Power(w):
- 370
- material
- stainless steel
- key word
- Tablet Press Machine
Flower Basket Tablet Press Equipment Single Punch Tablet Compression Machine
Product Description of Tablet Compression Machine
SED-100HY1-D Flower Basket Tablet Press Machine is a medium continuous automatic tablet press which is one of essential equipment for pressing granular raw materials into tablets and medicines taken with water in pharmaceutical, chemical, food and electronic industries. It can be used to press Medicinal tablets, coffee pills, powder metallurgical parts, electronic components, various tablets of pesticide and fertilizer, in small-batch production laboratory and hospital.
The machine can press special shaped circular tablets of different kinds, and can also process the tablets of pesticide with both sides are impressed with trademarks, letters and symbol.
Product Parameters of Tablet Compression Machine
| Model | SED-100HY1-D |
| Max. Pressure | 100KN |
| Max. Diameter of Tablet | 40mm |
| Max. Thickness of Tablet | 35mm |
| Max. Filling Depth | 45mm |
| Inner of Fill Circular Tablets | 6-14mm |
| Depth of Fill Circular Tablets | 25mm |
| Capacity | 2760 pcs/h |
| Motor Power | 2.6KW |
| Weight | 750kg |
| Overall Dimension | 666*860*1824mm |
Application of Tablet Compression Machine
