Tablet Press Machine

Easy Operation Stable Rotation Tablet Press Machine

Name: Easy Operation Stable Rotation Tablet Press Machine
Brand: SED Pharma

Easy Operation Stable Rotation Tablet Press Machine Product Overview of Tablet Press Machine SED-420-19Y-B Automatic Rotary Tablet Press is a double-press multifunctional automatic rotary continuous tablet press machine, which presses granular raw materials into tablets. It is mainly used in the production of the pharmaceutical industry, and is also used in chemical, food, electronics and other industrial sectors. It can press special-shaped tablets, double-layer tablets, annular tablets, etc. according to customer requirements. Technique Parameters Model SED-420-1

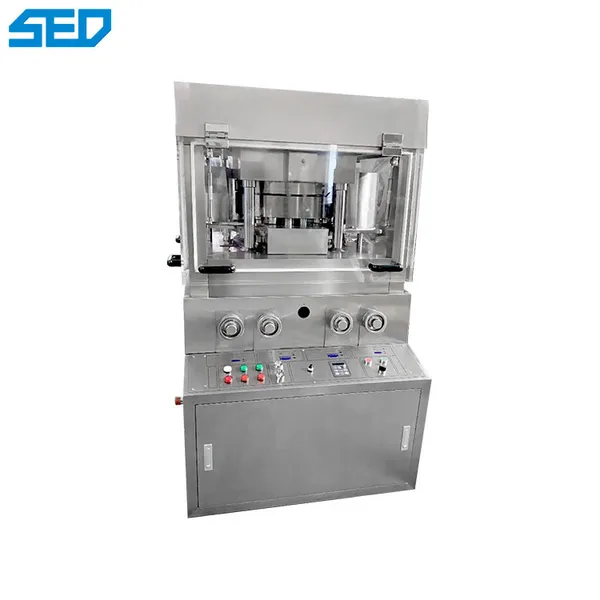

Easy Operation Stable Rotation Tablet Press Machine, view 1

Product Details:

Place of Origin:	China
Brand Name:	SED Pharma
Certification:	CE
Model Number:	SED-420-19Y-B

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	Negotiable
Packaging Details:	Wooden Case
Delivery Time:	30 Days after receiving the deposit
Payment Terms:	T/T,L/C, ,Cash
Supply Ability:	30 Sets Per Month

Request configuration

Configuration and product details

Technical overview

Name: Easy Operation Stable Rotation Tablet Press Machine
Model: SED-420-19Y-B
Pressure(kn): 130
Tablet diameter(mm): 40
Depth of filling(mm): 30
Tablet thickness(mm): 12-16
Turret speed(r/min): 10-25
Production capacity(pcs/h: Two color 17,000, single color 34,000
Motor(kw): 7.5
Dimension(mm): 1300*1500*1850mm
material: stainless steel
key word: Tablet Press Machine

Easy Operation Stable Rotation Tablet Press Machine

Product Overview of Tablet Press Machine

SED-420-19Y-B Automatic Rotary Tablet Press is a double-press multifunctional automatic rotary continuous tablet press machine, which presses granular raw materials into tablets. It is mainly used in the production of the pharmaceutical industry, and is also used in chemical, food, electronics and other industrial sectors. It can press special-shaped tablets, double-layer tablets, annular tablets, etc. according to customer requirements.

Technique Parameters

Model	SED-420-19Y-B
Number of Punch Die	19
Capacity(pcs/h)	Two color 17,000, single color 34,000
Max. Main Pressure	130KN
Max. Tablet Diameter	40mm
Max. Filling Depth	30mm
Max. Tablet Thickness	12-16mm
Turret Speed	10-25rpm
Motor Power	7.5KW
Weight	2000kg
Overall Dimension	130015001850mm

Characteristic

1.The outer casing is fully enclosed, and the material is made of stainless steel, and the inner table is also made of stainless steel, which can maintain the surface gloss and prevent cross-contamination, in line with GMP requirements.
2.Equipped with plexiglass perspective window which could help to observe the status of tablet pressing. The transparent protective cover could be fully opened, easy to clean and maintain.
3.The rotating speed can be adjusted freely.
4.Easy operation, stable rotation, safe and accurate. Optional touch screen and PLC control system are available.
5.The transmission system is sealed in the oil tank under the main body of the machine. It is an independent component that is safely separated and will not pollute each other. The transmission shaft is infiltrated into the oil pool to be fully lubricated, reducing noise and wear.
6.The mechanically installed dust collection device can absorb the flying dust in the pressing room.

Application of Tablet Press Machine

This machine is a new generation product of our factory. This machine is a single-roller continuous automatic tablet press, which is used to press various shapes of tablets and plain tablets. Mainly used in the pharmaceutical industry, but also in chemical, food, electronics and other industries.

Easy Operation Stable Rotation Tablet Press Machine product detail
