Tablet Press Machine

Dual Pressure Multifunctional Rotary Tablet Press Machine

Name: Dual Pressure Multifunctional Rotary Tablet Press Machine
Brand: SED Pharma

Dual Pressure Multifunctional Rotary Tablet Press Machine Product Description of Rotary Tablet Press Machine This machine is a dual pressure multifunctional automatic rotating continuous tablet pressing machine, which presses granular raw materials into tablets. It is mainly used in the production of the pharmaceutical industry, as well as in the chemical, food, electronics and other industrial sectors. According to customer requirements, it can be used to press irregular shaped sheets, double-layer sheets, annular sheets, etc Product Parameters of Rotary Tablet Press

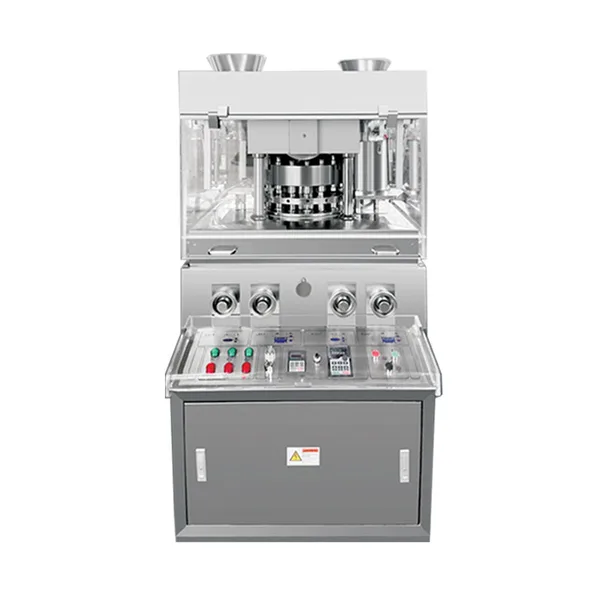

Dual Pressure Multifunctional Rotary Tablet Press Machine, view 1

Dual Pressure Multifunctional Rotary Tablet Press Machine, view 2

Product Details:

Place of Origin:	China
Brand Name:	SED Pharma
Certification:	CE
Model Number:	SED-420-15Y-B

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	Negotiable
Packaging Details:	Wooden Case
Delivery Time:	50-60 Days after receiving the deposit
Payment Terms:	T/T,L/C, ,Cash
Supply Ability:	30 Sets per month

Request configuration

Configuration and product details

Technical overview

Name: Dual Pressure Multifunctional Rotary Tablet Press Machine
Max. Pressure (kn): 100
Max. Dia. of Tablet (mm): 50
Max. Depth of Filling (mm): 30
Max. Thickness of Tablet (mm): 15 mm
Rotate Speed (r/min): 10 rpm
Production Capacity (pcs/h): 10000pcs/h-12000pcs/h
Motor Power (kw): 5.5kw
Outside Size (mm): 920x890x1540mm
Weight (kg): 1400 KG
material: stainless steel
key word: Tablet Press Machine

Dual Pressure Multifunctional Rotary Tablet Press Machine

Product Description of Rotary Tablet Press Machine

This machine is a dual pressure multifunctional automatic rotating continuous tablet pressing machine, which presses granular raw materials into tablets. It is mainly used in the production of the pharmaceutical industry, as well as in the chemical, food, electronics and other industrial sectors. According to customer requirements, it can be used to press irregular shaped sheets, double-layer sheets, annular sheets, etc

Product Parameters of Rotary Tablet Press Machine

Model	SED-420-15Y-B
Number of Punch Die	15
Max.Pressure	130KN
Max.Diameter of Tablet	50 mm
Max.Filling Depth	30 mm
Max.Thickness of Tablet	12-16 mm
Turret Speed	10-25 rpm
Capacity	27000 pcs/h
Motor Power	7.5 kw
Overall Dimension	130015001850 mm
Net Weight	2100 kg

Main Features of Rotary Tablet Press Machine

The outer casing is fully enclosed, and the material is made of stainless steel. The inner table is also made of stainless steel, which can maintain the surface gloss and prevent cross-contamination, in line with GMP requirements.
Equipped with plexiglass perspective window which could help to observe the status of tablet pressing. The transparent protective cover could be fully opened, easy to clean and maintain.
All monitors and operating components are in good order.
Applying with frequency changing, speed regulating apparatus to do electricity regulation. The convenient operation and smooth revolving are safe and correct.
Equipped with over-load protection apparatus. When pressure overloads, the machine will stop automatically.
Equipped with touch screen, easy to operate.
Transmitting system is sealed in the oil box under the main machine which is a separate component .No pollution and easy to send out heat and resist grinding.
Powder-absorbing apparatus could absorb the powder in the piece-pressing room.

Application of Rotary Tablet Press Machine
