Tablet Press Machine
Desktop Single Punch Tablet Press Machine
Desktop Single Punch Tablet Press Machine Product Overview of Tablet Press Machine The machine is suitable for the industries of Chemical, Foodstuff, Electronic and etc. It is used of pressing medicinal tablets, catalysts, sugar tablets, Calcium tablets, Coffee tablets, Powder Metallurgical, Electronic elements and various tablets of pesticide and fertilizer. etc. In such small-batch production, laboratory and hospital fields. Meanwhile, that machine also can press various abnormity and normal tablet, and press the tablets in two sides with printing as well. Prod
| Place of Origin: | China |
|---|---|
| Brand Name: | SED Pharma |
| Certification: | CE |
| Model Number: | SED-5DY-D |
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden Case |
| Delivery Time: | 30 Days after receiving the deposit |
| Payment Terms: | T/T,L/C, ,Cash |
| Supply Ability: | 30 Sets Per Month |
Configuration and product details
Technical overview- Name
- Desktop Single Punch Tablet Press Machine
- Punch Station
- Single Punch
- Number of Dies
- 1
- Production Capacity
- V
- Max Diameter
- 20mm
- Max Thickness
- 6mm
- Max. Filling Depth
- 16mm
- Power
- 0.75KW
- material
- stainless steel
- key word
- Tablet Press Machine
Desktop Single Punch Tablet Press Machine
Product Overview of Tablet Press Machine
The machine is suitable for the industries of Chemical, Foodstuff, Electronic and etc. It is used of pressing medicinal tablets, catalysts, sugar tablets, Calcium tablets, Coffee tablets, Powder Metallurgical, Electronic elements and various tablets of pesticide and fertilizer. etc.
In such small-batch production, laboratory and hospital fields. Meanwhile, that machine also can press various abnormity and normal tablet, and press the tablets in two sides with printing as well.
Product Parameters of Tablet Press Machine
| Model | SED-5DY-D |
| Number of Dies | 1 |
| Production Capacity | 4500 pcs/h |
| Max. Diameter of Tablet | 20mm |
| Max. Thickness of Tablet | 6mm |
| Max. Filling Depth | 16mm |
| Max. Pressure | 50KN |
| Motor Power | 0.75KW |
| Weight | 125kg |
| Overall Dimension (L*W*H) | 700*400*800mm |

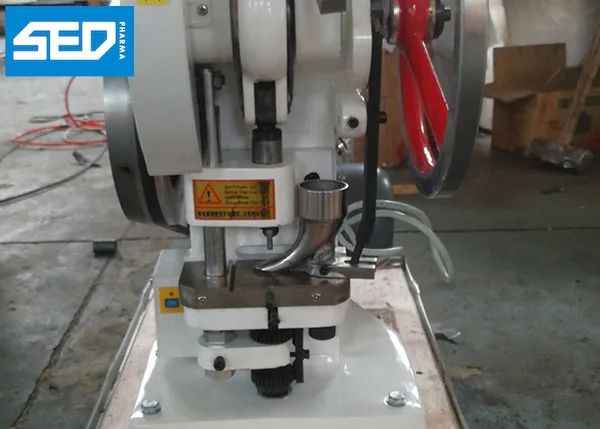

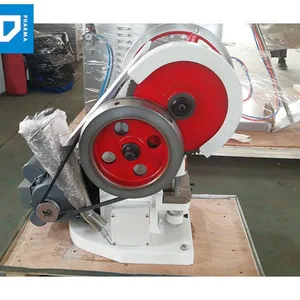

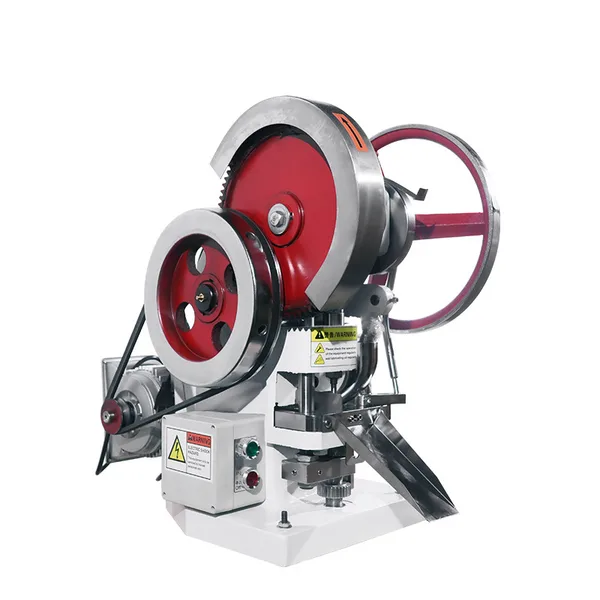

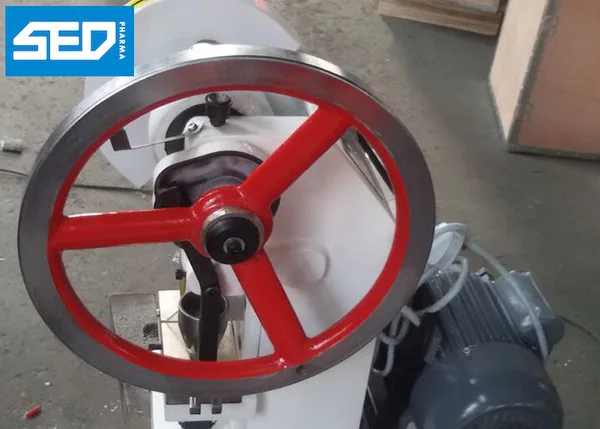

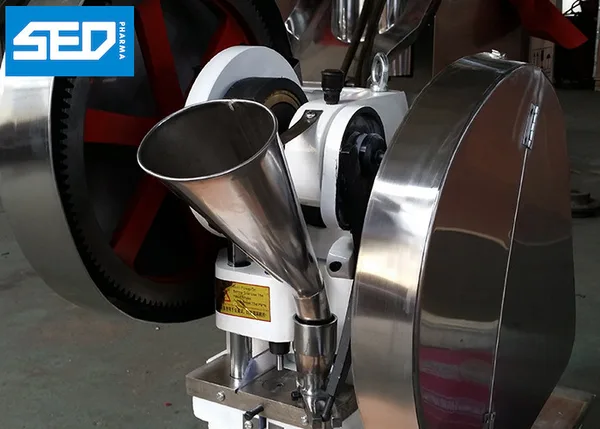

Show of Tablet Press Machine
Application of Tablet Press Machine
Suitable for laboratories and small tablet production and processing industries. It is a small desktop micro-motion continuous press. The machine comes with a die, and by changing the die, tablets of different shapes and sizes can be pressed. Material filling depth and tablet thickness can be adjusted.
