Tablet Press Machine
CE Automatic Rotary Tablet Press Machine Small Tablet Making Machine
CE Automatic Rotary Tablet Press Machine Small Tablet Making Machine Product Overview of Tablet Press Machine This machine is a single Roller continuous automatic tablet press for pressing various kinds of different shape tablets and plain tablets It is mainly used in pharmaceutical industry and also the chemical, food, electronic industries. Characterstic of Tablet Press Machine 1. Design of GMP. 2. High quality all stainless steel constructions. 3. Reliable safety sealing system and dust-proof system. 4. High visibility isolated door to prevent cross con
| Place of Origin: | China |
|---|---|
| Brand Name: | SED Pharma |
| Certification: | CE |
| Model Number: | SED-200-9Y-D |
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden Case |
| Delivery Time: | 35 Days after receiving the deposit |
| Payment Terms: | T/T,L/C, ,Cash |
| Supply Ability: | 30 Sets per month |
Configuration and product details
Technical overview- Name
- CE Automatic Rotary Tablet Press Machine Small Tablet Making Machine
- Model
- SED-200-9Y-D
- Max.pressure(kn)
- 60
- Max.Dia.of Tablet(mm)
- 20
- Max.Depth of Fill(mm)
- 15
- Max.Thickness of Tablet(mm)
- 6
- Overall Size(mm)
- 480*630*1100
- Net Weight(kg)
- 300
- material
- stainless steel
- key word
- Tablet Press Machine
CE Automatic Rotary Tablet Press Machine Small Tablet Making Machine
Product Overview of Tablet Press Machine
This machine is a single Roller continuous automatic tablet press for pressing various kinds of different shape tablets and plain tablets It is mainly used in pharmaceutical industry and also the chemical, food, electronic industries.
Characterstic of Tablet Press Machine
1. Design of GMP.
2. High quality all stainless steel constructions.
3. Reliable safety sealing system and dust-proof system.
4. High visibility isolated door to prevent cross contamination.
5. Easily remove parts for quick machine’s maintenance.
Product Parameters of Tablet Press Machine
| Model | SED200-5Y-D | SED200-7Y-D | SED200-9Y-D | SED200-12Y-D |
| Dies | 5 | 7 | 9 | 12 |
| Max Pressure(kn) | 60 | |||
| Max Diameter of Tablet(mm) | 20 | |||
| Max Depth of Fill(mm) | 15 | |||
| Max Thickness of Tablet(mm) | 6 | |||
| Turret Speed (r/min) | 30 | |||
| Production Capacity (pc/h) | 9000 | 12600 | 16200 | 21600 |
| Motor(kw) | 2.2 | |||
| Overall Size(mm) | 480*630*1100 | |||
| Net Weight(kg) | 300 | |||

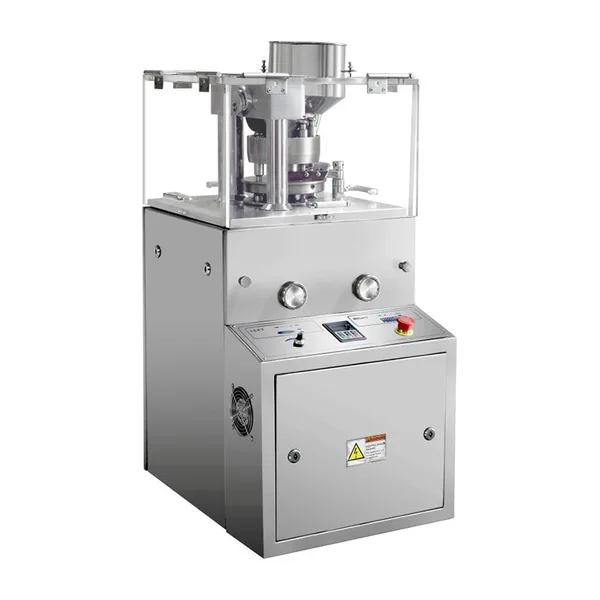

Show of Tablet Press Machine
Application of Tablet Press Machine
This machine is a double-pressing machine with automatic rotation. It has the function of pressing granular materials into round or irregular shaped tablets, such as candy, calcium tablets with double-sided printing, etc. It is widely used in medicine, chemical industry, food, plastic Electronics, powder metallurgy and other industries.
