Automatic Tablet Press Machine Pharma 41 Punch Stations Pill Press Machine

Name: Automatic Tablet Press Machine Pharma 41 Punch Stations Pill Press Machine
Brand: SED Pharma

Automatic Tablet Press Machine Pharma 41 Punch Stations Pill Press Machine Product Overview of Tablet Press Machine SED-420-41Y-B Automatic Rotary Tablet Press is a double-press multifunctional automatic rotary continuous tablet press machine, which presses granular raw materials into tablets. It is mainly used in the production of the pharmaceutical industry, and is also used in chemical, food, electronics and other industrial sectors. It can press special-shaped tablets, double-layer tablets, circular tablets, etc. according to customer requirements. Product Param

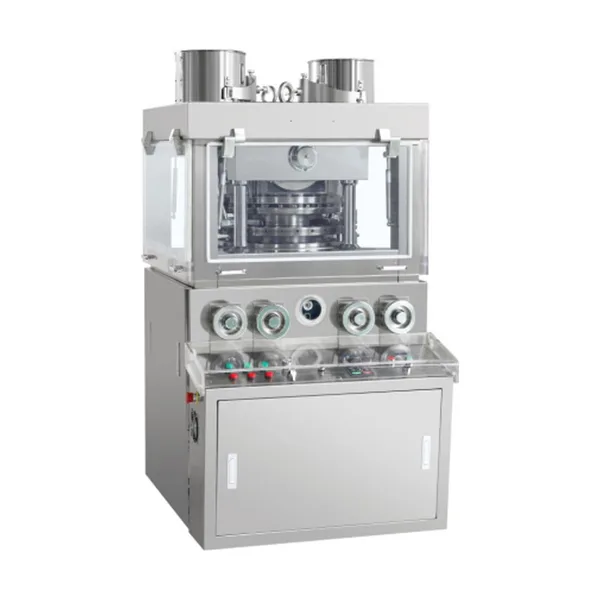

Automatic Tablet Press Machine Pharma 41 Punch Stations Pill Press Machine, view 1

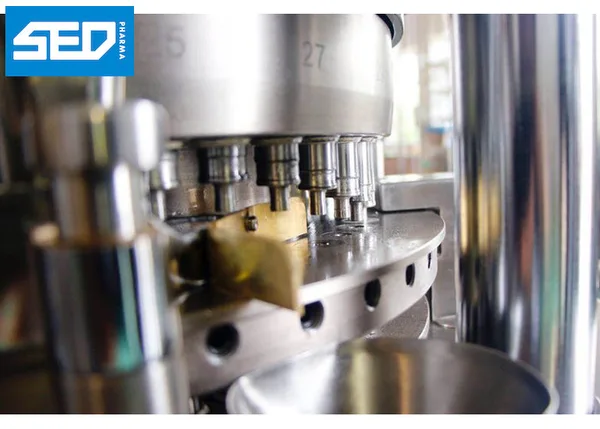

Automatic Tablet Press Machine Pharma 41 Punch Stations Pill Press Machine, view 2

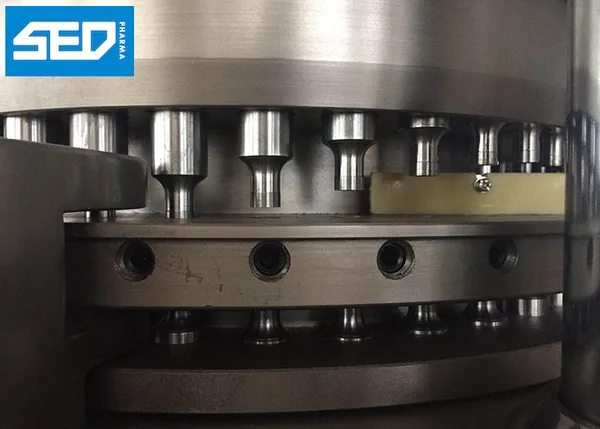

Automatic Tablet Press Machine Pharma 41 Punch Stations Pill Press Machine, view 3

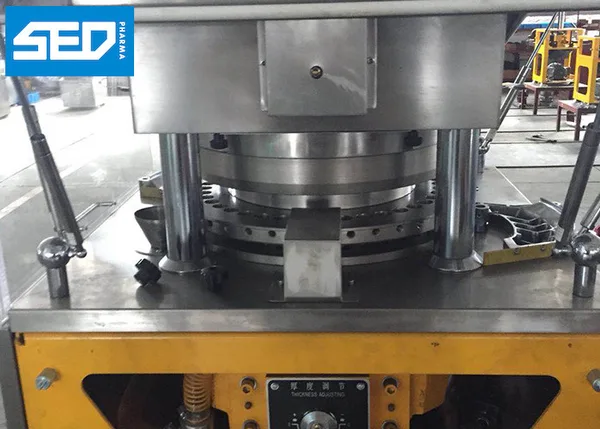

Automatic Tablet Press Machine Pharma 41 Punch Stations Pill Press Machine, view 4

Product Details:

Place of Origin:	China
Brand Name:	SED Pharma
Certification:	CE
Model Number:	SED-420-41Y-B

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	Negotiable
Packaging Details:	Wooden Case
Delivery Time:	30 Days after receiving the deposit
Payment Terms:	T/T,L/C, ,Cash
Supply Ability:	30 Sets Per Month

Request configuration

Configuration and product details

Technical overview

Name: Automatic Tablet Press Machine Pharma 41 Punch Stations Pill Press Machine
Rotary speed of the turret: 14-37rpm
Maximum compression: 80KN
Max. Diameter of tablet: 13mm
Capacity: 170,000 Tablets per hour
Weight: 1700 KGS
Max. Thickness of tablet: 6mm
Punch Station: 41 Punches
material: stainless steel
key word: Tablet Press Machine

Automatic Tablet Press Machine Pharma 41 Punch Stations Pill Press Machine

Product Overview of Tablet Press Machine

SED-420-41Y-B Automatic Rotary Tablet Press is a double-press multifunctional automatic rotary continuous tablet press machine, which presses granular raw materials into tablets. It is mainly used in the production of the pharmaceutical industry, and is also used in chemical, food, electronics and other industrial sectors. It can press special-shaped tablets, double-layer tablets, circular tablets, etc. according to customer requirements.

Product Parameters of Tablet Press Machine

Number of Punch Die	41
Capacity	170000 pcs/h
Max. Working Pressure	80KN
Max. Diameter of Tablet	13mm
Max. Thickness of Tablet	6mm
Max. Filling Depth	15mm
Turret Speed	14-37rpm
Motor Power	4KW
Net Weight	1700kg
Overall Dimension	12309501670mm

Feature of Tablet Press Machine

1.The outer casing is fully enclosed, and the material is made of stainless steel. The inner table is also made of stainless steel, which can maintain the surface gloss and prevent cross-contamination, in line with GMP requirements.
2.Equipped with plexiglass perspective window which could help to observe the status of tablet pressing. The transparent protective cover could be fully opened, easy to clean and maintain.
3.The rotating speed can be adjusted freely.
4.Easy operation with touch screen and PLC control system, stable rotation, safe and accurate.
5.The transmission system is sealed in the oil tank under the main body of the machine. It is an independent component that is safely separated and will not pollute each other. The transmission shaft is infiltrated into the oil pool to be fully lubricated, reducing noise and wear.
6.The mechanically installed dust collection device can absorb the flying dust in the pressing room.
7.When compressing double-layer tablets, the output is halved.

Application of Tablet Press Machine

Rotary tablet press is a new generation product of our factory. It is a continuous and automatic rotary tablet press, which is suitable for pressing tablets of various shapes and ordinary tablets.

Mainly used in pharmaceutical, chemical, food and other industries. , plastics, powder, metallurgy and electronics industries.
