Tablet Press Machine

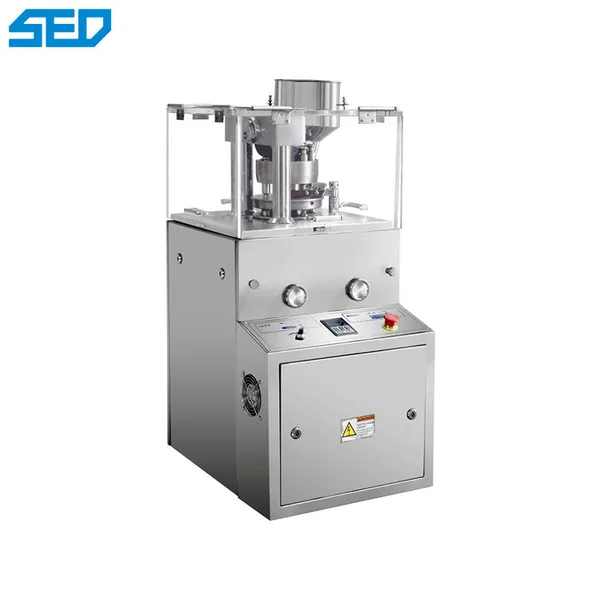

Automatic Pharmaceutical Tablet Press Machine
Automatic Pharmaceutical Tablet Press Machine Product Overview of Tablet Press Machine This machine is a new generation product of our factory, and it is a continuous and automatic rotary tablet press for pressing various kinds of different shape tablets and also plain tablets. It is mainly used in pharmaceutical industry and the chemical, food, plastics, powder, metallurgy and electronic industries. Technique Parameters Type SED200-9Y-B Dies 9 Max. pressure(kn) 60 Max. Dia.of Tablet(mm) 20 Max. Depth of Fill(mm) 15 Max. Thickness of Tablet(mm) 6 Turret Speed(r/m
| Place of Origin: | China |
|---|---|
| Brand Name: | SED Pharma |
| Certification: | CE |
| Model Number: | SED-200-9Y-B |
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden Case |
| Delivery Time: | 35 Days after receiving the deposit |
| Payment Terms: | T/T,L/C, ,Cash |
| Supply Ability: | 30 Sets per month |
Configuration and product details
Technical overview- Name
- Automatic Pharmaceutical Tablet Press Machine
- Model
- SED-200-9Y-B
- Dies
- 9
- Max.Pressure(KN)
- 60
- Max.dia.of table(mm)
- 20
- Motor(KW)
- 2.2
- Max.filling depth(mm)
- 15
- Max.tablet thickness(mm)
- 6
- Rotation speed(r/min)
- 20-30
- Capacity(Pcs/h)
- 10000-16200
- size(mm)
- 480*630*1100
- weight(kg)
- 360
- material
- stainless steel
- key word
- Tablet Press Machine
Automatic Pharmaceutical Tablet Press Machine
Product Overview of Tablet Press Machine
This machine is a new generation product of our factory, and it is a continuous and automatic rotary tablet press for pressing various kinds of different shape tablets and also plain tablets. It is mainly used in pharmaceutical industry and the chemical, food, plastics, powder, metallurgy and electronic industries.
Technique Parameters
| Type | SED200-9Y-B |
| Dies | 9 |
| Max. pressure(kn) | 60 |
| Max. Dia.of Tablet(mm) | 20 |
| Max. Depth of Fill(mm) | 15 |
| Max. Thickness of Tablet(mm) | 6 |
| Turret Speed(r/min) | 20-30 |
| Production Capacity(pc/h) | 10000-16200 |
| Motor(kw) | 2.2 |
| Overall Size(mm) | 480*630*1100 |
| Net Weight(kg) | 360 |
Feature of Tablet Press Machine
1. Design of GMP.
2. High quality all stainless steel constructions.
3. Reliable safety sealing system and dust-proof system.
4. High visibility isolated door to prevent cross contamination.
5. Easily remove parts for quick machine`s maintenance.
Application of Tablet Press Machine
Rotary tablet press is a new generation product of our factory. It is a continuous and automatic rotary tablet press, which is suitable for pressing tablets of various shapes and ordinary tablets. Mainly used in pharmaceutical, chemical, food and other industries. , plastics, powder, metallurgy and electronics industries.
