Semi Automatic Plastic Hose Filling And Sealing Machine With PLC Control



Product Overview of Sealing Machine ​



The process of tube sealing machine eliminates the use of glue and allows the thermoplastic parts to bond to itself. Ultrasonic sealing with the proper time setting and pressure is the fastest most reliable method for a variety of tube material sealing.



* Eliminate use of consumable material

* Produce airtight and watertight seams

* Increase production time



Product Parameters of Sealing Machine

Ultrasonic Power	2000W
Ultrasonic Frequency	20KHz
MaterialPower Supply	AC 220V, 50/60Hz
Delay Time/Weld Time/Seal Time	0.01-9.99S
Stroke	75MM
Working Pressure	0.4-0.7Mpa
Tube Diameter Range	10-50MM
Tube Height Range	50-250MM
Filling Volume Range	A: 5-60 ml B: 10-120 ml C: 25-250 ml D: 50-500 ml
Working Stations	10
Hopper Volume	30L
Capacity	20-35 tubes/min
Packing Dimension	L*W*H 1310*1050*1760 mm
Gross	460 KGS



Feature of Sealing Machine ​



1. Automatic rotary table with 10 tube holders, servo motor control



2. Adopt digital ultrasonic circuit, stable output and performance



3. Machine body of stainless steel, meet with GMP requirement



4. PLC/HMI control, simple operation and parameters setting



5. Machine with mark searching function, more precise sealing



6. Main parts adopt imported components, Japan and Taiwan



7. Suitable for plastic tubes, composite tubes, PE tubes.



8. Compared with traditional type heat sealing method, the ultrasonic tube sealing has the following advantages:



* Fast Sealing, save time

* Sealing is nice looking, no plastic melting overflow

* Lower power consumption, energy saving

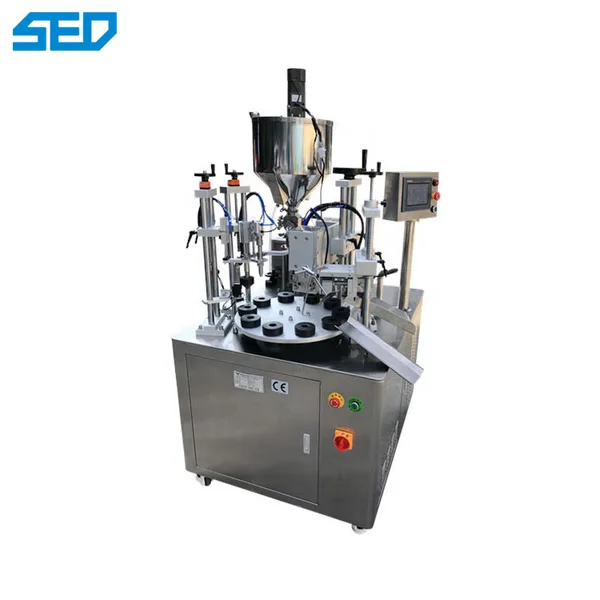

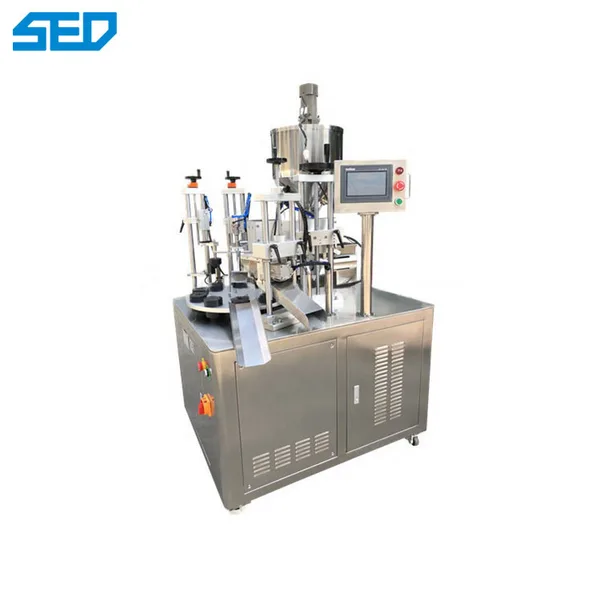

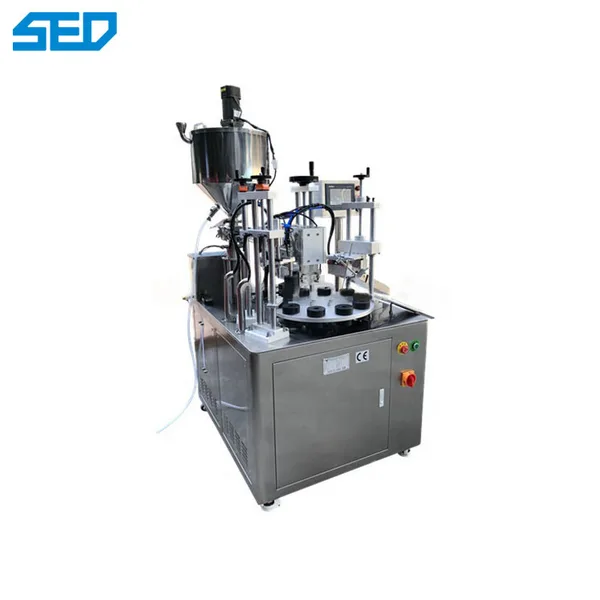

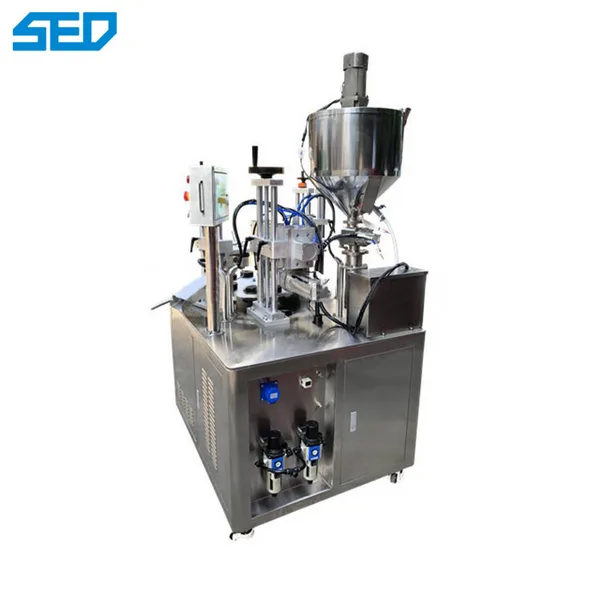

Show of Sealing Machine



Application of Sealing Machine

Especially suitable for the ointment, toothpaste, cosmetic, glue, adhesive, ketchup and art palette industries.
