Tube Filling And Sealing Machine

SED-100RG Industrial Automatic Tube Filling And Sealing Machine High Speed With Double Feeder

Name: SED-100RG Industrial Automatic Tube Filling And Sealing Machine High Speed With Double Feeder
Brand: SED Pharma

SED-100RG Industrial Automatic Tube Filling And Sealing Machine High Speed With Double Feeder Product Description of Tube Filling And Sealing Machine This machine is a high-tech product which successfully developed and designed by adopting advanced technology from abroad and strictly meet GMP requirement. PLC controller and color touch screen are applied and made it possible for programmable control of the machine. It can perform the filling for ointment, cream jellies or viscosity material, sealing or tail folding, batch number embossing (include manufacture date) autom

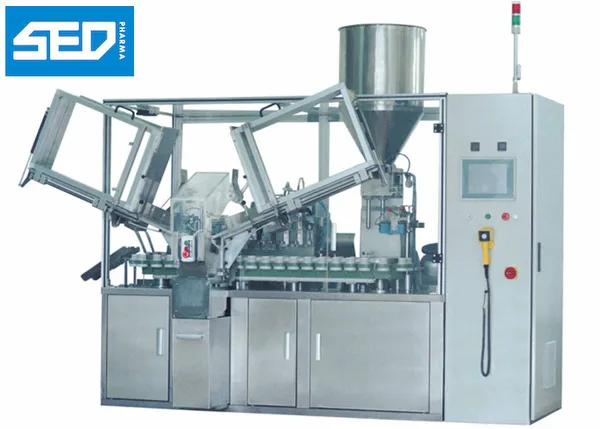

SED-100RG Industrial Automatic Tube Filling And Sealing Machine High Speed With Double Feeder, view 1

SED-100RG Industrial Automatic Tube Filling And Sealing Machine High Speed With Double Feeder, view 2

Product Details:

Place of Origin:	China
Brand Name:	SED Pharma
Certification:	CE
Model Number:	SED-100RG

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	Negotiable
Packaging Details:	Wooden Case
Delivery Time:	35 days after receiving the deposit
Payment Terms:	T/T,L/C, ,Cash
Supply Ability:	30 Sets per month

Request configuration

Configuration and product details

Technical overview

Name: SED-100RG Industrial Automatic Tube Filling And Sealing Machine High Speed With Double Feeder
Weight: 1400Kgs
Operation Speed: 80-120/min/max
Filling Range: 3-250ml
Suitable Tube Length: 50-240mm
Suitable Tube Diameter: 12-50mm
Dimension: 1950×1300×2400mm
Safety Guard Material: Organic Glass
material: stainless steel
key word: Tube Filling And Sealing Machine

SED-100RG Industrial Automatic Tube Filling And Sealing Machine High Speed With Double Feeder

Product Description of Tube Filling And Sealing Machine

This machine is a high-tech product which successfully developed and designed by adopting advanced technology from abroad and strictly meet GMP requirement.

PLC controller and color touch screen are applied and made it possible for programmable control of the machine.

It can perform the filling for ointment, cream jellies or viscosity material, sealing or tail folding, batch number embossing (include manufacture date) automatically.

It’s ideal equipment for aluminum tube filling and sealing for cosmetic, pharmacy, foodstuff and bond industries.

Product Parameters of Tube Filling And Sealing Machine

Power, Main Motor etc.
	Power Supply	50Hz/380V 3P
	Main Motor	2.2KW
	Hot Air Generator	6KW
	Water Chiller	1.5KW
	Jacket barrel heating power	2 KW		Optional Additional price
	Jacket barrel blending power	0.18 KW		Optional Additional price
Production Capacity
	Operation Speed		80-120/min/max
	Filling Range		3-250ml
	Suitable Tube Length		50-240mm
	Suitable Tube Diameter		12-50mm
Pressing Device
	Pressing Guiding Main Component	CHINA
Pneumatic Control System
	Low Voltage Protection	SMC
	Pneumatic Component	SMC
	Working Pressure	0.5-0.6MPa
	Compressed Air Consumption	1.5m³/min

Feature of Tube Filling And Sealing Machine

1. Servo control makes it precise and convenient to adjust the filling amount by touch screen.

2. According to the different length of the tube, height of tube chamber can be adjusted easily by motor. With external reversal feeding system, makes tube charging more convenient and tidy.

3. The mechanical linkage photo sensor precision tolerance is less than 0.2mm. The chromatic aberration scope between tube and eye mark is reduced.

4. Photo-electronic, electric, pneumatic integrative control is applied with the machine. No tube, no filling. It gives an alarm when low pressure occurs. The machine stops automatically if tube error or open the safety door.

5. Three-layer jacket instant heater with inside air heating, it won’t damage the pattern on outer wall of tube and achieves firm and beautiful sealing effect.

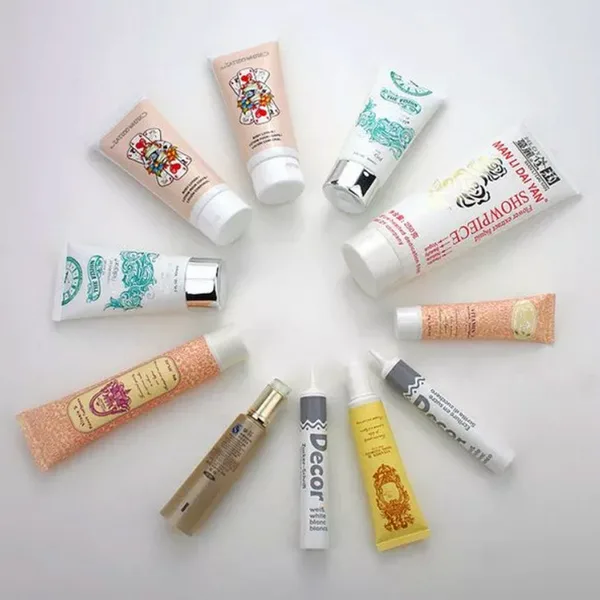

Products Show of Tube Filling And Sealing Machine SED-100RG Industrial Automatic Tube Filling And Sealing Machine High Speed With Double Feeder product detail
