Tube Filling And Sealing Machine

SED-60RG Cream Packing Plastic Tube Filling Sealing Machine Siemens Touch Screen Controlled

Name: SED-60RG Cream Packing Plastic Tube Filling Sealing Machine Siemens Touch Screen Controlled
Brand: SED Pharma

SED-60RG Cream Packing Plastic Tube Filling Sealing Machine Siemens Touch Screen Controlled Product Description of Tube Filling And Sealing Machine This machine is a high-tech product which successfully developed and designed by adopting advanced technology from abroad and strictly meet GMP requirement. PLC controller and color touch screen are applied and made it possible for programmable control of the machine. It can perform the filling for ointment, cream jellies or viscosity material, sealing or tail folding, batch number embossing (include manufacture date) automa

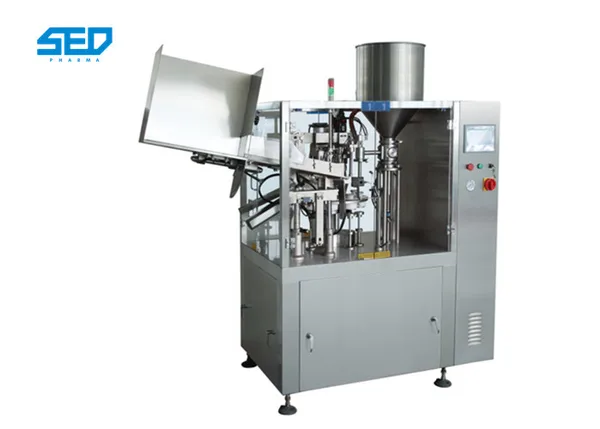

SED-60RG Cream Packing Plastic Tube Filling Sealing Machine Siemens Touch Screen Controlled, view 1

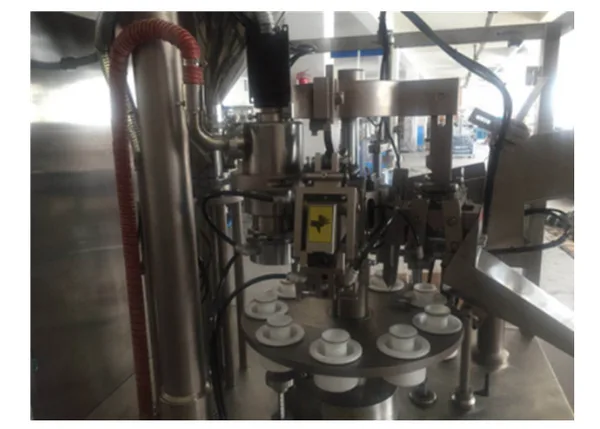

SED-60RG Cream Packing Plastic Tube Filling Sealing Machine Siemens Touch Screen Controlled, view 2

SED-60RG Cream Packing Plastic Tube Filling Sealing Machine Siemens Touch Screen Controlled, view 3

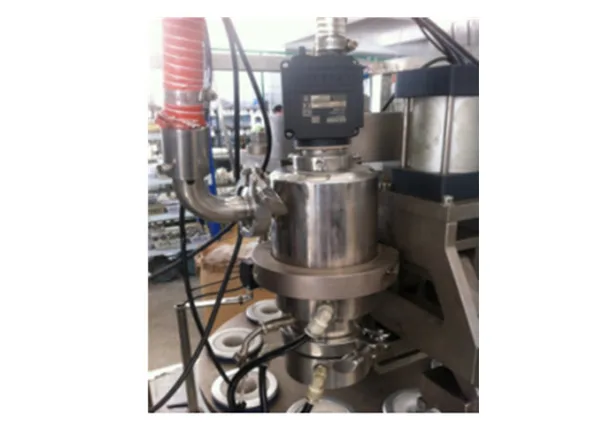

SED-60RG Cream Packing Plastic Tube Filling Sealing Machine Siemens Touch Screen Controlled, view 4

Product Details:

Place of Origin:	China
Brand Name:	SED Pharma
Certification:	CE
Model Number:	SED-60RG

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	Negotiable
Packaging Details:	Wooden Case
Delivery Time:	35 days after receiving the deposit
Payment Terms:	T/T,L/C, ,Cash
Supply Ability:	30 Sets per month

Request configuration

Configuration and product details

Technical overview

Name: SED-60RG Cream Packing Plastic Tube Filling Sealing Machine Siemens Touch Screen Controlled
Item Name: Tube Filling And Sealing Machine
Power supply: 380V 50HZ Three Phase(Customized)
Main motor power: 1.1kw
Heating power: 3kw
Working pressure: 0.5-0.6MPa
Compressed air consumption: 1.1m³/min
key word: Plastic Tube Filling Sealing Machine

SED-60RG Cream Packing Plastic Tube Filling Sealing Machine Siemens Touch Screen Controlled

Product Description of Tube Filling And Sealing Machine

This machine is a high-tech product which successfully developed and designed by adopting advanced technology from abroad and strictly meet GMP requirement.

PLC controller and color touch screen are applied and made it possible for programmable control of the machine. It can perform the filling for ointment, cream jellies or viscosity material, sealing or tail folding, batch number embossing (include manufacture date) automatically.

It’s ideal equipment for aluminum tube filling and sealing for cosmetic, pharmacy, foodstuff and bond industries.

Product Parameters of Tube Filling And Sealing Machine

Name	Data
Dimension (L×W×H)	1950×1000×1800mm
Weight	850Kg
Power supply	50Hz/380V 3P
Main motor power	1.1KW
Heating power	3KW
Water chiller power	1.5KW
Speed	30-50/min/max
Filling range	3-250ml
Tube length	50-210mm
Tube diameter	12-50mm

Advantages of Tube Filling And Sealing Machine

1) According to the different length of the tube, height of tube chamber can be adjusted easily by motor. With external reversal feeding system, makes tube charging more convenient and tidy.

2) The mechanical linkage photo sensor precision tolerance is less than 0.2mm. The chromatic aberration scope between tube and eye mark is reduced.

3) Photo-electronic, electric, pneumatic integrative control is applied with the machine. No tube, no filling. It gives an alarm when low pressure occurs. The machine stops automatically if tube error or open the safety door.

4) Three-layer jacket instant heater with inside air heating, it won’t damage the pattern on outer wall of tube and achieves firm and beautiful sealing effect.

Products Show of Tube Filling And Sealing Machine
