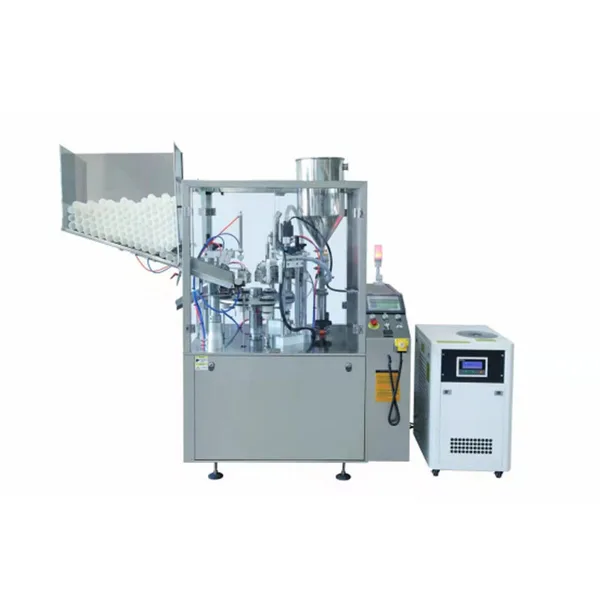

Full Automatic Pharmaceutical Equipment Cream Filling Capping Sealing Production Line

Product Overview of Pipe Filling Sealing Machine



The automatic filling and sealing machine is suitable for the design and manufacture of aluminum tube and plastic tube sealing and filling tube in cosmetics, medicine, food, cement and other industries.



The first station fills the mold, then rotates with the turntable, rotates to the second station, marks the test tube, fills the tube into the nitrogen bottle at the third station, enters the tube filling and installation at the fourth station, enters the heating, A series of sealing stations such as bending, compression, marking, cooling, cutting, etc.,



and twisting to the final station 12 when the finished product is exported. Each tube has to go through a series of processes, and finally complete the charging seal.

The main structure of the machine is composed of main transmission mechanism, conveying mechanism, rotary mechanism, sealing mechanism, additional and electrical control system.



Feature of Pipe Filling Sealing Machine



• Movable. The machine is easy to relocate to any place you want.

• Safe and easy to operate with PLC control system.

• Strong and patterned seal with ultrasonic technology.

• Fully automatic tube loading, filling, sealing, cutting and output process.



Product Parameters of Pipe Filling Sealing Machine

Model	SED-40RG-D
Power source	3PH 380V/220v 50Hz
Power	6 Kw
Tube material	plastic tube,Composite tube
Tube diameter	Ф16-Ф50mm
Tube lenght	50-200mm(customizable)
Filling volume	5-260ml( Adjustable)
Product capacity(Pc/min)	20-40
Air supply	0.6-0.8Mpa
Heat sealing power	3.0 KW
Chiller power	1.4KW
Overall dimension(mm)	1900*900*1850(L*W*H)
Machine weight(KG)	360KG



Application of Pipe Filling Sealing Machine

Tube filling and sealing machine, mainly used for positioning, filling, sealing and printing of aluminum and metal tubes. Widely used in pharmaceuticals, cosmetics, food, chemicals, etc.
