Tube Filling And Sealing Machine

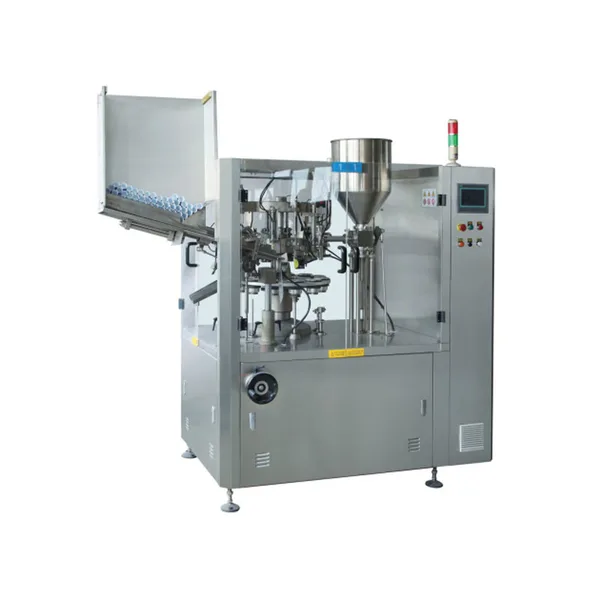

Automatic Plastic And Flexible Pipe Filling Sealing Machine
This machine is a high-tech product which successfully developed and designed by adopting advanced technology from abroad and strictly meet GMP requirement.
| Place of Origin: | China |
|---|---|
| Brand Name: | SED Pharma |
| Certification: | CE |
| Model Number: | SED-80RG-A |
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden Case |
| Delivery Time: | 50-60 Days after receiving the deposit |
| Payment Terms: | T/T,L/C,,Cash |
| Supply Ability: | 30 Sets per month |
Configuration and product details
Technical overview- Name
- Automatic Plastic And Flexible Pipe Filling Sealing Machine
- Model
- SED-80RG-A
- Application
- Aluminum tube
- Capcaity
- 50-75/min/max
- Filling volum
- Plastic tube, Laminated tubes, 3-250ml
- Whole Machine(L×W×H)
- 2200×1200×1900mm
- Weight
- (about)1200Kg
- key word
- Tube Filling Sealing Machine
Product Overview of Pipe Filling Sealing Machine
This machine is a high-tech product which successfully developed and designed by adopting advanced technology from abroad and strictly meet GMP requirement. PLC controller and color touch screen are applied and made it possible for programmable control of the machine. It can perform the filling for ointment, cream jellies or viscosity material, sealing or tail folding, batch number embossing (include manufacture date) automatically. It’s ideal equipment for plastic and laminated tube filling and sealing for cosmetic, pharmacy, foodstuff and bond industries.
Product Parameters of Pipe Filling Sealing Machine
|
SED-80RG-A AUTO TUBE FILLING AND SEALING MACHINE
|
|||||||
|
Configuration Standard
|
Technical Parameters
|
Remarks
|
|||||
|
|||||||
|
|
≈3m2 | ||||||
| Main machine working Area | ≈15㎡ | ||||||
| Water Chiller Landing Area | ≈1㎡ | ||||||
| Water chiller occupy land Area | ≈4㎡ | ||||||
| Whole Machine(L×W×H) | 2200×1200×1900mm | ||||||
| Integrated Structure | Union mode | ||||||
| Weight | (about)1200Kg | ||||||
|
|||||||
| Body Material | 304 | ||||||
| Opening Mode of Safety Guard | Handle Door | ||||||
| Safety Guard Material | Organic Glass | ||||||
| Frame Below Platform | Stainless Steel | ||||||
| Body Shape | Square-shape | ||||||
|
|||||||
| Power Supply | 50Hz/380V 3P | ||||||
| Main Motor | 1.5KW | ||||||
| Hot Air Generator | 3KW | ||||||
| Jacket barrel heating power | 2 KW | Optional | |||||
| Jacket barrel blending power | 0.18 KW | Optional | |||||
|
|||||||
| Operation Speed | 50-75/min/max | ||||||
| Filling Range | Plastic tube, Laminated tubes, 3-250ml | ||||||
| Suitable Tube Length | 50-210mm |
Tube length more than 210mm Can be customized |
|||||
| Suitable Tube Diameter | 13-50mm | ||||||
Feature of Pipe Filling Sealing Machine
1. No tube no filling.
2. Have counting function and prompt function when reach set amount.
3. It has error alarm, stopping and alarm for door opening and low air pressure, alarming function for overloading, and has the emergency stop.
4. Automatic batch number printing system and automatic tube discharging.
5. Automatic tube feeding and adopts eye mark sensor.
6. Automatic filling, tail cutting function for viscous material.
7. Main drive system located at the bottom of the machine table, with the feature of safe and without pollution.
8. Filling and sealing part are easy to observation and operation.
9. Smooth and flat surface, have no dead corner, easy for cleaning and maintenance
10. Compact structure, simple and convenient operation, the machine is applicable to many industries such as medicine, food and daily chemical industry etc.
Application of Pipe Filling Sealing Machine
The automatic tube paste filling and sealing machine is widely used in medicine, cosmetics and other industries. Suitable for all kinds of hose potting paste, lotion, oil, etc.
![]()
