Tube Filling And Sealing Machine
Efficient Semi Automatic Tube Filling And Sealing Machine Plastic Laminated Tube Use
The machine is used for filling cream (paste)-like and liquid-like materials into plastic tube or plastic-aluminium laminated tube and then sealing them, pressing data or product numbers on the end of the tube and cutting the end.
| Place of Origin: | China |
|---|---|
| Brand Name: | SED Pharma |
| Certification: | CE |
| Model Number: | SED-30RG |
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden Case |
| Delivery Time: | 35 days after receiving the deposit |
| Payment Terms: | T/T,L/C, ,Cash |
| Supply Ability: | 30 Sets per month |
Configuration and product details
Technical overview- Name
- Efficient Semi Automatic Tube Filling And Sealing Machine Plastic Laminated Tube Use
- Condition
- New
- Tube Material
- Plastic Tube, Laminated Tube,Aluminum Tube
- Filling Volume
- 10-50ml,50-100ml,100-200ml
- Tube Diameter
- Φ16mm-Φ50mm
- Max Tube Height
- 250mm
- Driven Type
- Electricity
- Power
- 4KW
- material
- stainless steel
- key word
- Tube Sealing Machine
Efficient Semi Automatic Tube Filling And Sealing Machine Plastic Laminated Tube Use
Product Description of Tube Sealing Machine
The machine is used for filling cream (paste)-like and liquid-like materials into plastic tube or plastic-aluminium laminated tube and then
sealing them, pressing data or product numbers on the end of the tube and cutting the end.
This machine is widely used in daily cosmetics, medicine and food industries.
Characteristics: A high efficient heater and a stable flow meter imported from Germany are applied. They provide a reliable thermo-air heating system, which makes the seal firm and high efficient. The filling heads in different specifications are prepared for materials in different thickness.
Product Parameters of Tube Sealing Machine
| Tube Material | Plastic tube, laminated tube | ||
| Tube Diameter | Φ16mm-Φ50mm | ||
| Filling Volume | 10-50ml | 50-100ml | 100-200ml |
| Filling Accuracy | ≤±5% | ≤±3% | ≤±2% |
| Product Capacity (Pcs/min) | 25-30 | ||
| Air Consumption | 0.6m³/min | ||
| Power | 4.2kw (380V/220V 50Hz) | ||
| Overall Dimension(mm) | 1100*850*1500mm (L*W*H) | ||
| Machine Weight (kg) | 350kg | ||

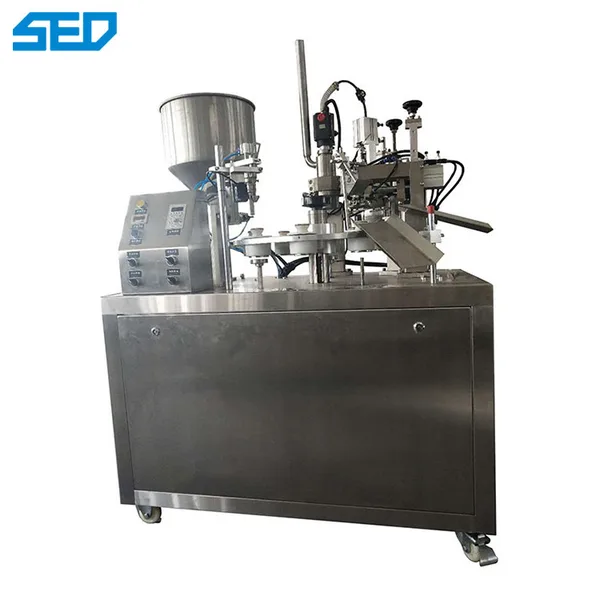

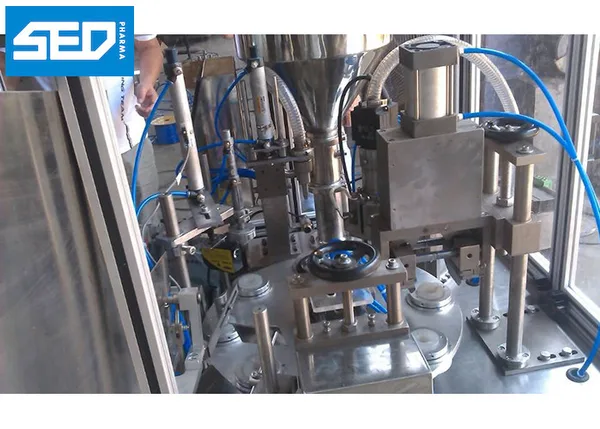

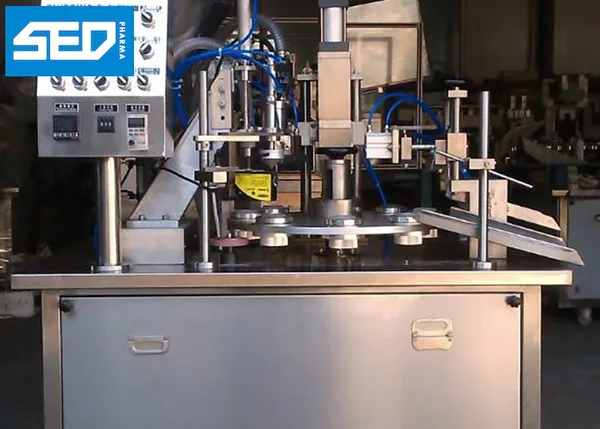

Products Show of Tube Sealing Machine
![]()
![]()
