Tube Filling And Sealing Machine

SED-80RG Plastic Tube Filling And Sealing Machine Automatic Tube Filler And Sealer

Name: SED-80RG Plastic Tube Filling And Sealing Machine Automatic Tube Filler And Sealer
Brand: SED Pharma

SED-80RG Plastic Tube Filling And Sealing Machine Automatic Tube Filler And Sealer Product Description of Tube Filler And Sealer This machine is a high-tech product which successfully developed and designed by adopting advanced technology from abroad and strictly meet GMP requirement. PLC controller and color touch screen are applied and made it possible for programmable control of the machine. It can perform the filling for ointment, cream jellies or viscosity material, sealing or tail folding, batch number embossing (include manufacture date) automatically. It’s ideal

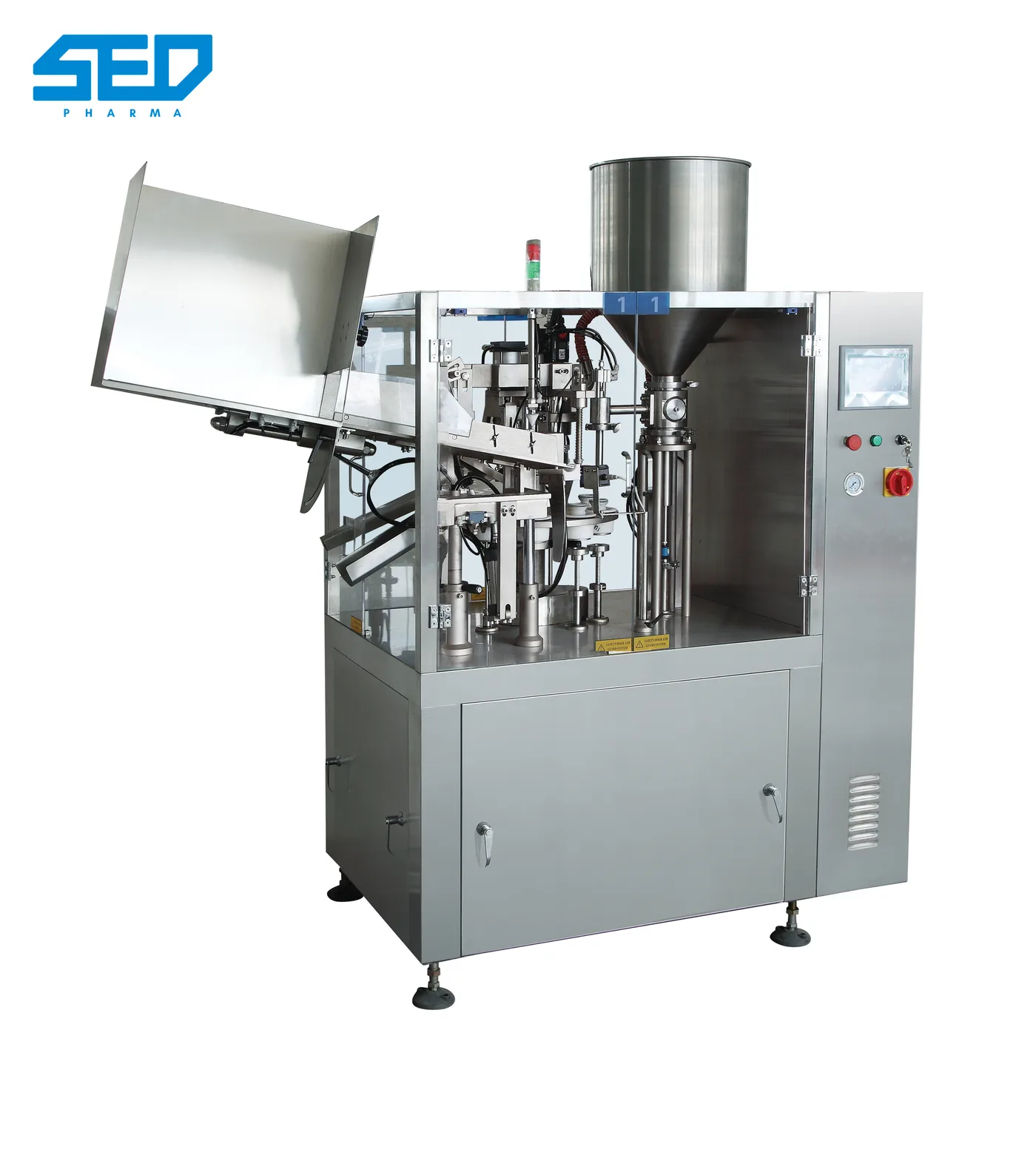

SED-80RG Plastic Tube Filling And Sealing Machine Automatic Tube Filler And Sealer, view 1

SED-80RG Plastic Tube Filling And Sealing Machine Automatic Tube Filler And Sealer, view 2

Product Details:

Place of Origin:	China
Brand Name:	SED Pharma
Certification:	CE
Model Number:	SED-80RG

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	Negotiable
Packaging Details:	Wooden Case
Delivery Time:	35 days after receiving the deposit
Payment Terms:	T/T,L/C, ,Cash
Supply Ability:	30 Sets per month

Request configuration

Configuration and product details

Technical overview

Name: SED-80RG Plastic Tube Filling And Sealing Machine Automatic Tube Filler And Sealer
Machine Dimension: 2.5X1.2X2.4m
Operation Speed: Max 75 tubes per minute
Filling Range: Plastic tube 3-240ml
Tube Diameter: 12.5-50mm
Working Pressure: 0.5-0.6MPa
Compressed Air Consumption: 1.5m³/min
Weight: 1200kgs
material: stainless steel
key word: Automatic Tube Filler And Sealer

SED-80RG Plastic Tube Filling And Sealing Machine Automatic Tube Filler And Sealer

Product Description of Tube Filler And Sealer
This machine is a high-tech product which successfully developed and designed by adopting advanced technology from abroad and strictly meet GMP requirement.
PLC controller and color touch screen are applied and made it possible for programmable control of the machine.
It can perform the filling for ointment, cream jellies or viscosity material, sealing or tail folding, batch number embossing (include manufacture date) automatically. It’s ideal equipment for aluminum tube filling and sealing for cosmetic, pharmacy, foodstuff and bond industries.

Product Parameters of Tube Filler And Sealer

Power, Main Motor etc.
	Power Supply	50Hz/380V 3P
	Main Motor	1.5KW
	Hot Air Generator	3KW
	Jacket barrel heating power	3 KW		Optional,needs extra cost
	Jacket barrel blending power	0.18 KW		Optional,needs extra cost
Production Capacity
	Operation Speed		75/min/max
	Filling Range		Plastic tube 3-240ml
	Suitable Tube Length		210mm
	Suitable Tube Diameter		12.5-50mm
Pressing Device
	Pressing Guiding Main Component	SMC
Pneumatic Control System
	Low Voltage Protection	SMC
	Pneumatic Component	AIRTAC
	Working Pressure	0.5-0.6MPa
	Compressed Air Consumption	1.5m³/min

Advantages of Tube Filler And Sealer

1. Servo control makes it precise and convenient to adjust the filling amount by touch screen.

2. According to the different length of the tube, height of tube chamber can be adjusted easily by motor. With external reversal feeding system, makes tube charging more convenient and tidy.

3. The mechanical linkage photo sensor precision tolerance is less than 0.2mm. The chromatic aberration scope between tube and eye mark is reduced.

4. Photo-electronic, electric, pneumatic integrative control is applied with the machine. No tube, no filling. It gives an alarm when low pressure occurs. The machine stops automatically if tube error or open the safety door.

5. Three-layer jacket instant heater with inside air heating, it won’t damage the pattern on outer wall of tube and achieves firm and beautiful sealing effect.

Products Show of Tube Filler And Sealer
SED-80RG Plastic Tube Filling And Sealing Machine Automatic Tube Filler And Sealer product detail

Application of Tube Filler And Sealer
Automatic tube filling and sealing machine is suitable for filling and sealing aluminum tubes, and is widely used in daily chemical, pharmaceutical, food, chemical, cosmetics, toothpaste and other industries.

SED-80RG Plastic Tube Filling And Sealing Machine Automatic Tube Filler And Sealer product detail
