Tube Filling And Sealing Machine

SED-80RG-A 60 pcs/min Semi Automatic Packing Machine 220V / 50Hz Plastic Filling And Sealing Machine

Name: SED-80RG-A 60 pcs/min Semi Automatic Packing Machine 220V / 50Hz Plastic Filling And Sealing Machine
Brand: SED Pharma

SED-80RG-A 60 pcs/min Semi Automatic Packing Machine 220V / 50Hz Plastic Filling And Sealing Machine Product description of Packing Machine Full automatic composite tube filling and sealing machine, is mainly applied to filling and sealing of the container with aluminum tube as packing materials. Paste and liquid is filled by enclosed and semi-enclosed way, no leakage sealing. Tube filling weight and capacity is consistent. Filling and sealing are finished completely atone time. This model is widely used in areas of pharmaceutical, cosmetic, food, chemical, etc.

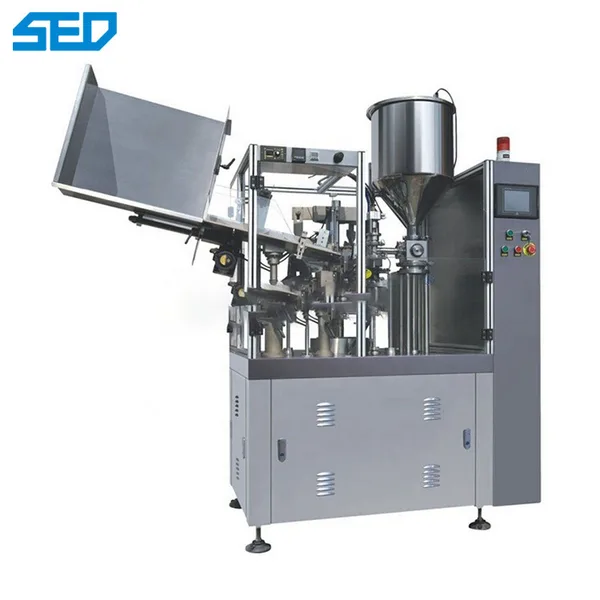

SED-80RG-A 60 pcs/min Semi Automatic Packing Machine 220V / 50Hz Plastic Filling And Sealing Machine, view 1

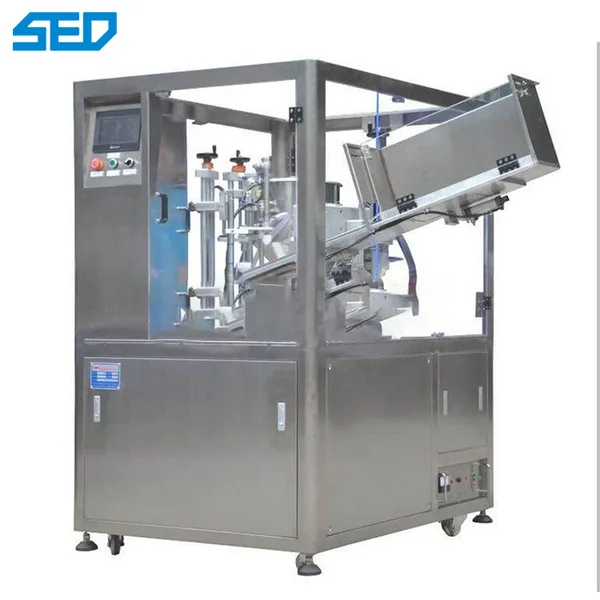

SED-80RG-A 60 pcs/min Semi Automatic Packing Machine 220V / 50Hz Plastic Filling And Sealing Machine, view 2

Product Details:

Place of Origin:	China
Brand Name:	SED Pharma
Certification:	CE
Model Number:	SED-80RG-A

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	Negotiable
Packaging Details:	Wooden Case
Delivery Time:	50-60 Days after receiving the deposit
Payment Terms:	T/T,L/C, ,Cash
Supply Ability:	30 Sets per month

Request configuration

Configuration and product details

Technical overview

Name: SED-80RG-A 60 pcs/min Semi Automatic Packing Machine 220V / 50Hz Plastic Filling And Sealing Machine
Voltage: 220V/50Hz
Applied material of tube: Aluminum tube
Filling range: A:5-30ml B:30-150ml
Filling speed: 40-60 pcs/min
Tube pucking model: 16 pieces/set, customized according to client’s tube
Tube diameter: φ19-φ50mm
Air compressor: Pressure: 0.1-0.3Mpa, Air flow: 0.2m³/min
material: stainless steel
key word: Automatic Packing Machine

SED-80RG-A 60 pcs/min Semi Automatic Packing Machine 220V / 50Hz Plastic Filling And Sealing Machine

Product description of Packing Machine

Full automatic composite tube filling and sealing machine, is mainly applied to filling and sealing of the container with aluminum tube as packing materials. Paste and liquid is filled by enclosed and semi-enclosed way, no leakage sealing.

Tube filling weight and capacity is consistent. Filling and sealing are finished completely atone time. This model is widely used in areas of pharmaceutical, cosmetic, food, chemical, etc.

main parameter of Packing Machine

No	Item	Description	Remark
1	Voltage	220V/50Hz	Can be customized
2	Applied material of tube	Aluminum tube	Can be customized
3	Filling range	A:5-30ml B:30-150ml	Can be customized
4	Filling speed	40-60 pcs/min
5	Tube pucking model	16 pieces/set, customized according to client’s tube
6	Tube diameter	φ19-φ50mm	Can be customized
7	Hopper	50L
8	Air compressor	Pressure: 0.1-0.3Mpa, Air flow: 0.2m³/min
9	Motor	1.5kw
10	Filling accuracy	±1%
11	Dimension	1750×950×1850mm
12	Overall weight	250kg

main features of Packing Machine

1. This model adopts mechanical structure, smooth and fast operation, high efficiency, low noise, simple structure, convenient operation and maintenance with low fault.

2. Parts touching material adopt high quality stainless steel (commonly adopts SUS304, SUS316L for medical).

3. Particular valve structure realizes double applied to paste and liquid filling in this machine.

4. It also has the advantages of firm sealing, high speed, automatic and precise position, PLC control system, and various sealing machine makes the sealing end in different shaped. Assembled with dust-proof of organic glass.

Control system adopts advanced intelligent HMI system, all parameter can be dynamic displayed, adjusted and set on large touch-screen, including motor speed, production speed, etc.

SED-80RG-A 60 pcs/min Semi Automatic Packing Machine 220V / 50Hz Plastic Filling And Sealing Machine product detail
