SED-60RG-A Composite Hose Tube Filling And Sealing Machine For 10-50mm Automatic Packing Machine Tube Diameter



SED-60RG-A ​Composite Hose Tube Filling And Sealing Machine For 10-50mm Automatic Packing Machine Tube Diameter



Product description of Filling And Sealing Machine



Automatic hose tube filling and sealing machine is suitable for filling all kinds of pty and viscous fluid and the materials alike,intopltic and composite metal tubes and then internally heating tubes,sealing and printing lot number.



It is used in the industries of pharmaceutics, foodstuffs,cosmetic and daliy chemicals.



Product  Parameters of Filling And Sealing Machine

Filling volume	5-250ml(tube)
Filling accuracy	≤±1%
Capacity	1800-2400(tubes/h Adjustable)
Tube diameter	10-50mm
Tube length	210mm (Max. Length)
Hopper volume	40 L
Power	380/220V(Optional)
Air pressure	0.5-0.7MPa
Equipped motor	1.1 Kw
Air feeding	0.37Kw
Convulsions	0.37Kw
Hot air	3.0Kw
Dimension	1900×850×1900mm LxWxH
Weight	(Approx) 750kgs



main features of Filling And Sealing Machine



1.With Taiwan's E touch screen and Delta's PLC control system employed,convenient,visualized and reliable non-touch operation of the machine is effted compact design and auto tube feed. Driving part fully-closed.



2.Tube  feeding,marking identification filling,hot air sealing,code printing,trimming and ejecting out the tube conducted by automatic system.Tube feeding is conducted pneumatically,accurately and reliably.



3.Autopicketage effected by photoelectric inductance.Ey adjustment and dismantling.



4.Intelligenttemp.control and cooling system makes operation ey and sealing reliable. With ey and quick adjustment, it is suitable for usiong multiple kinds of soft tubes for filling.



5.The part contacting materials is made of 316L stainless steel,clean,sanitary and conforming to CMP;



6.With safety device,the machine is shut down when the door is opened,and filling carried out only with tubes fed.



7.ube feeding and Tube washing , marking identification, filling, hot air sealing, codeprinting trimming and ejecting out the tube conducted by a fully auto control system.



8.ube washing and feeding are conducted pneumatically, accurate and reliable.



9.utopicketage affected by photoelectric inductance.

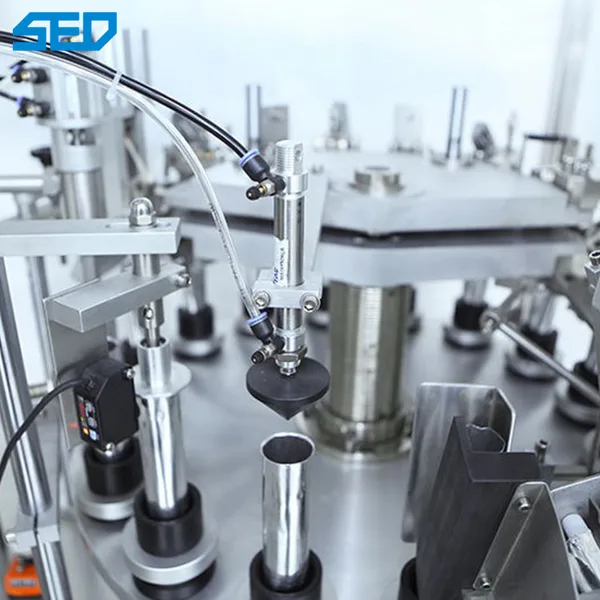

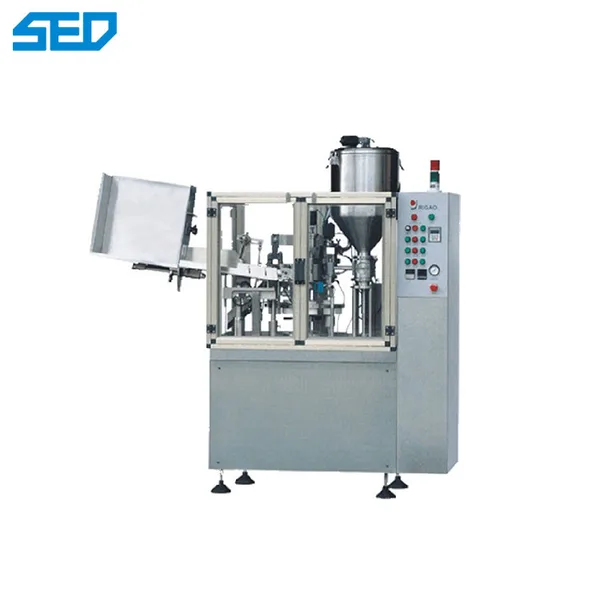

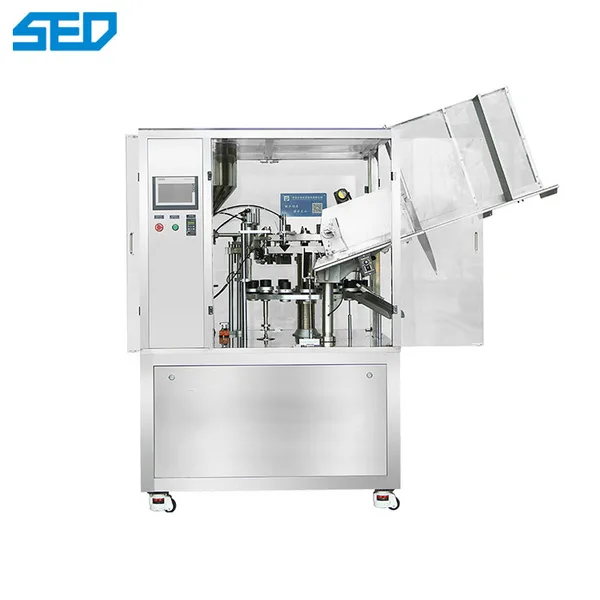

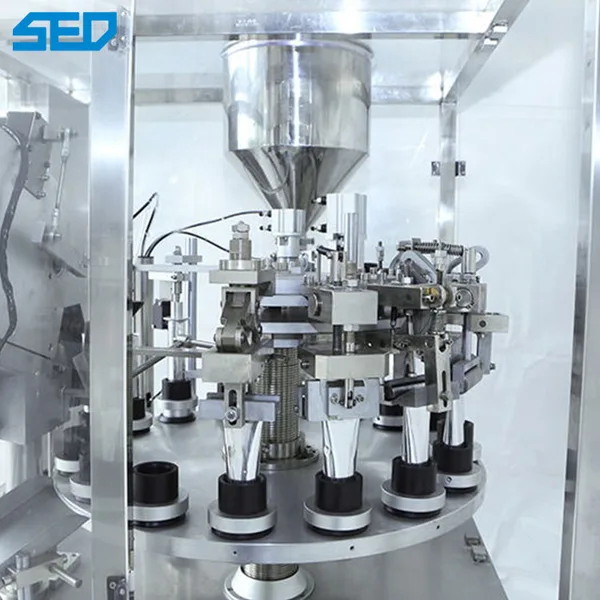

Product Show of Filling And Sealing Machine

Application of Filling And Sealing Machine



The automatic ultrasonic tube filling and sealing machine is widely used for filling and sealing of plastic, PE, aluminum laminated tubes in food, medicine, cosmetics, chemical industry, etc.
