Tube Filling And Sealing Machine
SED-30RG-A Stainless Steel Glue Hose Sealing Machine 30-50pcs / Min Automatic Packing Machine Capacity High-Precision
SED-30RG-A Stainless Steel Glue Hose Sealing Machine 30-50pcs / Min Automatic Packing Machine Capacity High-Precision Product Overview of Filling And Sealing Machine This plastic tube fillling and sealing machines is mainly used in cosmestic, chemical, and Pharmaceutical industry. with easy operation and wonderful working performance, it has become our best seller in filling and sealing machines. especially suitable for cleansers, hand cream, BB cream, toothpaste, etc. We have both semi-auto type and full-auto type, so no matter you are a large scale manufacturer or
| Place of Origin: | China |
|---|---|
| Brand Name: | SED Pharma |
| Certification: | CE |
| Model Number: | SED-30RG-A |
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden Case |
| Delivery Time: | 50-60 Days after receiving the deposit |
| Payment Terms: | T/T,L/C, ,Cash |
| Supply Ability: | 30 Sets per month |
Configuration and product details
Technical overview- Name
- SED-30RG-A Stainless Steel Glue Hose Sealing Machine 30-50pcs / Min Automatic Packing Machine Capacity High-Precision
- Material
- Stainless steel
- Capacity
- 30-50pcs /min
- Filling range
- 3-120ml/pcs
- Motor power
- 1.1kw
- Working pressure
- 0.40-0.50MPa
- key word
- Filling And Sealing Machine
SED-30RG-A Stainless Steel Glue Hose Sealing Machine 30-50pcs / Min Automatic Packing Machine Capacity High-Precision
Product Overview of Filling And Sealing Machine
This plastic tube fillling and sealing machines is mainly used in cosmestic, chemical, and Pharmaceutical industry. with easy operation and wonderful working performance, it has become our best seller in filling and sealing machines. especially suitable for cleansers, hand cream, BB cream, toothpaste, etc.
We have both semi-auto type and full-auto type, so no matter you are a large scale manufacturer or a small factory, there is always a suitable type machine waiting for you.
Product Parameters of Filling And Sealing Machine
| Material | Stainless steel |
| Capacity | 30-50pcs /min |
| Filling range | 3-120ml/pcs |
| Filling error | ≤±0.5% |
| Motor power | 1.1kw |
| Heating power | 0.6kw |
| Working pressure | 0.40-0.50MPa |
| Displacement | <600L/min |
| Dimension(L*W*H) | 1950*750*1850(mm) |
| Weight | 700kg |
working principle of Filling And Sealing Machine
This automatic filling sealing is made up of stainless steel, controlled by button in the working process. with manually feeding the plastic tubes, 8-16 working stations rotate automatically, can achieve quantity fillling , automatically cutting, heat sealing, etc Various processes until the final products come out.
The whole process is totally controlled by full stroke of the cylinder, convenient to adjust the filling quantity and filling speed.
Feature of Filling And Sealing Machine
1. suitable for plastic or Composite hose filling, sealing, coding and cutting, with beautiful and stable sealing effects, high accurancy.
2. The drive section is closed below the platform, more safe, no pollution
3. Filling and sealing part installed in the platform above the semi-closed without static frame within the visual mask, easy to observe, operate and maintance
4. Photoelectric on the standard workstations, with high-precision probe, stepper motor control hose pattern is located in the correct position
5.after injection, air blow off device blowing off the tail, no filled if no tube

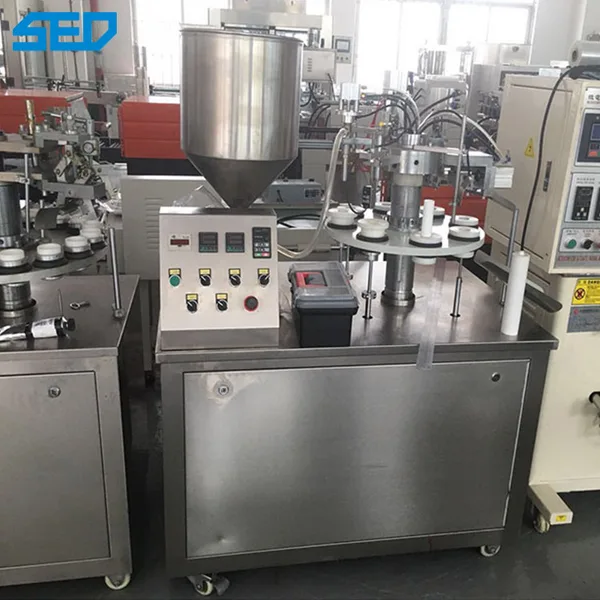

Product Show of Filling And Sealing Machine
Application of Filling And Sealing Machine
Suitable for filling and sealing machine for paste, adhesive, AB glue, epoxy glue, skin cream, hair dye, shoe polish, toothpaste and other materials.
