Paste Automatic Packing Machine Ointment Hose Filling Sealing Machine

Product Description of Hose Filling Sealing Machine​



It's applicable to toothpaste, cosmetic, pharmaceutical, food, industry product and other soft tube sealing.

Extensional organization of the machine is made of aluminium alloy and stainless steel.



Product Parameters of Hose Filling Sealing Machine

Filling&Sealing speed	15-25pcs/min
Diameter of tube	10-50mm
Height of tube	50-250mm
Filling capacity	25-250ml
Ultrasonic frequency	20KHZ
Voltage	AC220V/110V,50HZ/60HZ
Power	1800W
Size	860*680*1550mm
Weight	180kg



main features of Hose Filling Sealing Machine



Auto Tube Orientation

Using high sensitivity Japan-Imported Panasonic infrared positioning system, plastic tube will be turning to right side according to the mark on the tube



Auto Cutting Function

It's with the function of automatically cutting after sealing and coding, in which guarantee the tube tail more beauty.



InportedAirTAC Solenoid Valve

Adopting famous brand AirTac air system, greatly make the machine pressure working precisely.



1.It's applicable to toothpaste, cosmetic, pharmaceutical, food, industry product and other soft tube sealing.



2.Extensional organization of the machine is made of aluminium alloy and stainless steel.



3.The working platform is easily to operate that is independent man-machine operating interface and can be two dimension direction adjustment.



4.The ultrasound power supply adopts Taiwan movement circuitry, ultrasound parts use famous brands.



5.It's with the function of overload protection, phase difference protection, and power-fail protection



6.The ultrasound output power is big enough to ensure the sealing quality of different kinds material and specifications soft tubes.



7.It's with the function of automatically cutting.



8.Anti-leak filling nozzle deep into inside of hose, while there is a bottom-up filling process is complete when filling and sealing, no leakage or overflow. Machine is suitable for a variety of different physical and chemical properties of the filling material requirements.



Filling volume fine hand wheel placed in the external body, tight regulation and very convenient to ensure filling accuracy ≤ ± 1%, cost savings and truly accurate measurement.

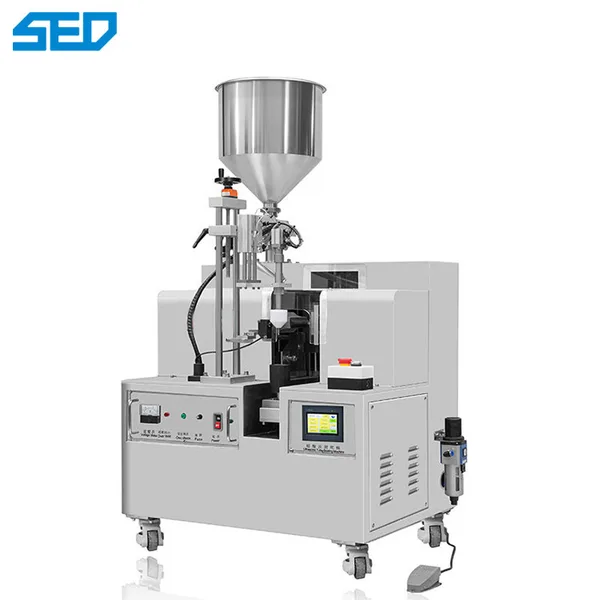

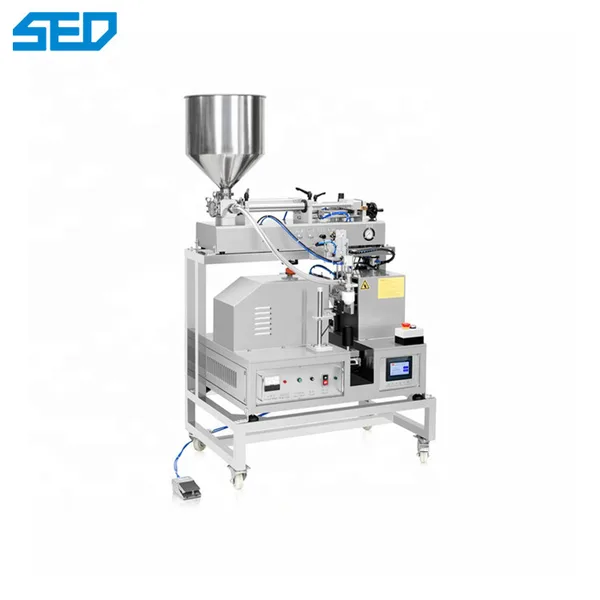

Products Show of Hose Filling Sealing Machine
