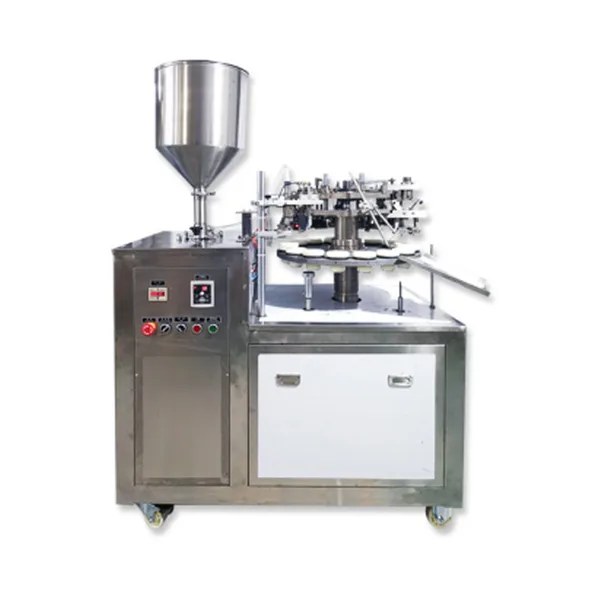

High Efficient Semi Automatic Aluminum Tube Filling And Sealing Machine

Product Description of Sealing Filling Machine​



This machine is mainly used for quantitative filling and sealing of metal hoses as packaging container materials. It is widely used in packaging industries such as medicine, daily chemical, food, and chemical.
The operation process involves manually inserting the metal hose into the indexing coil seat (16 workstations), using mechanical transmission to automatically rotate, photoelectric detection to confirm the presence of the tube, and then automatically measuring and pouring it into the tube. After that, the tube is double folded and sealed, and the finished product is withdrawn.



Product Parameters of Sealing Filling Machine

Voltage	220V
Capacity	10-40 tubes/min
Filling range	10-100ml
Tube height	80-180mm
Tube diameter	13-35mm
Machine Dimension	1140mm*600mm*1580mm
Machine Weight	220KG



Main features of Sealing Filling Machine



1) The high-quality LCD programming controller and button combined operation video comprehensively grasp the operation status of the equipment, including stepless speed regulation, parameter equipment, production counting statistics, air pressure indication, fault display, etc., making the operation simple and user-friendly.
2) Fully automatic completion of the entire process of human supply management, benchmarking, inert temperature table body filling (optional), filling, sealing, coding, and finished product export.
3) The high-precision benchmarking system reduces the color difference range between the pipe body and the color code.
4) External adjustment parts with position digital display, quick and accurate adjustment (suitable for multi specification and multi variety production).
5) Integration of machine, light, electricity, and gas, no filling without pipes, inadequate pipe supply, low air pressure, automatic display (alarm); Fully automatic functions such as automatic shutdown when opening the protective door.
