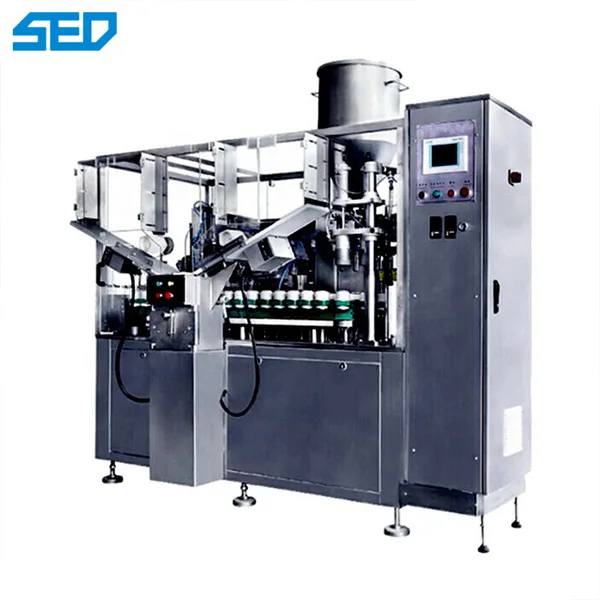

Fully Automatic Tube Filling And Sealing Machine For Cosmetics



Product Overview



Automatic Tube Filling & Sealing Machine are smoothness of operation, easy cleaning, easy size change over and simple maintenance procedures. These combined with wearing property and the highest safety guarantee make this an excellent machine.



This product is high-speed machine, and suitable to filling multi-typed materials as well. For those materials uneasy to filling, for example, food in large tube, ointment in small tube, this machine can provide satisfied quality of filling and sealing.



Product Parameters

Type	Hot Air Sealing
Voltage of Compressed Air	40 to 60 m³/h
Max KW	9.5KW
Power	380V 50HZ
Productivity	120 to 150 Tubes/Min
Filling Precision	≤1%
Water Consumption	6L/Min
Filling Volume	1.5 to 300 ML
Tube Diameter	10 to 50mm
Tube Length	50 to 200mm
Average KW	6.5KW
Applications	Designed to meet the validation standards of the Pharmaceutical industry. Designed for the unique package designs of the Cosmetic & Personal Care industry. Designed for the Adhesives, Sealants, Chemical and Grease industries.



Feature



• Fully Automatic Tube Filling & Closing

• Metal, Plastic or Laminate Tubes

• Hot Air Sealing Technology

• Custom Profile Seal & Trim Available

• Unit Dose Filling

• Service and On-Line Support via Ethernet/Modem

• Vertical Bottom Up Filling

• Swirl Filling & Custom Fill Profiles

• Optional Sanitary Fill Station

• Clean Room Installations

• Pharmaceuticals, Cosmetics, Sealants & Adhesives, Grease & Food Products



Application



The automatic tube paste filling and sealing machine is widely used in medicine, cosmetics and other industries. Suitable for all kinds of hose potting paste, lotion, oil, etc.
