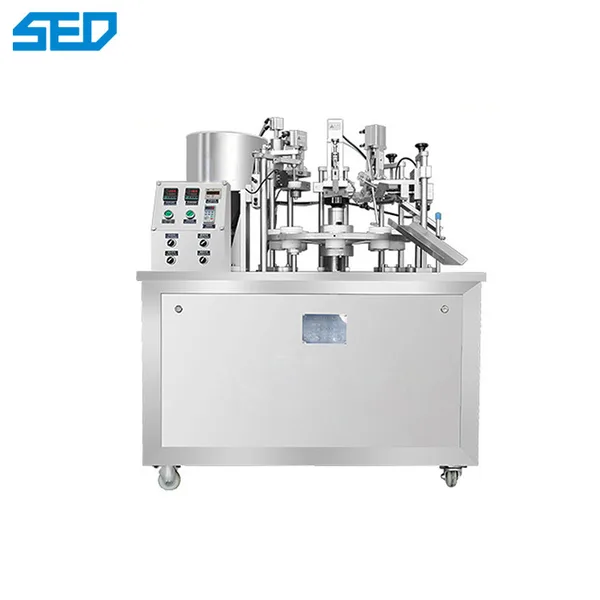

Automatic Rotating Plastic Hose Tube Filling And Sealing Machine



Product Description of Tube Filling Sealing Machine

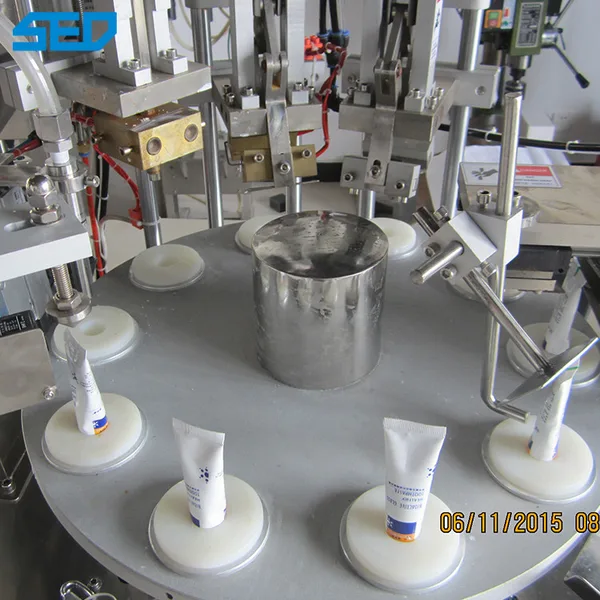

This semi-automatic tube filling and sealing machine adopts full stainless steel, working process of the button control:put in tube manually, 10 work position with automatic rotary, quantitative filling, heat sealing, automatic cutting, printing and finished product output.



All works with full cylinder stroke control, convenient to adjust filling quantity, the filling speed is adjustable.



This machine is suitable for all kinds of plastic and composite hose filling, sealing, date printing, cutting. Sealing appearance is beautiful, neat, fastness, high measuring accuracy, good stability. According to different materials, optional parts:hopper heating system, filling head with anti-pull function.



Product Parameters of Tube Filling Sealing Machine

Power supply	~220V±10%50HZ
Power	400W*2
Pressure	0.6-0.8(MPA)
Gas consumption	<30(dm3/min)
Filling volume	30-200(ml)
Filling speed	20-30 pieces/min
Filling precision	<2%
Dimension	1230mm*700mm*1400mm
Weight	600(kg)



Advantages of Tube Filling Sealing Machine​



A. This filling and sealing machine has simple structure, reasonable and easy to understand, and high accuracy.



B. By the magnetic reed switch can control cylinder stroke, you can adjust the amount of filling.



C. Filling volume and filling speed of filling and sealing machine can be arbitrarily adjusted, filling with high accuracy.



D. By automatic control system, tube filling and sealing machine can complete that supplying for pipe, washing the tube, mark recognition, filling, sealing, code folding,the whole process of production, etc.



    To complete the supply pipe, pipe washing by pneumatic method, accurate and reliable action.



E. Intelligent temperature control and cooling system, make the operation simple, convenient adjustment.



    with a number of memory and equiped with a quantitative shutdown device.



F. Materials in contact part of our tube filling and sealing machine adopts 316L stainless steel manufacturing, clean, sanitary, fully meet the requirement of pharmaceutical production GMP.
