Automatic Hose Filling And Sealing Machine Toothpaste Tube Filling And Sealing Machine



Product Overview of Filling And Sealing Machine



The machine is used mainly to fill liquid material into Soft Tube Filling with fixed quantity and seal the tube . It is widely used for the packing of products of pharmaceutical, foods, and chemical industry .



Working process:



FWJ Manually put the Soft Tube Filling (max. 16 tubes) into the tube-holding base. Change angular potion of each tube by means of mechanical transmission. Photoelectric device is used to detect the position of tube and if there is any tube in right position, the filling system starts to fill the tube with fixed quantity.



The tube will then be dual-sealed, and with a number printed on the surface the tube is finally ejected.The machine is used mainly to fill liquid material into Soft Tube Filling with fixed quantity and seal the tube . It is widely used for the packing of products of pharmaceutical, foods, and chemical industry .



Product Parameters of Filling And Sealing Machine

Power Supply	AC220V±10% 50HZ
Work Temp	5-50℃
Filling Quantity:	2-30 5-75 30-150(g)
Quantity Error:	<2%
Motor power:	1.1kw
Compressed Air	pressure0.6~0.7Mpa Volume: 0.2m³/min
Capacity:	10~50tube/min(adjustable)
Dimension	1000mm×600mm×1700mm
Weight:	250kg



Feature of Filling And Sealing Machine​



The machine, with a controllable filling volume or quantity, is featured with a reliable performance performance. The machine is suitable for the filling of Soft Tube of any type because the tube-holding base can be easily replaced in purpose. A perfecd and reliable sealing can be reached. The parts which touches material is made of stainless steel.

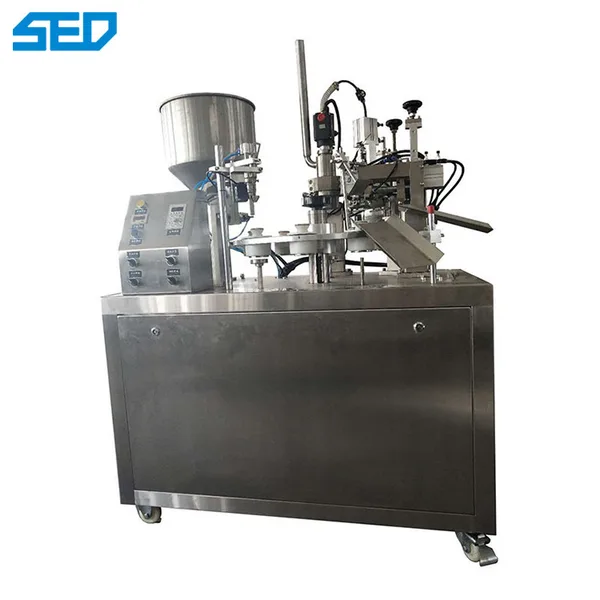

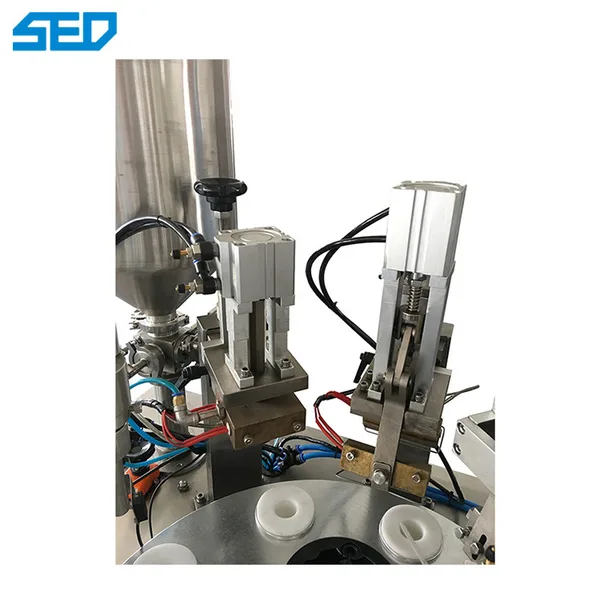

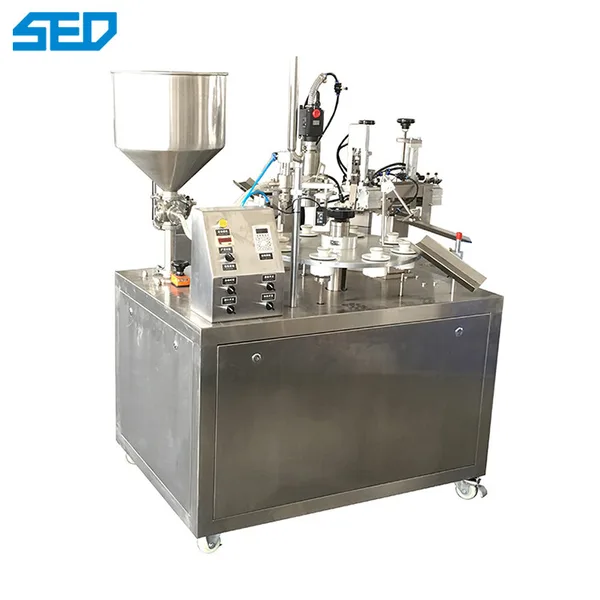

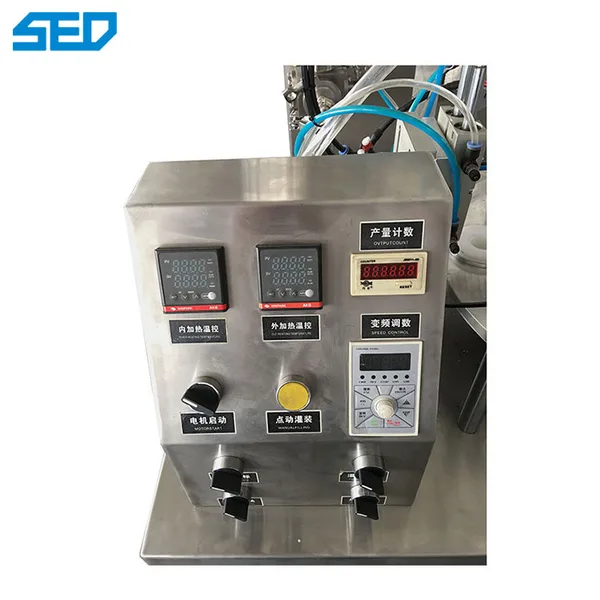

Show of Filling And Sealing Machine



Application of Filling And Sealing Machine

Widely used in toothpaste, ointment, pasty food, cosmetics, hair dye, adhesives, art palettes, etc.
