Tube Filling And Sealing Machine

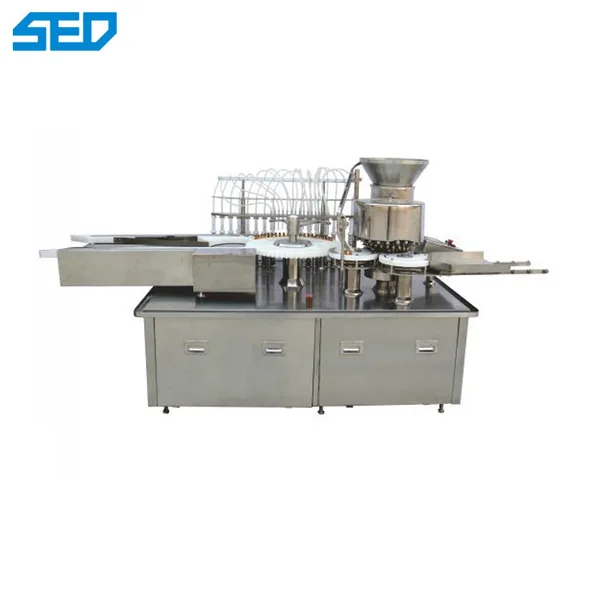

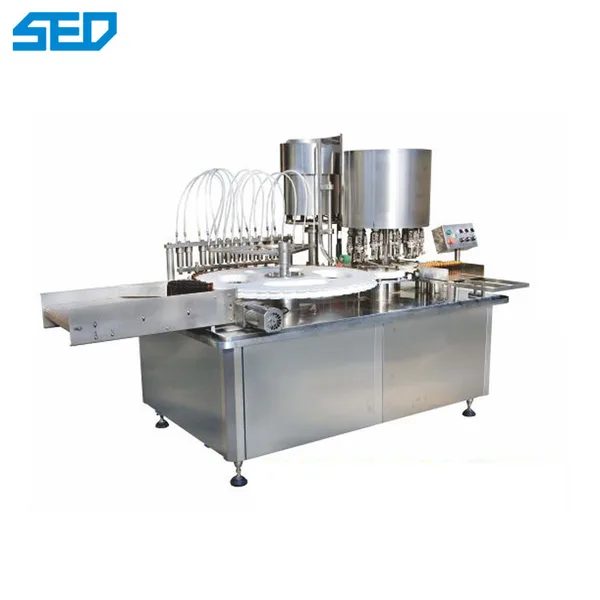

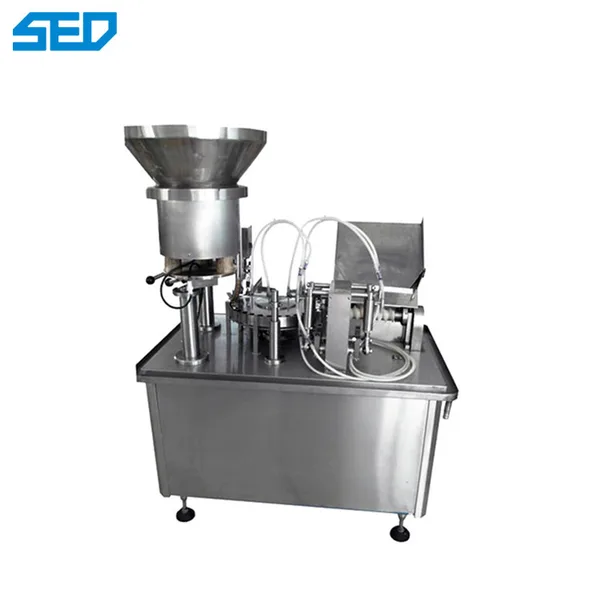

5-25ml Oral Syrup Liquid Bottle Filling Machine Production Line
Product description of Liquid Bottle Filling Machine It's a major machine in production line for oral liquid, it main used in filling, capping placing and sealing of straight tube bottle. Tracking filling, cap automatically conveying by electromagnetic oscillator, three knifes centrifugal sealing (or screwing), no bottle no filling. Filling and sealing integrated in one machine, advanced design, compact structure and completely comply with requirement of GMP.It's a major machine in production line for oral liquid, it main used in filling, capping placing and sealing of
| Place of Origin: | China |
|---|---|
| Brand Name: | SED Pharma |
| Certification: | CE |
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden Case |
| Delivery Time: | 50-60 Days after receiving the deposit |
| Payment Terms: | T/T,L/C, ,Cash |
| Supply Ability: | 30 Sets per month |
Configuration and product details
Technical overview- Name
- Applicable Specification 5-25ml Oral Syrup Liquid Bottle Filling Machine Production Line With High Efficiency 220V/380V
- Filling Error
- ±1~2%
- Breakage Rate
- ≤5‰
- Working Voltage
- 220V/380V
- material
- stainless steel
- key word
- Liquid Bottle Filling Machine
Product description of Liquid Bottle Filling Machine
It's a major machine in production line for oral liquid, it main used in filling, capping placing and sealing of straight tube bottle. Tracking filling, cap automatically conveying by electromagnetic oscillator, three knifes centrifugal sealing (or screwing), no bottle no filling.
Filling and sealing integrated in one machine, advanced design, compact structure and completely comply with requirement of GMP.It's a major machine in production line for oral liquid, it main used in filling, capping placing and sealing of straight tube bottle.
Tracking filling, cap automatically conveying by electromagnetic oscillator, three knifes centrifugal sealing (or screwing), no bottle no filling. Filling and sealing integrated in one machine, advanced design, compact structure and completely.comply with requirement of GMP.
Product Parameters of Liquid Bottle Filling Machine
| Applicable Specification | 5-25ml | |||
| Product Speed(bottle/min) | 30-50 | 60-80 | 150-200 | 300-350 |
| Filling Error | ±1~2% | |||
| Breakage Rate | ≤5‰ | |||
| Working Voltage | 220V/380V | |||
| Powder Supply | 1.5kw | 1.5kw | 3kw | 5kw |
| Weight | 300kg | 500kg | 1500kg | 2300kg |
| Dimension(mm) | 1100*800*1350 | 1500*1000*1650 | 3500*1350*1750 | 3800*1650*1750 |
main Feature of Liquid Bottle Filling Machine
1. All elements is well know brand.
2. Direct viewing operation, no bottle no filling, measuring accurate.
3. Three knifes centrifugal sealing, ensure firm and beauty.
4. The whole machine is designed according to the requirements of GMP.
Application of Liquid Bottle Filling Machine
It is suitable for the packaging process of liquid filling in medicine, cosmetics, beverages, health products, food and other industries.
