220V 50Hz Semi Automatic Pharmaceutical Packaging Machine Manual Inset Tube Paste Filling Machine

220V 50Hz Semi Automatic Pharmaceutical Packaging Machine Manual Inset Tube Paste Filling Machine



Machine Parameters of Tube Paste Filling Machine

Voltage	AC 220V±10% 50Hz
Filling quantity	5-180ml
Working temperature	5-50℃
Quantity error	< 1%
Motor power	1.1kw
Compressed air	pressure:0.6-0.7Mpa
Capacity	10-50tubes/min (adjustable)
Dimension	1000*600*1700mm
Weight	400kg



Product Overview of Tube Paste Filling Machine​



Metallic Tube Filling & Sealing machine is used for fill liquid material into metal tube with fixed quantity and fold the tube end. It is widely used for the packing of pharmaceutical, cosmetic, foods, and chemical industry.



For example: Ointment, gooey, AB Glue, super glue, epoxy glue , skin oil, hair dye, shoeshine, toothpaste, etc. liquid and poultice materials.



main Feature of Tube Paste Filling Machine​



The filling quality easy to adjust, the filling quality is tunable, the computation precision is higher, stability is well. If instead pedestal that is apply the filling and the sealing of the all kinds of metal tubes, sealing figure is beauty and trim, the sealing is tightness.



This machine adopt the high-quality stainless steel material to make of contacting the material.

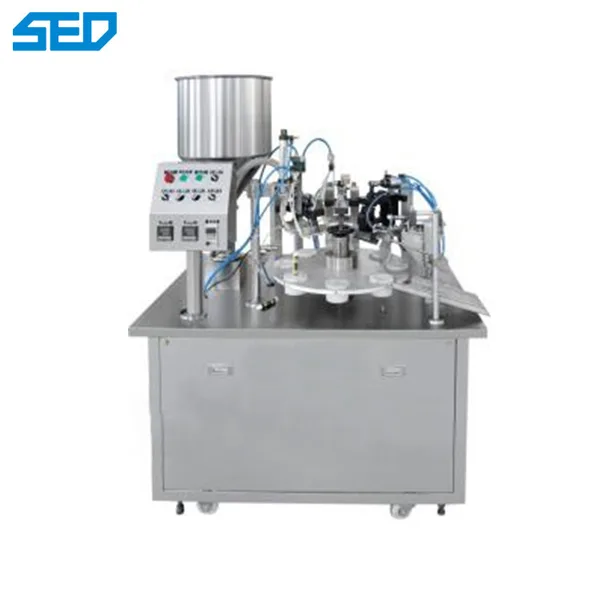

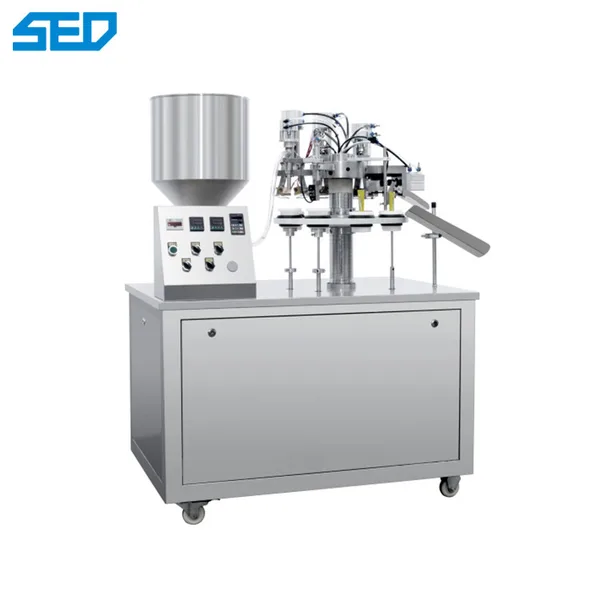

Show of Tube Paste Filling Machine​



Application of Tube Paste Filling Machine​

This tube filling machine is mainly used to fill a certain amount of material into a metal tube and seal the tube. Widely used in the packaging of chemical, cosmetic, food, medicine and other industries. For example: ointment, adhesive, AB glue, super glue, epoxy glue, skin cream, hair dye, shoe polish, toothpaste and other liquids and pastes.
