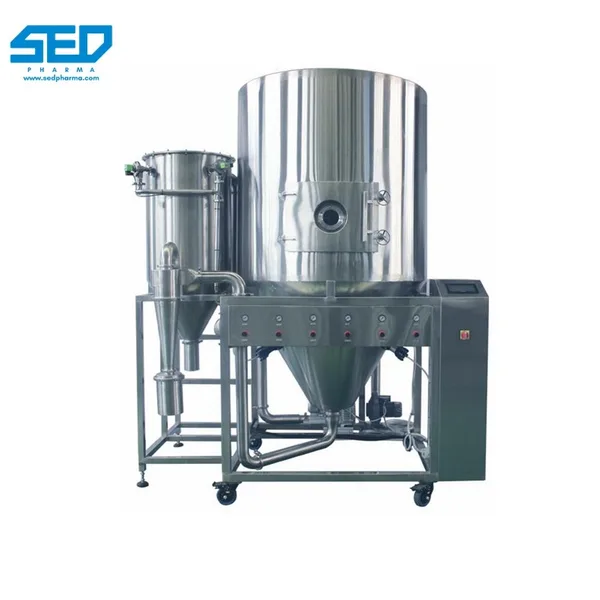

Water Evaporation 10Kg/H Industrial Spray Dryer For Milk Powder



Water Evaporation 10Kg/H Industrial Spray Dryer For Milk Powder



Product description of Spray Dryer

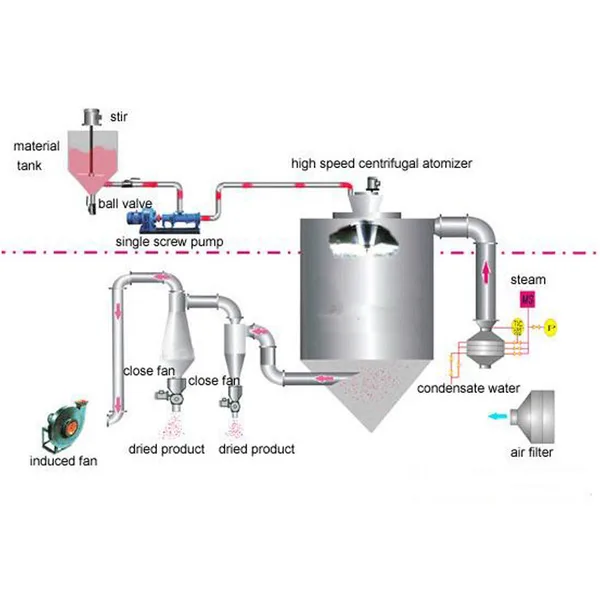

Spraying drying is a wide applied process in liquid process sharping and drying industry .Particularly it is suitable for producing powder ,granule or block solid product from solution ,emulsion ,suspension liquid and dumped paste liquid .



Therefore when the distribution of granule size ,final moisture ,bulk density ,granule shape of finished product must be conformed to currency standard,the spray drying is an ideal process.



Main Features of Spray Dryer



1. Equipped with touch screen, easy to operate;


2. The degree of automation is high, and the parameters can be set according to the actual needs, so that the products dried by the spray dryer can meet the actual needs;


3. Equipped with shutdown protection function, the purpose of shutdown is achieved through the stop button, and the operation of the fan will be stopped immediately to protect the equipment from damage to the heating part due to misoperation;


4. Equipped with advanced air compressor to improve the fluidity of materials and reduce the noise generated by operation;


5. Equipped with a real-time PID constant temperature control system to improve the accuracy of temperature control.



Main Parameter of Spray Dryer

Water Evaporation	10 kg/h
Revolution of atomizer(rpm)	22500
Diameter of Atomizing disc (mm)	60
Dried Powder Recovery Rate (%)	Around 95
Length of Covered Area(m)	1. 7
Width of Covered Area(m)	1. 2
Height of Tower Body(m)	2
Air input Temp	160~200
Air output Temp	70~90
Tower Height	2000 mm

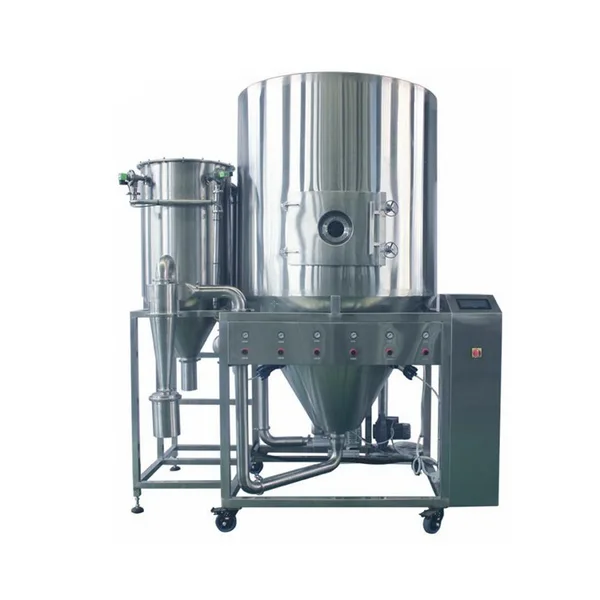

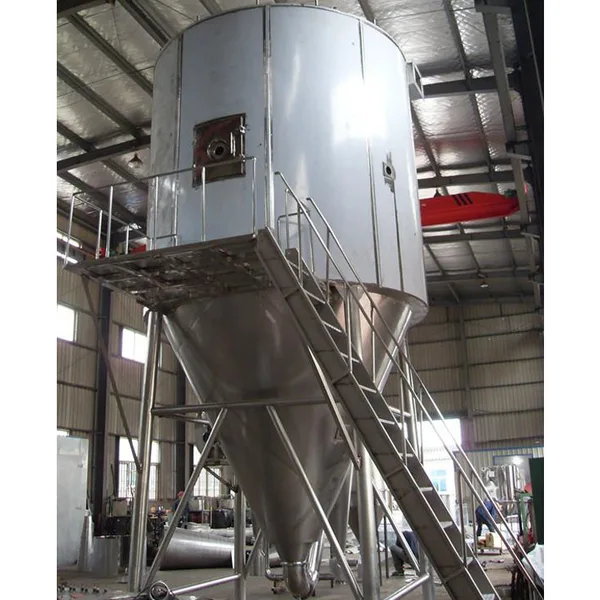

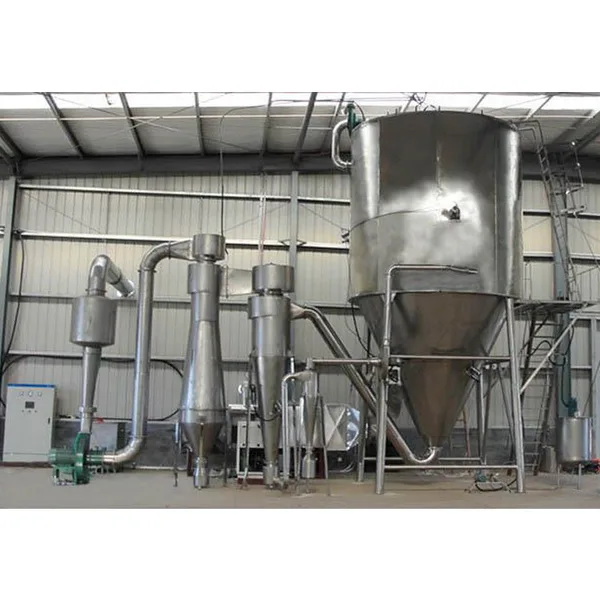

Product Show of Spray Dryer



Precautions For Use of Spray Dryer



1. During the operation of the spray dryer, do not touch the rotating parts such as the motor fan blades, belts, atomizing discs, etc., and do not touch the exhaust fans, bag filters, air ducts and other devices with high surface temperature, so as to avoid danger;


2. After stopping the operation of the spray drying tower, do not enter the tower until the temperature has not dropped to normal temperature, so as to avoid discomfort caused by the high temperature;


3. Before the oxygen concentration in the spray dryer reaches 21%, do not open the inspection door to avoid suffocation due to lack of oxygen;


4. When using a spray dryer, if you need to turn on the freezer, you also need to turn on the circulating water.



Application of Spray Dryer
