Industrial Laboratory Vegetables Fruits Pharmaceutical Dryers Vacuum Tray Oven Machine

Industrial Laboratory Vegetables Fruits Pharmaceutical Dryers Vacuum Tray Oven Machine



Product Description of Tray Oven Machine



Vacuum drying ovens have a chamber volume of between 8 and 430 litres and a temperature range starting at between +10°C above room temperature up to +250°C. The interiors are made of corrosion-free stainless steel 304.



Underpressure accelerates drying in the vacuum drying oven. Heat-sensitive material can therefore be dried in the vacuum drying oven at low temperatures, and at the same time the drying time is considerably reduced.



To avoid oxidation, an inert gas(e.g. nitrogen) can be fed into the chamber.



Product Parameters of Tray Oven Machine

Model	DZF-6010	DZF-6020	DZF-6050	DZF-6090	DZF-6210	DZF-6500
Power Supply	220V/50HZ
Shell Material	Spray-paint Anti-corrosion
Liner Material	304 Stainless Steel
Temp. Range	RT+10~200°C
Max. Vacuum Degree	0.098 Mpa
Temp. Stability	±1.0°C
Temp. Analysis	0.1°C
Working Temp.	+5~40°C
Input Power (W)	400	800	1400	2000	2400	2800



Advantages of Tray Oven Machine​



1. Cuboid chamber maximizes the effective cubage. Microprocessor controller for temperature ensures a precise and reliable control.

2. Dual-layer bulletproof toughened glass door ensure absolutely clear observe on objects in chamber.

3. Shutting extent of oven door is adjustable. Closed-cell silicon gasket ensures a high vacuum degree in oven.

4. The chamber is made of stainless steel (or wire-drawing sheet) which allows a durable service and cleaning easily.

5. Store, heating test and drying are all in an environment without oxygen or filled with inert gases, which ensures no oxidation.

6. Minimum heating time is over 50%, less than the traditional vacuum drying oven.

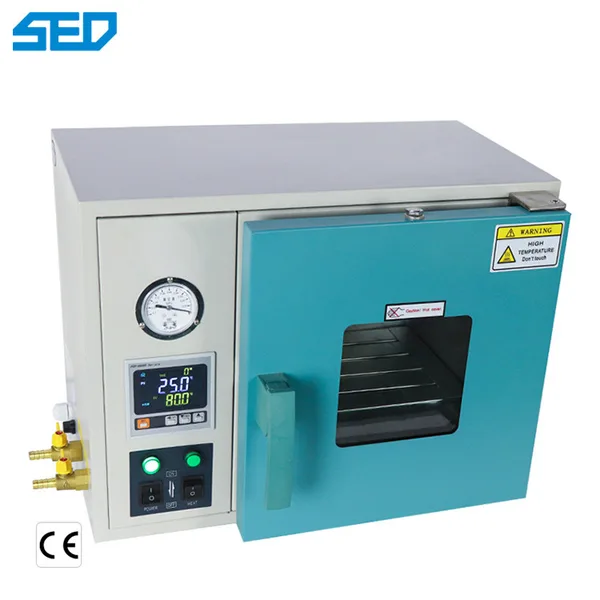

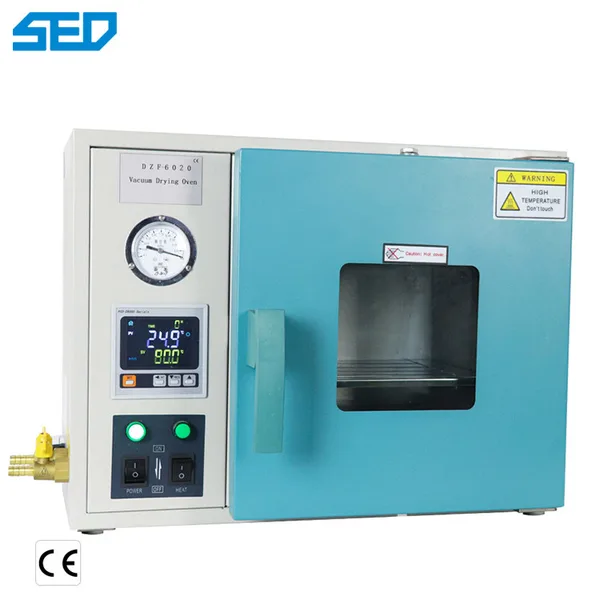

Products Show of Tray Oven Machine

Application of Tray Oven Machine
