Pharmaceutical Dryers

Vacuum Drying Machine For Medicine

Name: Vacuum Drying Machine For Medicine
Brand: SED Pharma

Product Description of Vacuum Drying Machine Vacuum shelf tray dryer is a most often used static chamber dryer under vacuum condition. Inside the drying chamber, trays loaded with wet material are placed on top of each other in a drying shelf. In drying pocess, heat medium, such as steam, hot water or thermal oil, is connected to the drying shelf which transfers heat to wet material. Under vacuum condition, boiling point of moisture is much lower. So the moisture can be evaporated under low temperature. The vacuum pump constantly sucks out the evaporated moisture to speed

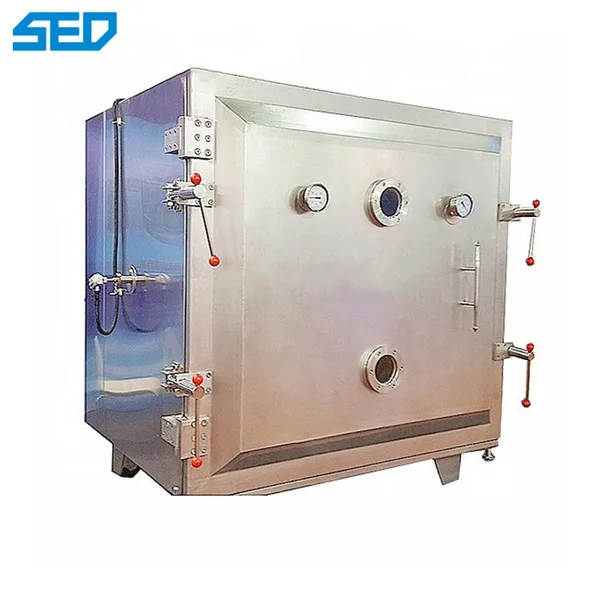

Vacuum Drying Machine For Medicine, view 1

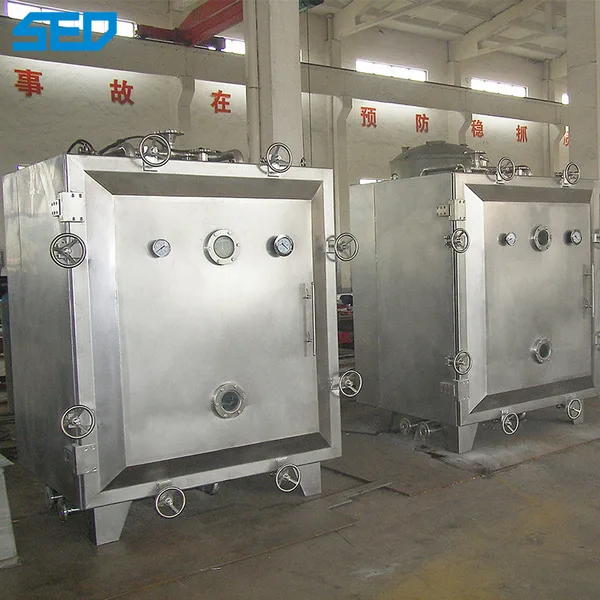

Vacuum Drying Machine For Medicine, view 2

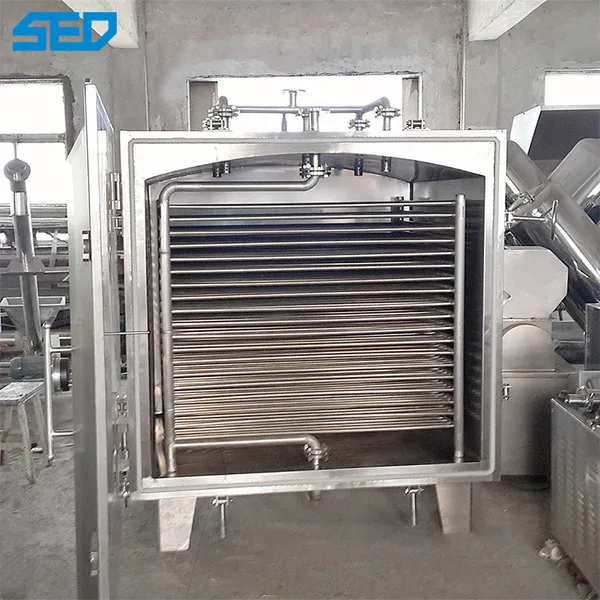

Vacuum Drying Machine For Medicine, view 3

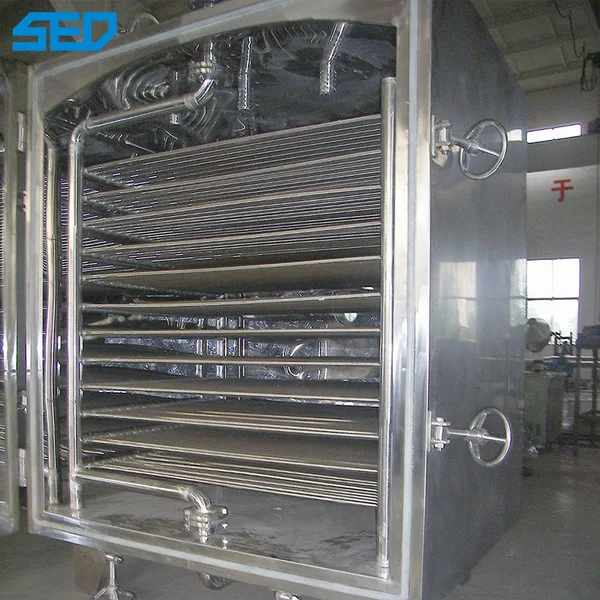

Vacuum Drying Machine For Medicine, view 4

Product Details:

Place of Origin:	China
Brand Name:	SED Pharma
Certification:	CE

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	Negotiable
Packaging Details:	Wooden Case
Delivery Time:	50-60 Days after receiving the deposit
Payment Terms:	T/T,L/C, ,Cash
Supply Ability:	30 Sets per month

Request configuration

Configuration and product details

Technical overview

Name: Vacuum Drying Machine For Medicine
Shelf working pressure Mpa: ≤0.784
Shelf working temp. ℃: 35-150
Vacuum degree Mpa: -0.1
material: stainless steel
key word: Vacuum Drying Machine

Product Description of Vacuum Drying Machine
Vacuum shelf tray dryer is a most often used static chamber dryer under vacuum condition. Inside the drying chamber, trays loaded with wet material are placed on top of each other in a drying shelf.
In drying pocess, heat medium, such as steam, hot water or thermal oil, is connected to the drying shelf which transfers heat to wet material. Under vacuum condition, boiling point of moisture is much lower. So the moisture can be evaporated under low temperature.
The vacuum pump constantly sucks out the evaporated moisture to speed the drying process. Vacuum pump, tubular condenser and buffer tank are equipped to recover the evaporated moisture.

Product Parameters of Vacuum Drying Machine

Model	YZG-600	FZG-10	FZG-15	FZG-20
Inner dimension mm	Φ600x976	1500X1060X1220	1500X1400X1220	1500X1800X1220
Outer dimension mm	1135X810X1020	1513X1924X1720	1513X1924X2060	1513X1924X2500
Shelf layer	4	5	8	12
Shelf space mm	81	122	122	122
Tray size mm	310X600X45	640X460X45	640X460X45	640X460X45
Tray quantity	4	20	32	48
Shelf working pressure Mpa	≤0.784	≤0.784	≤0.784	≤0.784
Shelf working temp. ℃	35-150	35-150	35-150	35-150
Vacuum degree Mpa	-0.1	-0.1	-0.1	-0.1
Water evaporation rate under -0.1 Mpa and 110 ℃ kg/m2. hr	7.2	7.2	7.2	7.2
Vacuum pump with condenser	2X-15A/2KW	2X-70A/5.5KW	2X-70A/5.5KW	2X-90A/7.5KW
Vacuum pump without condenser	SK-0.8/2.2KW	SK-3/5.5KW	SK-6/11KW	SK-6/11KW
Drying chamber weight kg	250	1400	2100	3200

main features of Vacuum Drying Machine

1) Flexibility in heat medium: Heat mediums can be steam, hot water or thermal oil to obtain different temperature according to special drying requirements.

2) Uniform drying: Four exhaust vents are equipped to make sure the evaporated moisture can be sucked out immediately.

3) Energy saving: The boiling point of moisture is much lower under vacuum. Low drying temperature can reach high evaporation rate.

4) GMP standard: Drying chamber is fully welded without dead corners to meet GMP standard.

Products Show of Vacuum Drying Machine

Application of Vacuum Drying Machine
