Automatic Packing Machine

Vertical Powder Packaging Machine 4-Side Seal Pouch 380V

Name: Vertical Powder Packaging Machine 4-Side Seal Pouch 380V
Brand: SED Pharma

Electric Milk Powder Vertical Packaging Machine With 4-Side Seal Pouch Product Specifications Attribute Value Name Stick Bag Packaging Machine Overall dimension 1500*1160*2600mm Power 380v/50Hz Weight 730KG Keywords: Vertical Powder Packaging Machine, Powder Vertical Packaging Machine, Grain Packing Machine, 4 Side Seal Pouch Packing Machine Product Overview The SED-250FLB-J features a twin-mold structure, delivering top-tier performance and more steady operation. It comes equipped with a full-computer touchscreen control system and a human-machine interface (HMI); together

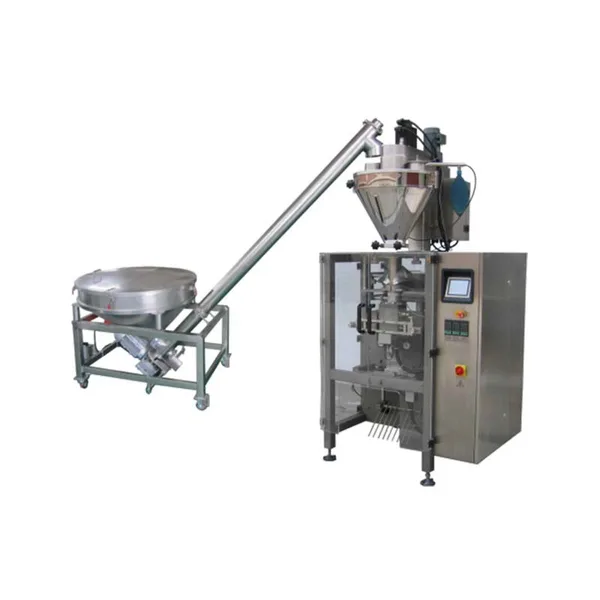

Vertical Powder Packaging Machine 4-Side Seal Pouch 380V, view 1

Product Details:

Place of Origin:	China
Brand Name:	SED Pharma
Certification:	CE
Model Number:	SED-250FLB-J

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	Negotiation
Packaging Details:	Wooden Case
Delivery Time:	35 Days after receiving the deposit
Payment Terms:	T/T,L/C,,Cash
Supply Ability:	30 Sets per month

Request configuration

Configuration and product details

Technical overview

Name: Stick Bag Packaging Machine
Overall dimension: 1500*1160*2600mm
Power: 380v/50Hz
Weight: 730KG
Key word: Vertical Powder Packaging Machine,Powder Vertical Packaging Machine,Grain Packing Machine,4 Side Seal Pouch Packing Machine

Electric Milk Powder Vertical Packaging Machine With 4-Side Seal Pouch

Product Specifications

Attribute	Value
Name	Stick Bag Packaging Machine
Overall dimension	150011602600mm
Power	380v/50Hz
Weight	730KG

Keywords: Vertical Powder Packaging Machine, Powder Vertical Packaging Machine, Grain Packing Machine, 4 Side Seal Pouch Packing Machine

Product Overview

The SED-250FLB-J features a twin-mold structure, delivering top-tier performance and more steady operation. It comes equipped with a full-computer touchscreen control system and a human-machine interface (HMI); together, these components enable simple operation, easy product changeovers, and smooth workflow transitions.

To optimize maintenance procedures, the machine includes a fault display system that supports quick and trouble-free problem-solving. For material filling, the equipment uses the newest screw head design—a technical upgrade that makes it particularly suitable for powders with low flowability. This design guarantees high metering accuracy while maintaining fast processing speeds.

The machine features replaceable screw parts for simple adjustments to packaging specifications, minimizing downtime. The film pulling and traction system is controlled by a servo motor, ensuring smoother traction movements and precise regulation of bag length.

The transverse sealing function is driven by a servo motor, which eliminates operational shocks, lowers noise levels, and allows flexible adjustment of the opening stroke. Sealing pressure can be freely fine-tuned, making the equipment compatible with packaging materials of different thicknesses and complex structures.

The SED-250FLB-J automatically completes the entire packaging process, including film rolling, bag forming, material metering and filling, bag sealing, and date printing. Optional features are available to meet specific production demands, such as continuous bagging, European-standard hook holes, handle holes, corner folding, nitrogen filling, cooling systems, and long bag production.
