Automatic Packing Machine
Servo Control Automatic Pillow Type Horizontal Flow Pack Machine with 40-80 bags/Mins Capacity and 220V/380V Power Supply
SED-450ZB-H (Exhaust) three-servo flow wrapper, 40–80 bags/min, with exhaust function and maximum 440 mm film width.
Product Details:
Payment & Shipping Terms:
Request configuration
| Place of Origin: | China |
|---|---|
| Brand Name: | SED Pharma |
| Certification: | CE |
| Model Number: | SED-450ZB-H |
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden Case |
| Delivery Time: | 50-60 Days after receiving the deposit |
| Payment Terms: | T/T,L/C,,Cash |
| Supply Ability: | 30 Sets per month |
Configuration and product details
Technical overview- Name
- Servo Control Automatic Pillow Type Horizontal Flow Pack Machine
- Keywords
- pillow type pack machine,flow pack machine,horizontal flow pack machine
- Production capacity
- 40–80 bags/min
- Power Supply
- 220V 50HZ single phase 380V 50HZ 3 phase
- Dimension(L*W*H)
- (L)4050*(W)745X(H)1450
- Machine Weight
- About 400Kg

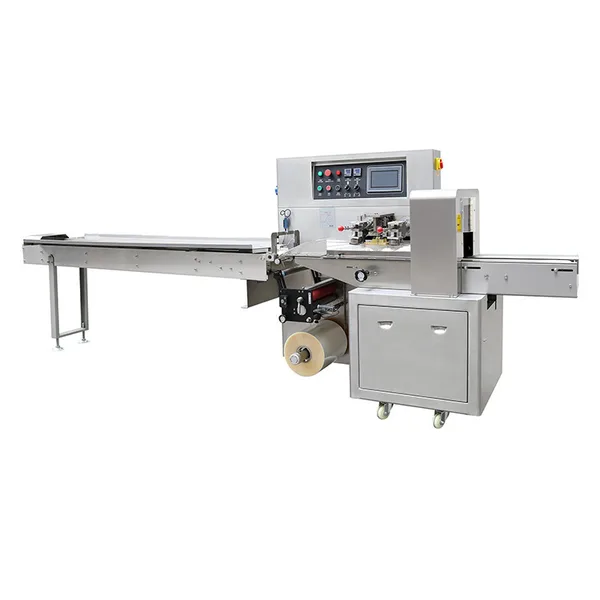

Servo Control Automatic Pillow Type Horizontal Flow Pack Machine
Product Description
The SED-450ZB-H (Exhaust) is a high-end flow wrap machine equipped with three servo motors, specifically designed for fragile, gas-containing products like seaweed that require exhaust functions. Featuring intelligent detection and synchronous servo control, it eliminates empty bags and material waste, offering an ideal packaging solution for food and healthcare industries.
Technical Parameters
| Film width | Max. 440mm |
|---|---|
| Bag length | No limit for 3 servo motors model |
| Bag width | 80~200mm |
| Product height | Max. 90mm |
| Packaging rate | 40-80bag/min |
| Power | 220V 50HZ single phase / 380V 50HZ 3 phase |
| Machine size | (L)4050*(W)745X(H)1450 |
| Machine weight | About 400Kg |
Advantages And Features
- Triple Servo Drive: Synchronized control of feeding, film loading, and horizontal sealing for high precision.
- Automatic Product Detection: Fiber optic sensors detect product presence and length; no product, no bag making.
- Intelligent Cutter Protection: Automatic cutter reversal upon obstruction prevents damage.
- Exhaust Function: Effectively removes air from packages for better appearance.
- Touch Screen Control: User-friendly interface with fault self-diagnosis.
- Accurate Temperature Control: An Independent PID system suits various film materials.
Application
Suitable for seaweed, snacks, biscuits, pastries, healthcare products, pharmaceuticals, and other items requiring exhaust or standard pillow packaging.
