Automatic Packing Machine
Automatic Induction Tube Filling And Sealing Machine Aluminum Foil Sealing Machines
Automatic Induction Tube Filling And Sealing Machine Aluminum Foil Sealing Machines Product Description of Sealing Machines Intermediate frequency power supply of the machine makes effective output power great and output current adjustable. It also auto tracks change of current load and makes adjustment in time. If there is no bottle in the specified position, it will stop automatically to save electric power. The machine is available for various bottles. The special sealing induction plate is completely shielded without electromagnetic pollution and its safety is
| Place of Origin: | China |
|---|---|
| Brand Name: | SED Pharma |
| Certification: | CE |
| Model Number: | SED-LF |
| Minimum Order Quantity: | >=1 Pieces |
|---|---|
| Price: | $6,000.00/ Piece |
| Packaging Details: | Export standard packing |
| Delivery Time: | Est. Time(days)-15-To be negotiated |
| Payment Terms: | T/T,L/C, ,Cash |
| Supply Ability: | 30 Piece/Pieces per Month |
Configuration and product details
Technical overview- Name
- Automatic Induction Tube Filling And Sealing Machine Aluminum Foil Sealing Machines
- Bottle Size
- 20-300ml
- Output
- 50-150bottles/min
- Diameter of caps
- Smaller than 60mm
- Height of bottle
- 220mm
- Power Supply
- 220V 50/60Hz
- 220V 50/60Hz
- 2Kw
- Overall Dimensions
- 1360*750*1210mm
- material
- stainless steel
- key word
- Aluminum Foil Sealing Machines
Automatic Induction Tube Filling And Sealing Machine Aluminum Foil Sealing Machines
Product Description of Sealing Machines
Intermediate frequency power supply of the machine makes effective output power great and output current adjustable. It also auto tracks change of current load and makes adjustment in time. If there is no bottle in the specified position, it will stop automatically to save electric power.
The machine is available for various bottles. The special sealing induction plate is completely shielded without electromagnetic pollution and its safety is superior to high-frequency power supply.
Coding system of the machine adopts built-in water circulation to save water consumption and reduce water pollution; it also has pressurizing system which features good cooling conditions, short sticking time, firm sealing and high stability.
Even if the mouth of the bottle is moist with many kinds of liquid, the machine still seals perfectly.
If water stop, The machine will sound alarm. Besides, some mechanism protects the machine from being damaged by over current, over voltage and under voltage. And it also has functions of continuous counting and automatic rejection of caps without aluminum foil.
The product confirms to the requirements of GMP.
Product Parameters of Sealing Machines
| Bottle Size | 20-300ml |
| Output | 50-150bottles/min |
| Diameter of caps | Smaller than 60mm |
| Height of bottle | 220mm |
| Power Supply | 220V 50/60Hz |
| Power | 2Kw |
| Overall Dimensions | 1360*750*1210mm |
Theory of Sealing Machines
According to the principle that metal objects generate huge eddy current and heat under the action of high-frequency electromagnetic field, the machine fuses the adhesive film of the lower layer of aluminum foil and fuses with bottle mouth through electromagnetic induction to achieve continuous and rapid non-contact sealing.

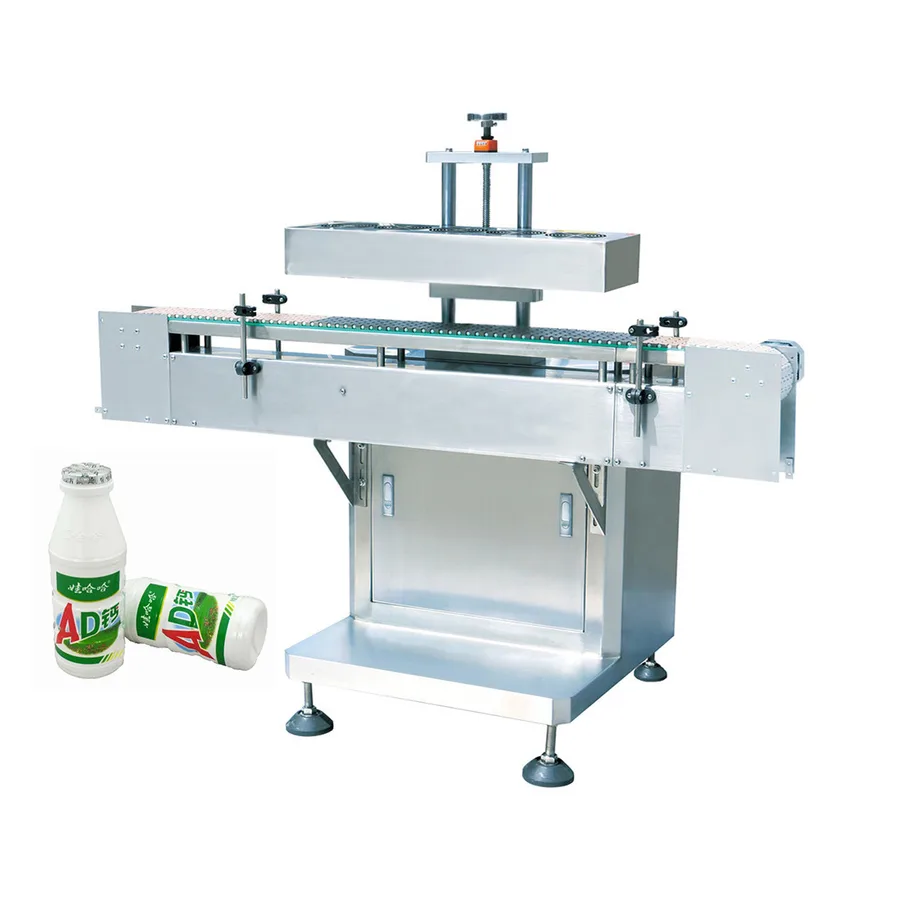

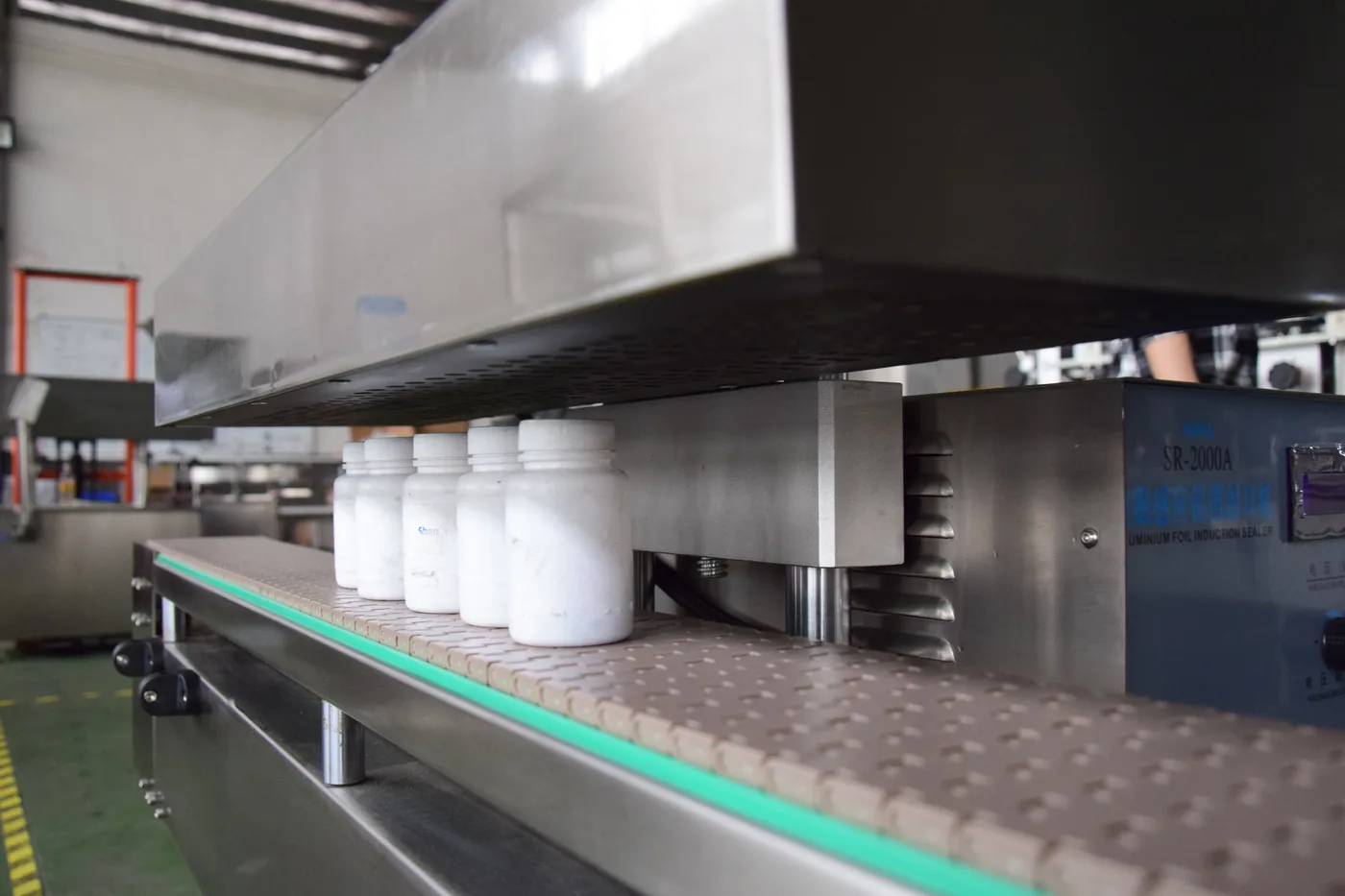

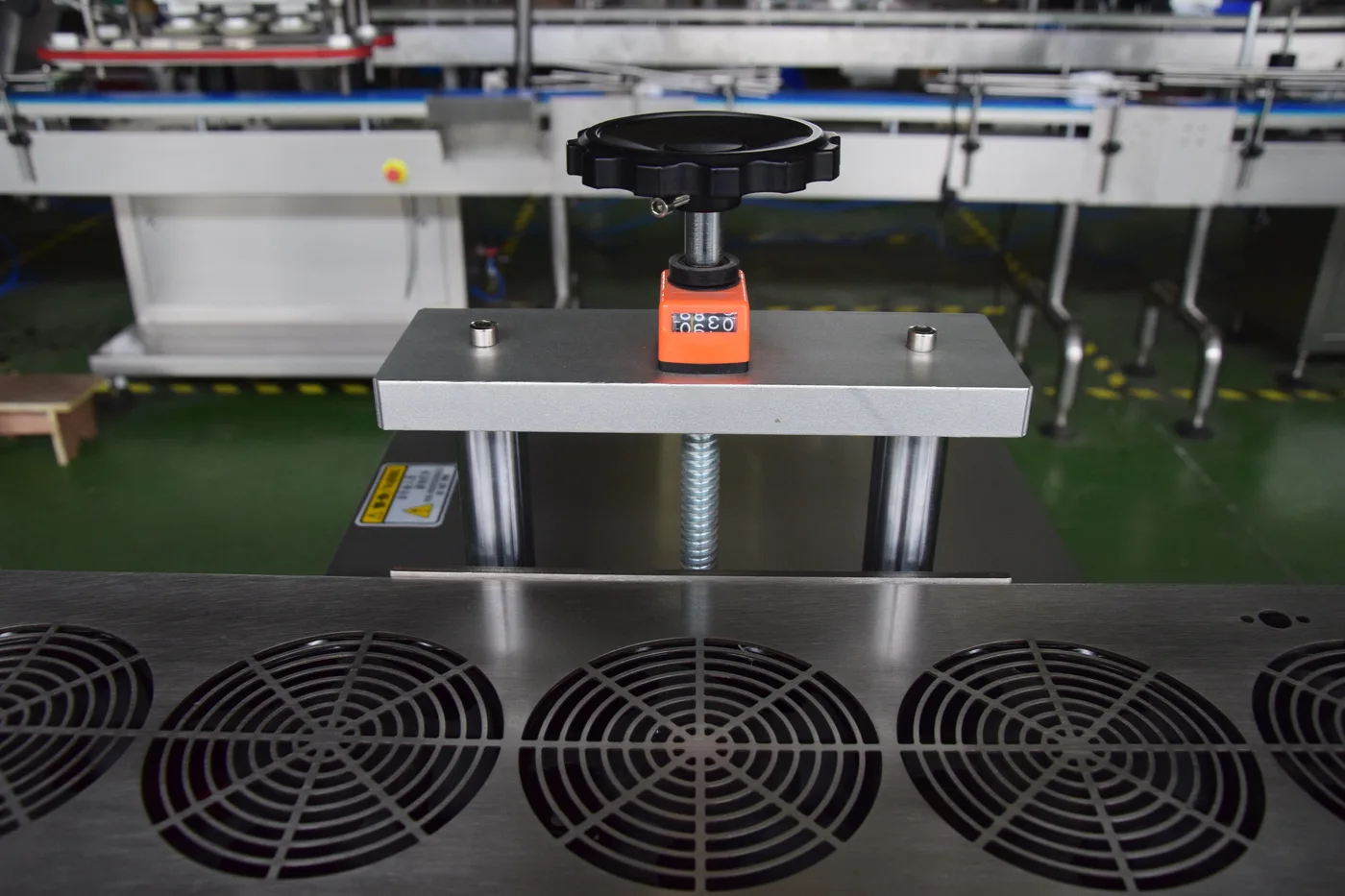

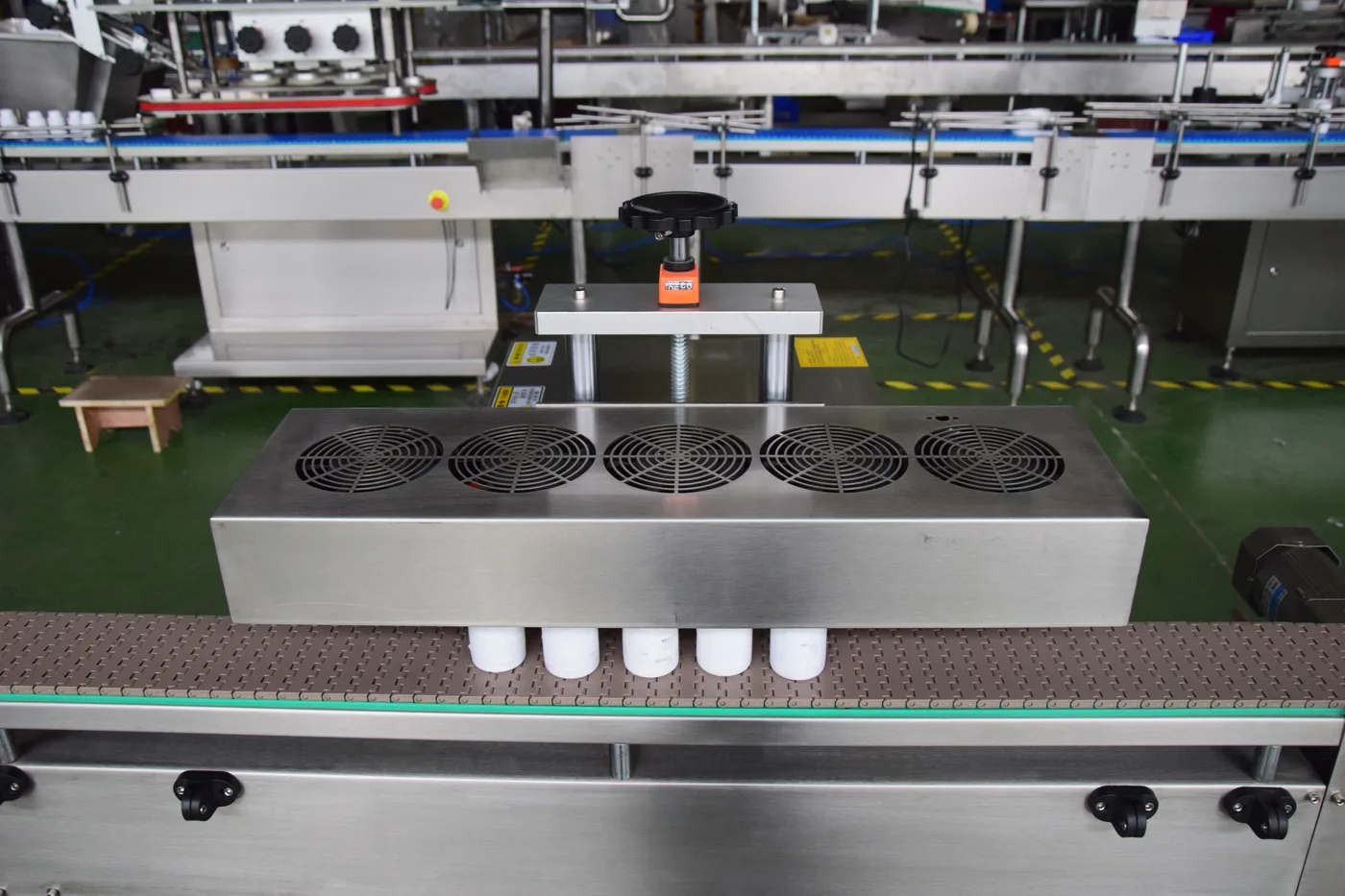

Products Show of Sealing Machines
Application of Sealing Machines
