Automatic Packing Machine

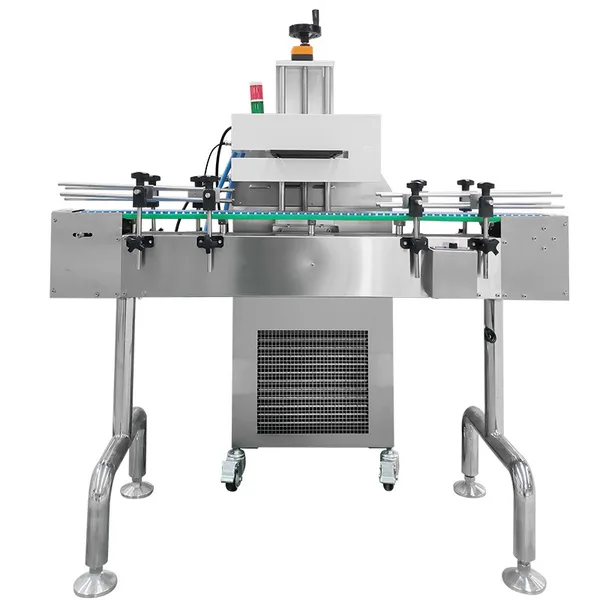

Water Cooling Aluminum Foil Induction Sealing Machine For 20-300ml Bottle Size
SED-LFS Automatic Electromagnetic Aluminum Foil Induction Sealing Machine is used to seal aluminum foil inside the non-metal cap of plastic and glass bottles, reaching the aim of wet-proof, leakage-proof and extending preservation time.
| Place of Origin: | China |
|---|---|
| Brand Name: | SED Pharma |
| Certification: | CE |
| Model Number: | SED-LFS |
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden Case |
| Delivery Time: | 50-60 Days after receiving the deposit |
| Payment Terms: | T/T,L/C, ,Cash |
| Supply Ability: | 30 Sets per month |
Configuration and product details
Technical overview- Name
- Water Cooling Aluminum Foil Induction Sealing Machine
- Bottle Size
- 20-300ml
- Output
- 50-150 bottles/min
- Diameter of caps
- Smaller than 60mm
- Height of bottle
- 220mm
- Power Supply
- AC220V 50/60Hz Single Phase
- 220V 60Hz
- 4KW
- Overall Dimensions
- 665*170*100mm
- material
- stainless steel
- key word
- Aluminum Foil Sealing Machin
Water Cooling Aluminum Foil Induction Sealing Machine
Product Description of Sealing Machine
SED-LFS Automatic Electromagnetic Aluminum Foil Induction Sealing Machine is used to seal aluminum foil inside the non-metal cap of plastic and glass bottles, reaching the aim of wet-proof, leakage-proof and extending preservation time. It is widely used as sealing packaging machine in industries such as pharmaceuticals, chemicals, cosmetics, foods, etc.
Working Principle
After the cap or closure is applied, the container passes under induction coils, which emit an oscillating electromagnetic field. As the container passes under the induction coils (sealing head), the conductive aluminum foil liner begins to heat due to eddy currents. The polymer film heats and flows onto the lip of the container. When cooled, the polymer creates a bond with the container resulting in a hermetically sealed product.
Product Parameters of Sealing Machine
| Model Name | SED-LFS |
| Applicable Bottle Size |
Bottle Mouth Diameter: 20-120mm Bottle Height ≤180mm (Special requirements can be customized.) |
| Conveying Speed | 0-25m/min |
| Sealing Speed | 50-150 bottles/min |
| Voltage | AC220V 50/60Hz Single Phase |
| Power | 4KW |
| Induction Head Size | 665*170*100mm |
| Weight | 75kg |
| Overall Dimension (L*W*H) | 1360*500*1090mm |
Application of Sealing Machine
![]()
