Automatic Packing Machine

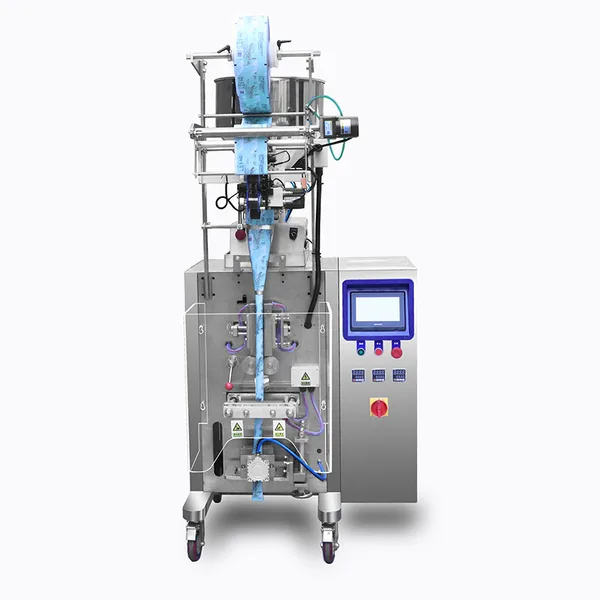

Vertical Liquid Packaging Equipment Back Sealing Liquid Sauce Packing Machine
Vertical Liquid Packaging Equipment Back Sealing Liquid Sauce Packing Machine Machine Parameters of Liquid Packing Machine 1. Model: SED-100YLB1-L 2. Sealing type: Three sided sealing/Four sided sealing/Back sealing (choose one from three) 3. Measurement method: Liquid pump measurement (volumetric measurement) 4. Measurement range: 0-100 ml 5. Packaging speed: 20-65 packs/min 6. Roll film width: maximum film width of 300mm 7. Bag size: W: 30-100mm L: 30-170mm 8. Power: 1500W 9. Power supply: 1P/220V/50HZ 10. Dimensions: 1100 * 850 * 1800mm 11. Weight: 220kg Characte
| Place of Origin: | China |
|---|---|
| Brand Name: | SED Pharma |
| Certification: | CE |
| Model Number: | SED-100YLB1-L |
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden Case |
| Delivery Time: | 50-60 Days after receiving the deposit |
| Payment Terms: | T/T,L/C, ,Cash |
| Supply Ability: | 30 Sets per month |
Configuration and product details
Technical overview- Name
- Vertical Liquid Packaging Equipment Back Sealing Liquid Sauce Packing Machine
- Sealing type
- Three sided sealing/Four sided sealing/Back sealing (choose one from three)
- Measurement method
- Liquid pump measurement (volumetric measurement)
- Measurement range
- 0-100 ml
- Packaging speed
- 20-65 packs/min
- Roll film width
- maximum film width of 300mm
- Bag size
- W: 30-100mm L: 30-170mm
- Key words
- Liquid Packing Machine,Vertical Packing Machine
Vertical Liquid Packaging Equipment Back Sealing Liquid Sauce Packing Machine
Machine Parameters of Liquid Packing Machine
1. Model: SED-100YLB1-L
2. Sealing type: Three sided sealing/Four sided sealing/Back sealing (choose one from three)
3. Measurement method: Liquid pump measurement (volumetric measurement)
4. Measurement range: 0-100 ml
5. Packaging speed: 20-65 packs/min
6. Roll film width: maximum film width of 300mm
7. Bag size: W: 30-100mm L: 30-170mm
8. Power: 1500W
9. Power supply: 1P/220V/50HZ
10. Dimensions: 1100 * 850 * 1800mm
11. Weight: 220kg
Characteristic
Liquid metering equipment:
1. Measurement method: volumetric measurement
2. Measurement range: 1-100ml
3. Measurement accuracy: ≤± 2%
Main control system:
1. One click adjustment of packaging weight on the touch screen
2. The bag making length can be adjusted at any time on the touch screen
3. The display screen will show the packaging speed and the number of packaging bags
Cursor detection:
Check the color code of the roll film and control the bag length
Ribbon coding machine
1. Printing lines: 1-3 lines
2. Printing columns: A maximum of 14 characters can be loaded in one row
3. Grain size: 2 * 4mm
4. Preheating time: 5-10 minutes
