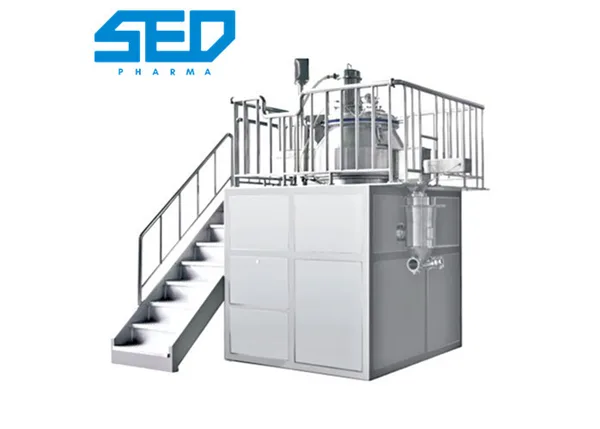

Touch Screen Pharmaceutical Granulation Equipments Wet Powder Rapid Mixer Granulator

Touch Screen Pharmaceutical Granulation Equipments Wet Powder Rapid Mixer Granulator



Products Parameters of Mixer Granulator Machine​

Total Volume	600L
Raw Material Input Volume	150-440L
Raw Material Input Capacity	75-220kgs/batch(material density 0.5g)
Operating time	Mixing:8min Granulation:15-20min/batch
Size of the finished granule	Φ0.14-Φ1.5mm(12mesh-100mesh)
Mixing Speed	20-200rpm
Mixing power	30kw
Granulation Speed	50-3000rpm
Granulation power	11kw
Air compressor	0.5m³ 0.7Mpa (prepared by buyer)
Inlet of cooling water and compressed air	Φ10mm
Height of the output	1150mm
Dimension	2980×1200×2500mm
Weight	2200kg



Working Principles of Mixer Granulator Machine



In the cylinder (conical) container, powder materials and binder will be mixed into moist soft materials by the mixed paddles at the bottom. Then they will be cutted into uniform wet-particles by the side high-speed smash paddles



Purpose of Mixer Granulator Machine



The granulator of wet particles of powder injection binder is in the fields of pharmacy, food, chemical industry, etc.



Feature and simple introduce:

• It is the structure of horizontal cylinder (cone).
• Full sealed driving shaft, to use water when cleaning.
• Fluidization granulation, the finished granules are similar to roundness with good liquidity.
• Compared with traditional process, it can reduce 25% binder and the dry time can be shortened.
• Each batch of materials will be dry-mixed for 2 minutes and be granulated for 1-4 minutes. Compared with traditional process, it has improved by 4-5 times.
• All the processes of dry-mixing & wet-mixing & granulating are finished in a closed vessel. So that it has reduced the process and also compiles with GMP standard.
• Whole operation has the strict safety precautions.

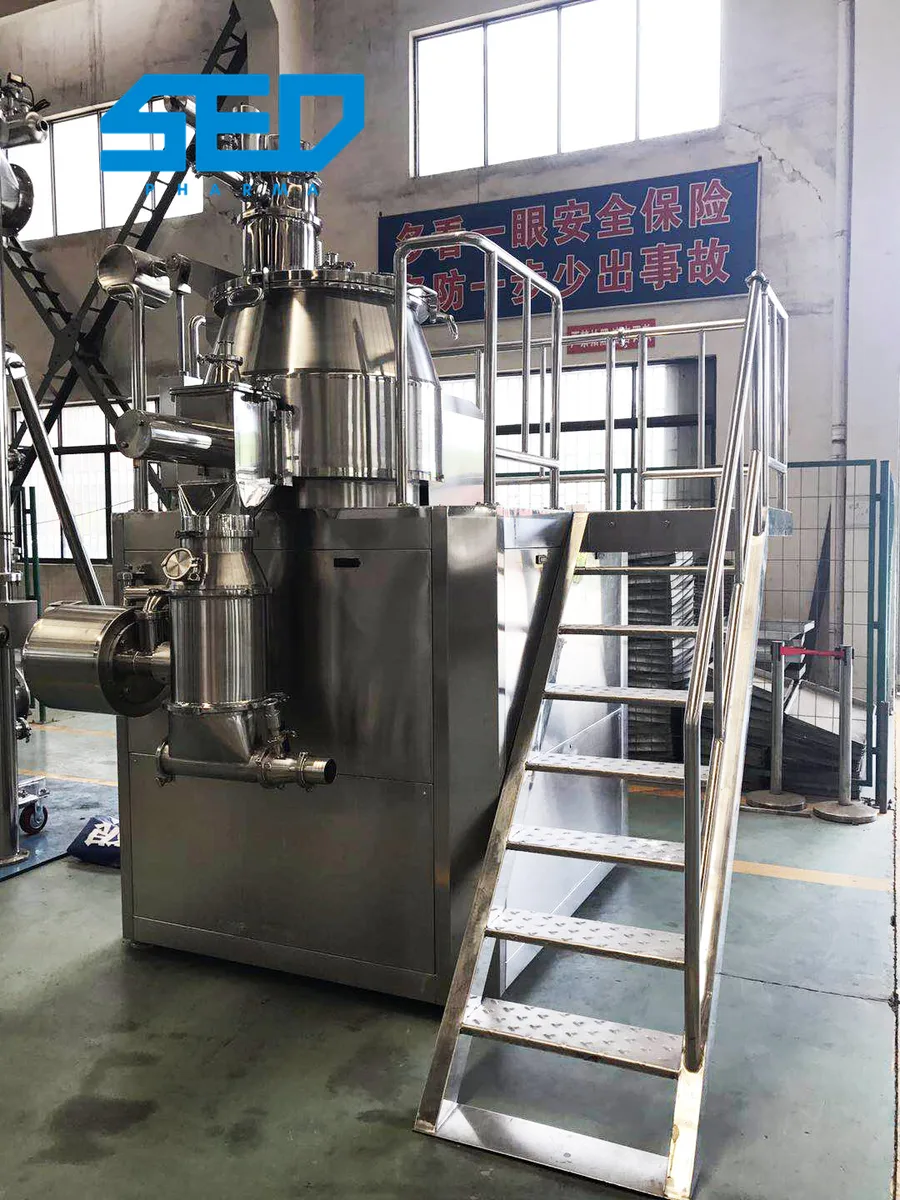

Products Show of Mixer Granulator Machine



Application of Mixer Granulator Machine

High-speed mixing granulator is an efficient equipment that can mix different powder materials and granulate granules in one program. Widely used in medicine, food, chemical and other industries.
